Body Control Module

Body Control Module:

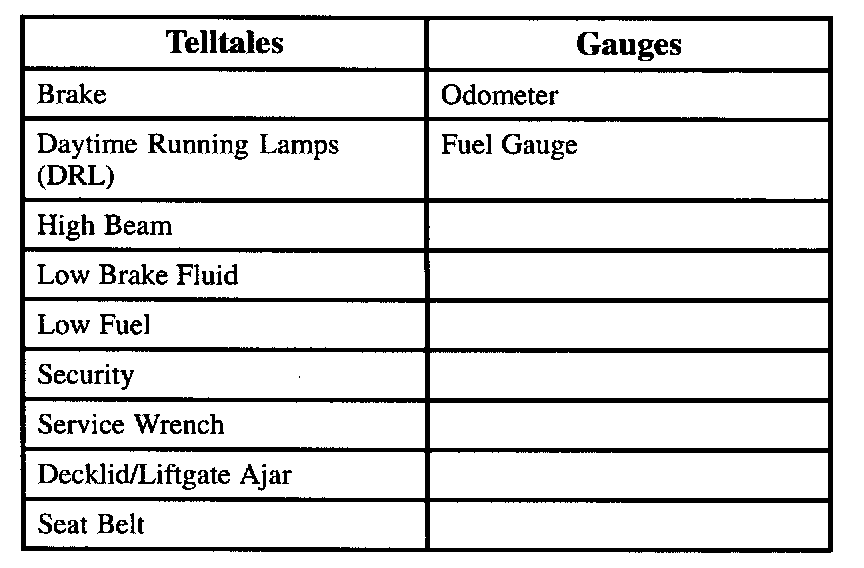

The Body Control Module (BCM) controls many of the functions of the instrument cluster. The cluster receives commands from the BCM which in turn receives information from other modules as well as from direct wires to components. The BCM controls the following functions of the cluster:
