Fog Lamp Assembly
REMOVAL 1.

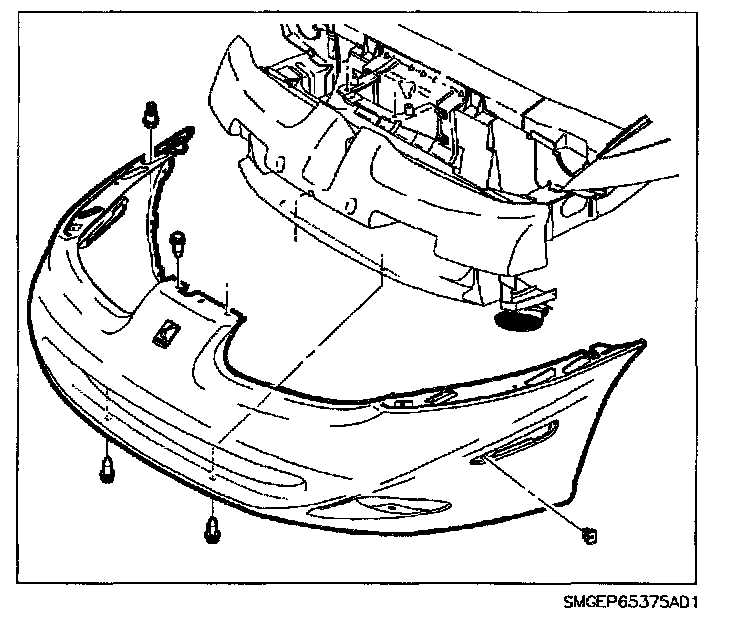

Remove front fascia.
2.
Remove bulb.
3.

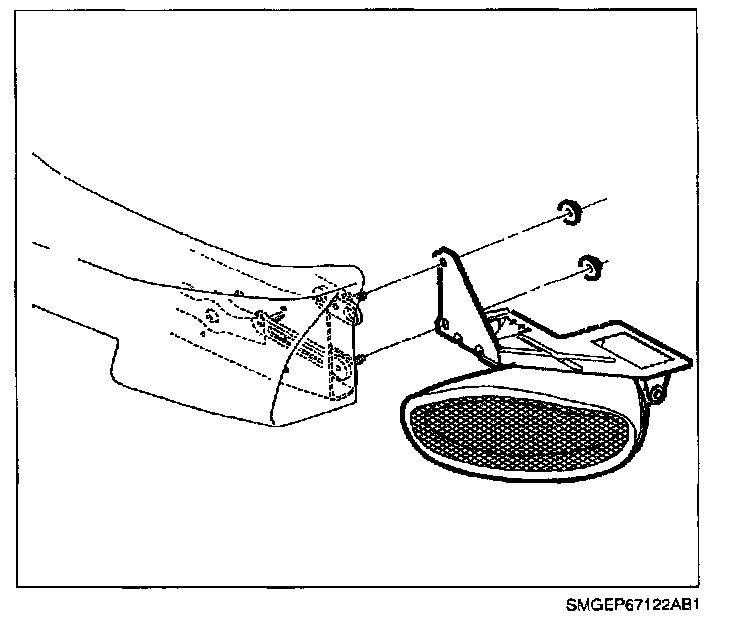

Remove retaining bolts from front impact beam to fog lamp bracket.
INSTALLATION 1.
Install retaining bolts from fog lamp bracket to impact beam.
Torque:
Fog Lamp Bracket-to-Impact Beam Bolts: 30 N.m (22 ft-lbs) 2.
Install bulb.
3.
Install front fascia.
4.
Aim fog lamp.
