Ignition Switch Continuity

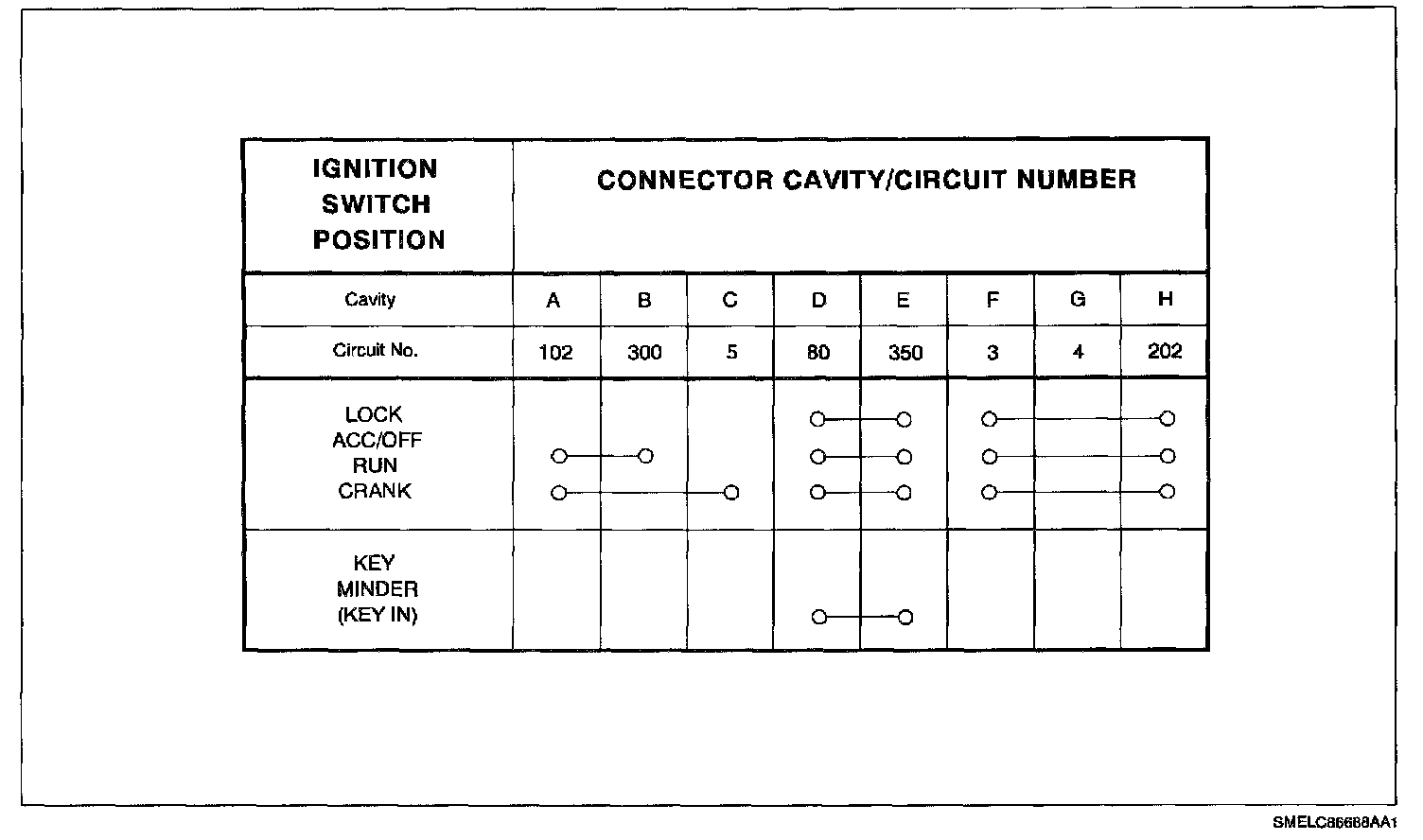

Ignition Switch Continuity:

This symbol indicates that the pins referenced are connected (less than 1 ohm resistance) when the switch is in the position indicated.

IMPORTANT: The key minder circuit is open until the ignition switch is cycled.
