Ignition Lock Cylinder

REMOVAL

IMPORTANT: If ignition lock cylinder is replaced, Passlock relearn procedure must be performed. Accessories and Optional Equipment/Antitheft and Alarm Systems/Service and Repair/ Service and Repair

1. Disconnect negative battery cable.
2. Remove lock cylinder bezel from steering column shroud by carefully prying with thin bladed screwdriver.




3. Remove shroud fasteners and remove steering column upper and lower shroud panels.
4. Insert key into ignition lock cylinder and rotate to RUN position. Then rotate the ignition cylinder back to the ACC position.

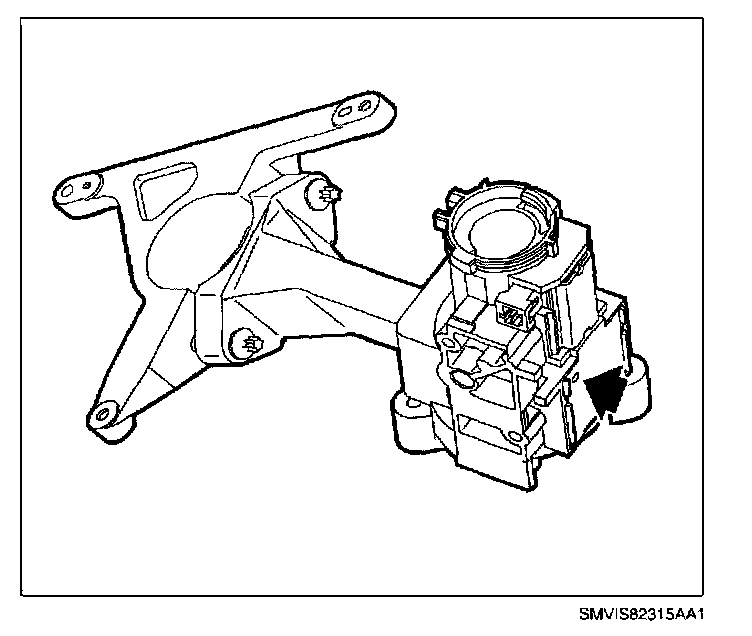

5. Depress the locking button on the side of ignition module assembly with a thin pick-type tool. Slide lock cylinder assembly from ignition module.

INSTALLATION

IMPORTANT: Actuator blade within ignition module housing must be in the ACC position to install lock cylinder assembly. If rotated, replace it to the ACC position using needle nose pliers.




1. Insert key into ignition lock cylinder and install into ignition module.




2. Install steering column upper and lower shroud panels and shroud fasteners.
3. Install lock cylinder bezel.
4. Reconnect negative battery cable.
