Assembly

WHEEL BEARING/HUB ASSEMBLY

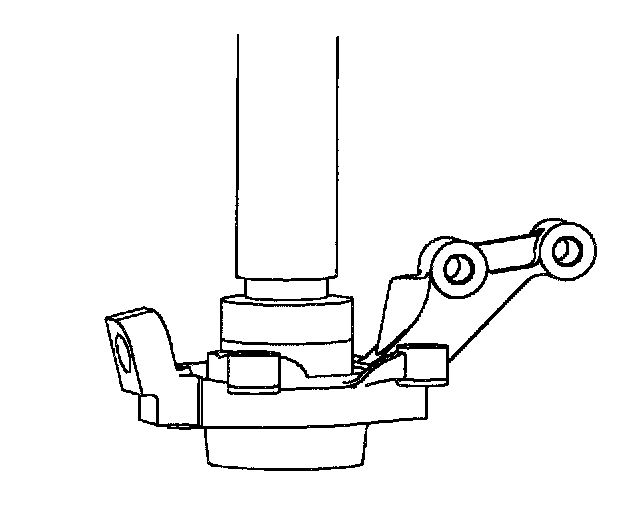

1. Using large driver (part number 6), press in new bearing, as shown in illustration, until seated.

IMPORTANT: When performing this operation, the small driver (part number 7) must be used to support the bearing inner race with its small (pilot) side facing towards the press, away from bearing.

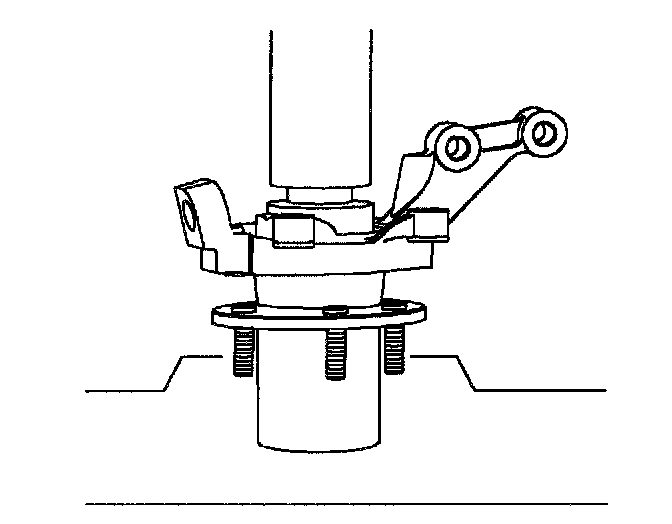

2. Press in hub as shown in illustration, using part numbers:
- 5 - knuckle support tube
- 7 - small driver

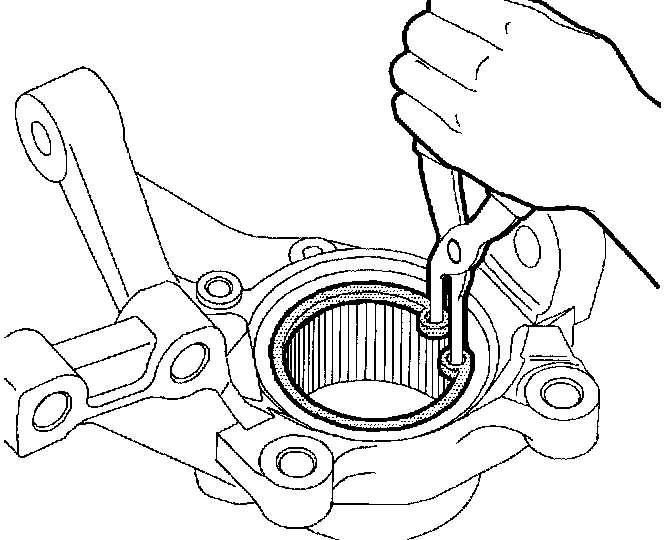

3. Install bearing retainer snap ring.
4. Install ABS wheel speed sensor into knuckle with fastener.
Torque: ABS Wheel Speed Sensor: 8 Nm (6 ft. lbs.)
