Input Shaft Clearance Measurement

1. Assemble input shaft with 5th gear bearing, 5th gear, 5th reverse synchronizer assembly, reverse cone, and washer. Use old nut and torque.
Torque:
Input Shaft Clamp Nut: 150 Nm (111 ft. lbs.)
2. Measure clearance between 5th drive gear and 5th gear thrust washer.
Clearance between 5th drive gear and 5th gear thrust washer Standard: 0.20 - 0.35 mm (0.008 - 0.014 inch)

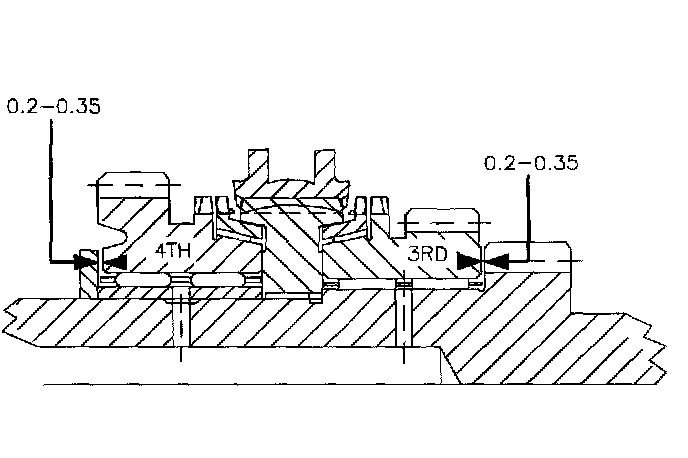

3. Measure clearance between 4th drive gear and 4th gear thrust washer.
Clearance between 4th drive gear and 4th gear thrust washer Standard: 0.20 - 0.35 mm (0.008 - 0.014 inch)
4. Measure clearance between 3rd drive gear and input shaft
Clearance between 3rd drive gear and input shaft Standard: 0.20 - 0.35 mm (0.008 - 0.014 inch)
