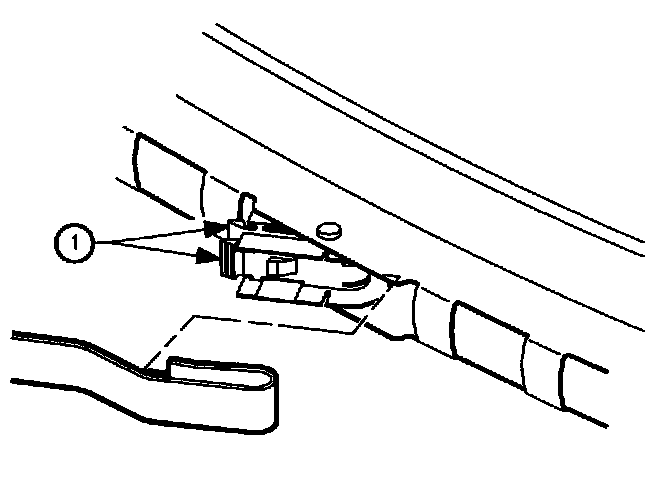

Wiper Blade - (1ST Design)

(1) Tabs

IMPORTANT: Right and left wiper blades are different lengths. Make sure to check that longer blade is installed into left-hand side.

Removal




1. Lift wiper arm away from glass.
2. Pinch wiper blade attachment clip together and slide blade out of wiper arm hook.

Installation




1. Position wiper arm blade into wiper arm hook.
2. Slide blade assembly into hook until it clicks into position.
