Passenger Compartment Air Filter Replacement

PASSENGER COMPARTMENT AIR FILLER REPLACEMENT
The passenger compartment air filter traps most of the pollen from the air entering your vehicle. Like your vehicle's engine air filter, it will need to be changed periodically.
A substantial reduction in air flow indicates that the filter needs to be replaced.

Here's how to replace the passenger compartment air filter.
1. Open the hood of your vehicle. The access panel for the passenger compartment air filter is located in the cowl grill, at the base of the windshield.






2. Use a flat-blade screwdriver to remove push pin fasteners from filter access panel.






3. Remove any debris in the filter area such as leaves or pine needles.

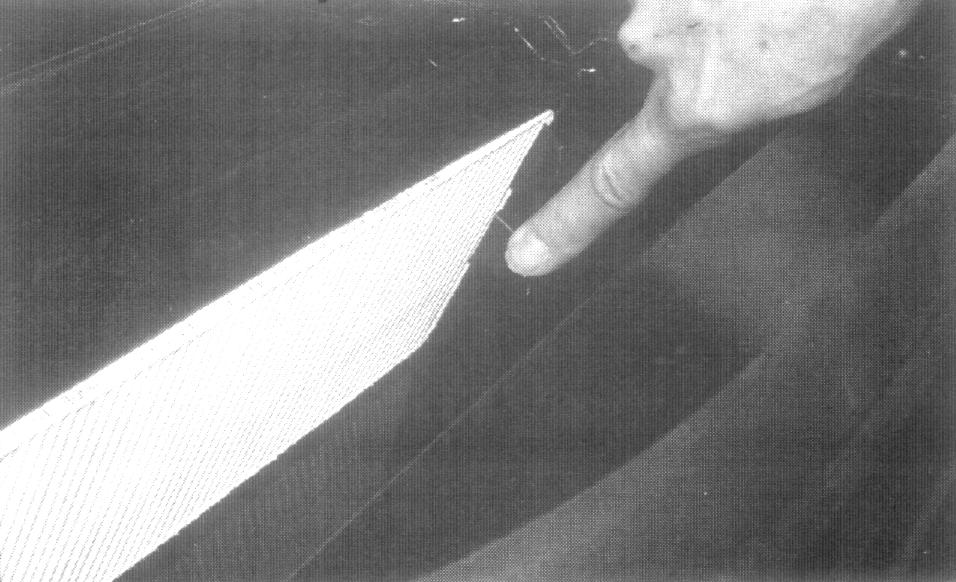

4. Depress retaining tab outward and remove filter.






5. Install the new filter, noting the airflow direction arrow on the filter and snap into place.
6. Install filter access panel with push pin fasteners.
