Front Side Door Window Channel Retainer Replacement

Front Side Door Window Channel Retainer Replacement

Removal Procedure

1. Remove the front door window run channel. Refer to Front Side Door Window Channel Replacement (Front Side Door Window Channel Replacement).
2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Early Production) (Front Side Door Trim Panel Replacement (Early Production)).




3. Partially remove the water deflector in the front lower corner to access the lower front glass channel bolts.

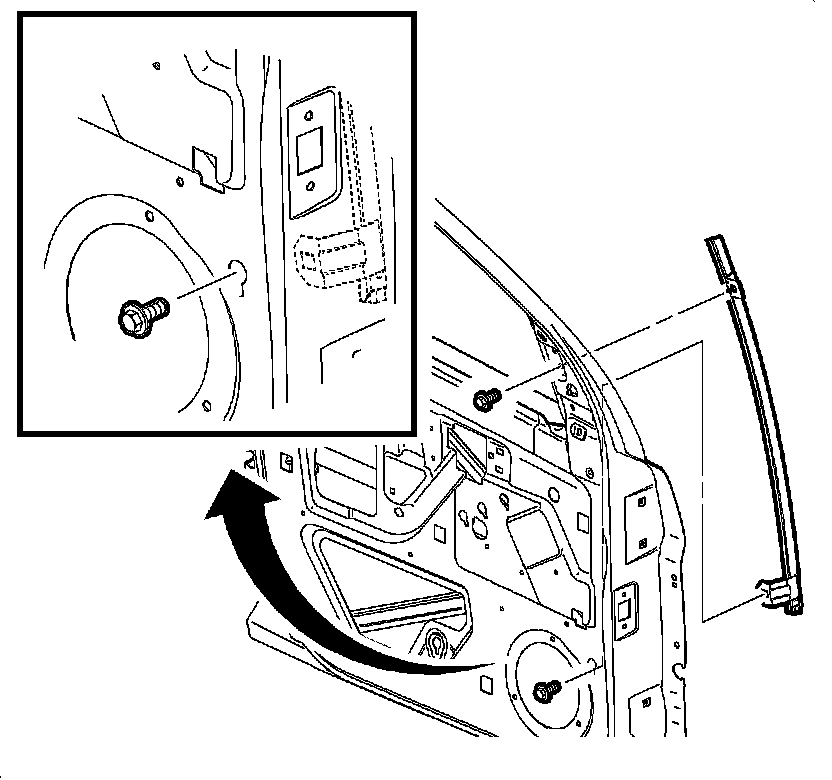

4. Remove the front glass run channel bolts and remove the channel.





Important: After drilling out the rivets, remove all rivet debris from the door.

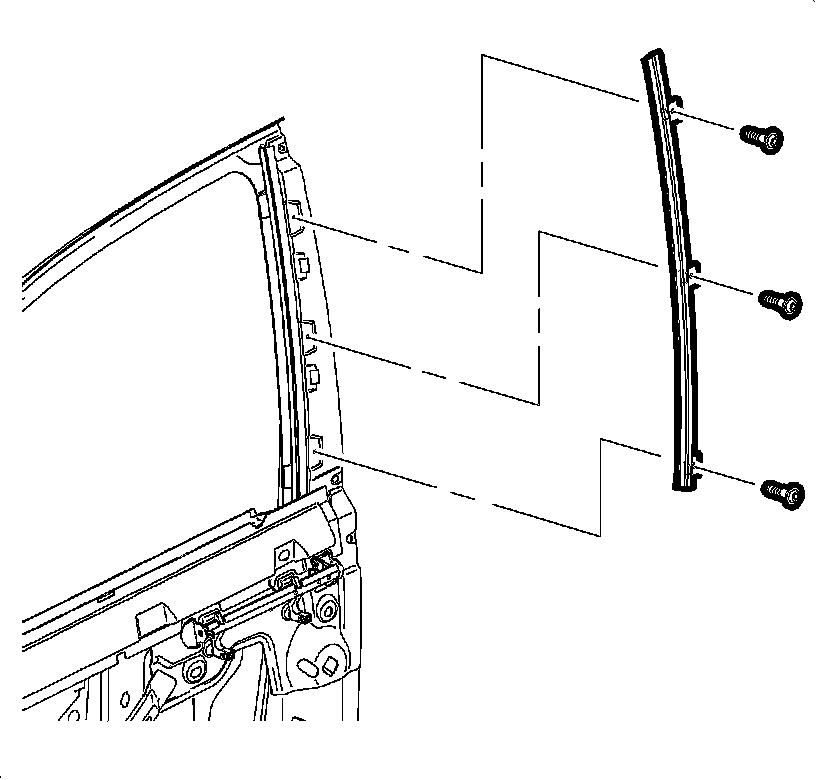

5. Drill out the rivets in the rear glass run channel and remove the channel.

Installation Procedure




1. Install the rear glass run channel with rivets.




2. Position the front glass run channel retainer.

Notice: Refer to Fastener Notice (Fastener Notice) in Cautions and Notices.

3. Install the retainer bolts.

Tighten the bolts to 10 Nm (89 lb in).

4. Install the portion of the water deflector that was loosened to gain access to the bolts.
5. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Early Production) (Front Side Door Trim Panel Replacement (Early Production)).
6. Install the front door window run channel. Refer to Front Side Door Window Channel Replacement (Front Side Door Window Channel Replacement).
