MOTOR REPLACEMENT - POWER MIRROR

REMOVAL PROCEDURE
1. Remove the mirror face.
2. Remove the mirror.

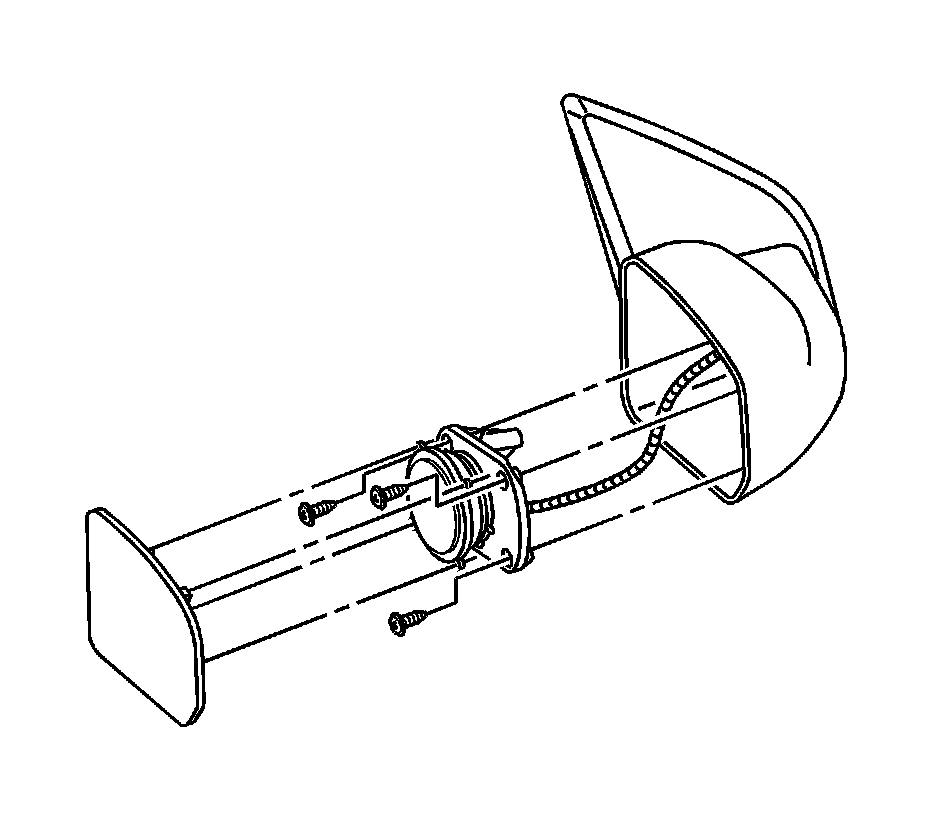

3. Remove the mirror motor attaching screws.
4. Remove the mirror motor from the mirror housing.

INSTALLATION PROCEDURE




1. Position the mirror motor to the mirror housing.
2. Route the electrical connector through the door opening.
3. Install the mirror motor attaching screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the motor attaching screws to 3 N.m (27 lb in).

4. Install the mirror face.
