33. Front Differential Carrier Installation

Front Differential Carrier Installation

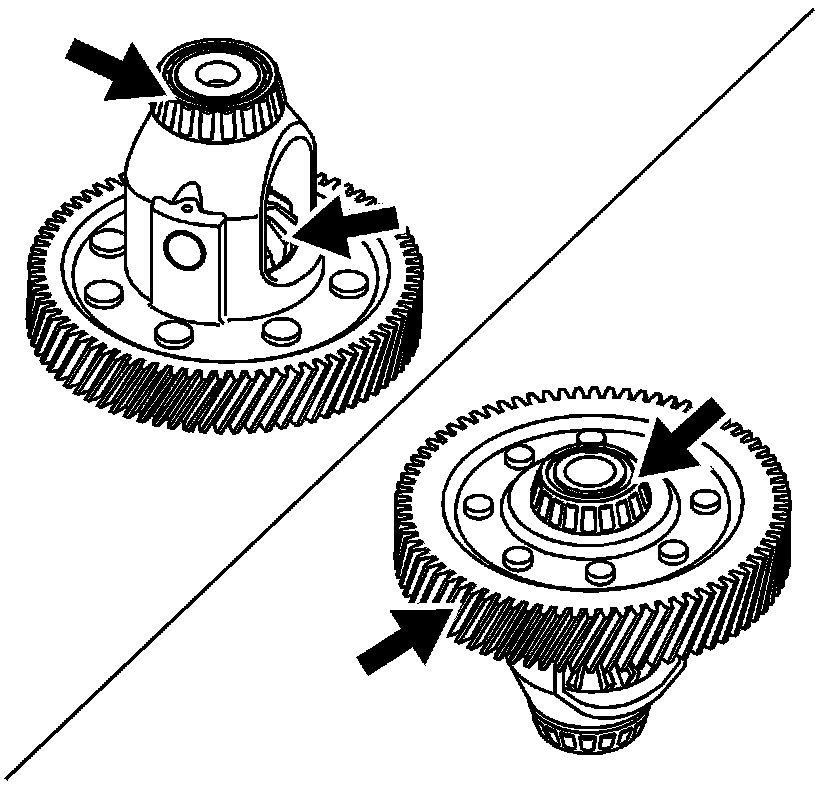

1. Inspect the front differential side gears and pinion gears for excessive wear. If wear is found, refer to the Front Differential Carrier Disassemble.
2. Inspect the bearing assemblies on the front differential carrier for damage or wear. If a bearing assembly needs replacement, refer to the Front Differential Carrier Bearing and Cup Replacement.
3. Inspect the front differential carrier bearing cup on the transmission case assembly for damage or wear. If the bearing cup needs replacement, refer to the Front Differential Carrier Bearing and Cup Replacement.
4. Inspect the front differential carrier bearing cup on the torque converter and differential housing assembly for damage or wear. If the bearing cup needs replacement, refer to the Front Differential Carrier Bearing and Cup Replacement.





5. Install the front differential carrier assembly on the transmission case assembly.
