Transmission Pressure Test Port: Service and Repair


Oil Pressure Test Plug Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Important: Transmission fluid may leak from the test hole when the plug is removed.

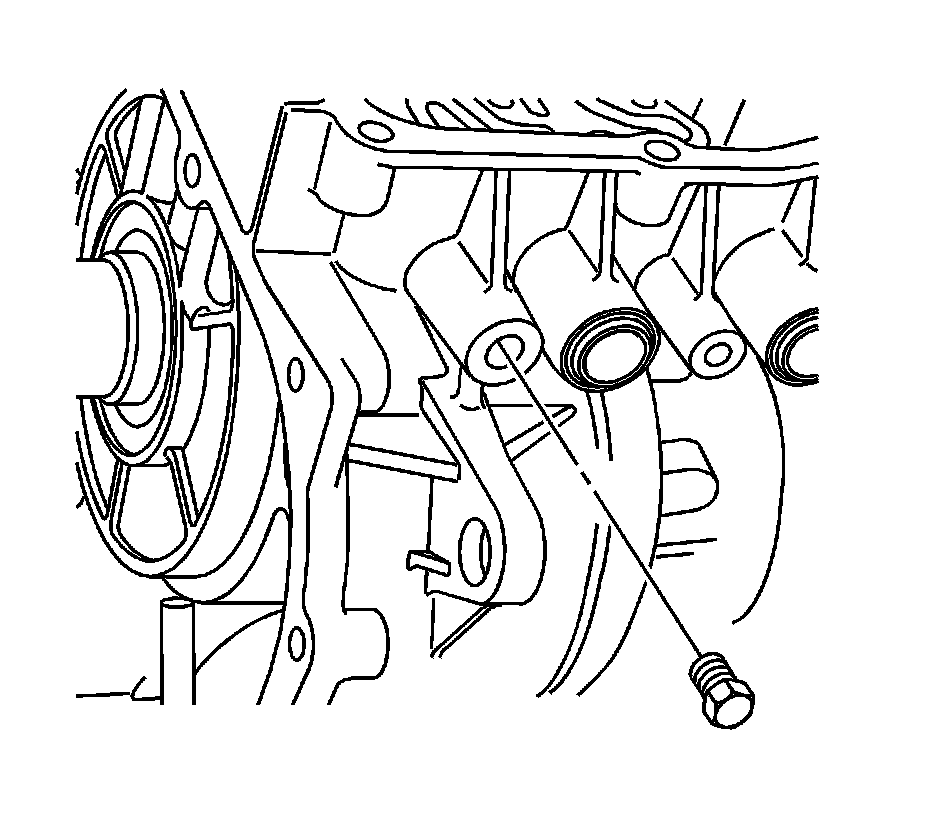

Remove the transmission oil pressure test plug.
3. Clean and inspect the test hole for dirt or debris.

Installation Procedure





1. Inspect the transmission oil pressure test plug for damage. Replace if necessary.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the transmission oil pressure test plug.
Tighten the plug to 9 Nm (80 inch lbs.).

3. Important: A new lower tube assembly drain plug will be required when checking the transmission fluid level.

Verify the transmission fluid level.
