Rear Seat Bolsters

REMOVAL

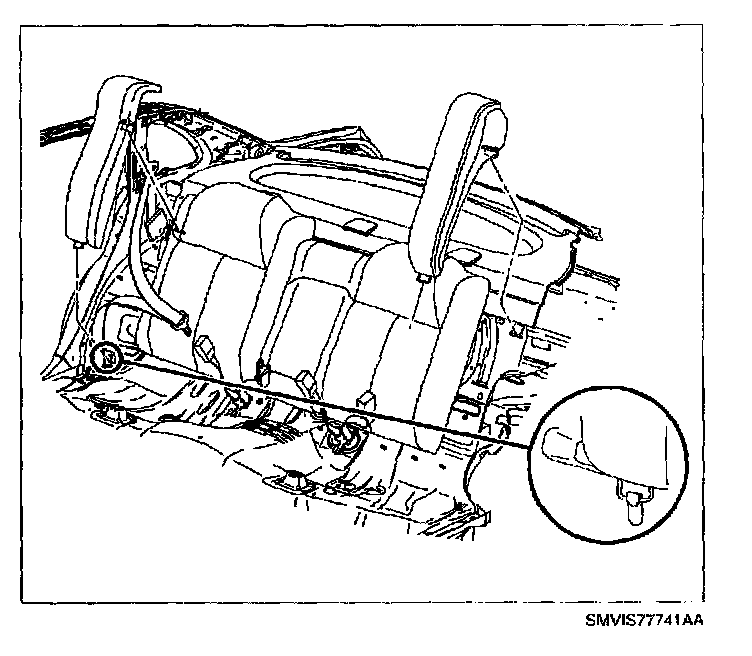

1. Reach down into outer corner of rear seat cushion to expose bolster retaining tab.
2. Bend tab upward.
3. Starting at bottom, pull forward to disengage bolster from retaining tab then pull upward to disengage upper attachment.

INSTALLATION

CAUTION: MAKE SURE REAR SEAT SHOULDER BELT IS NOT CAUGHT BEHIND BOLSTER WHEN INSTALLING BOLSTER.




1. Position rear seat bolster onto upper bolster attachment.
2. Push down on bolster to engage upper attachment and install over retaining tab.
3. Bend lower retaining tab over bolster wire frame at rear seat cushion location.
