43. Engine Block Assemble

ENGINE BLOCK ASSEMBLE (UNIT REPAIR) INSTALLATION





1. Apply gasket paste Permatex 56521 (or equivalent) to plug.
2. Install drain plug in water pump.
3. Install coolant jacket plugs.
Torque:
Cylinder Head Oil Gallery Plug: 35 Nm (26 ft. lbs.)
4. Apply gasket paste Permatex 56521 (or equivalent) to rear oil passage plugs.
5. Install rear oil passage plugs.
Torque:
Oil Gallery Plug (Rear): 60 Nm (44 ft. lbs.)
6. Apply gasket paste Permatex 56521 (or equivalent) to oil passage plug.
7. Install oil passage plugs.
Torque:
Oil Gallery Plug: 35 Nm (26 ft. lbs.)





8. Install crankshaft position sensor and bolt.
Torque:
Crankshaft Position Sensor Bolt: 10 Nm (89 inch lbs.)





9. Install oil pressure switch.
Torque:
Oil Pressure Switch: 10 Nm (89 inch lbs.)

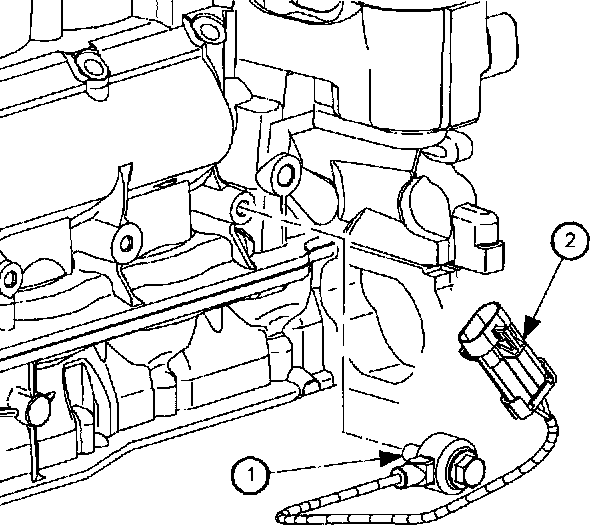

10. Install knock sensor and bolt.
Torque:
Knock Sensor Bolt: 25 Nm (18 ft. lbs.)
