I/P Air Outlets - Outer

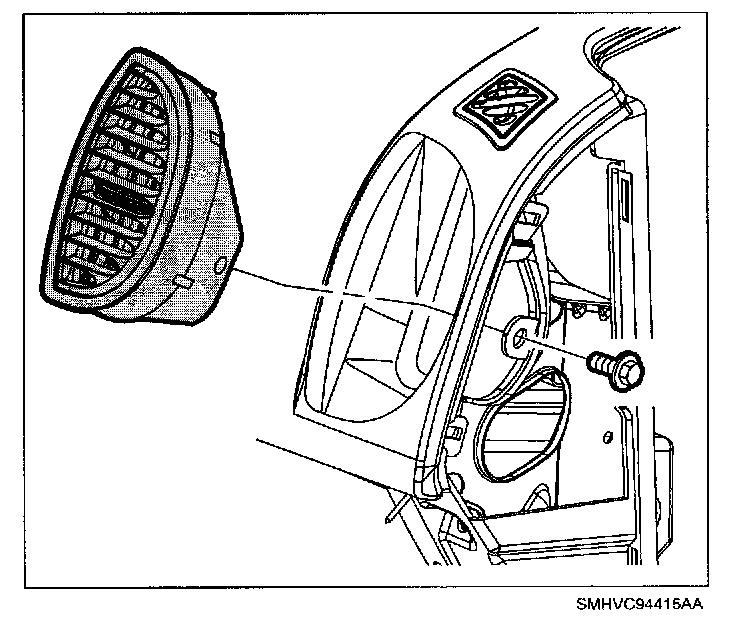

REMOVAL

IMPORTANT: Discard removed I/P outer air outlet assemblies as they cannot be reinstalled.




1. Remove deflector assembly by rotating bottom up past stops, grasping bottom of deflector and pulling rearward while rotating in to remove.
2. Remove housing using a hook type tool to release retention tabs while pulling rearward and remove.

INSTALLATION

NOTE: Do not re-use an I/P outer air outlet assembly as retention features may be damaged during removal.

IMPORTANT: Install only new outer air outlet assemblies only as a complete assembly.




Install outer outlet assembly by positioning in opening and snapping into place.
