Exhaust Manifold

Oxygen Sensor-to-Exhaust Manifold Pipe 45 Nm (33 ft. lbs.)
Down Pipe-to-Exhaust Manifold Nuts 30 Nm (22 ft. lbs.)
Exhaust Manifold Studs-to-Cylinder Head 10 Nm (89 inch lbs.)
Exhaust Manifold-to-Cylinder Head Nuts 12 Nm (9 ft. lbs.)
Exhaust Manifold-to-Cylinder Head Nuts 18 Nm (13 ft. lbs.)
Exhaust Manifold Nuts 20 Nm (15 ft. lbs.)

TORQUE SEQUENCE

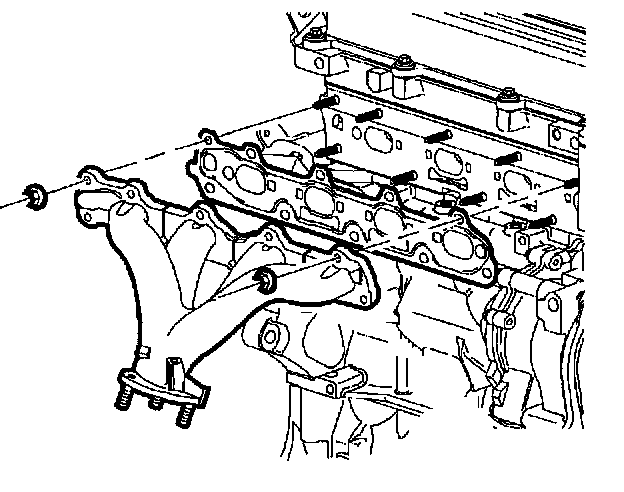

EXHAUST MANIFOLD





^ Install new exhaust manifold gasket.
^ Install exhaust manifold to cylinder head.
^ Install exhaust manifold to cylinder head retaining nuts. Tighten nuts starting from the center and working outward.
Exhaust Manifold-to-Cylinder Head Nuts: 12 Nm (9 ft. lbs.)
