Continuously Variable Transmission/Transaxle: Locations

COMPONENTS

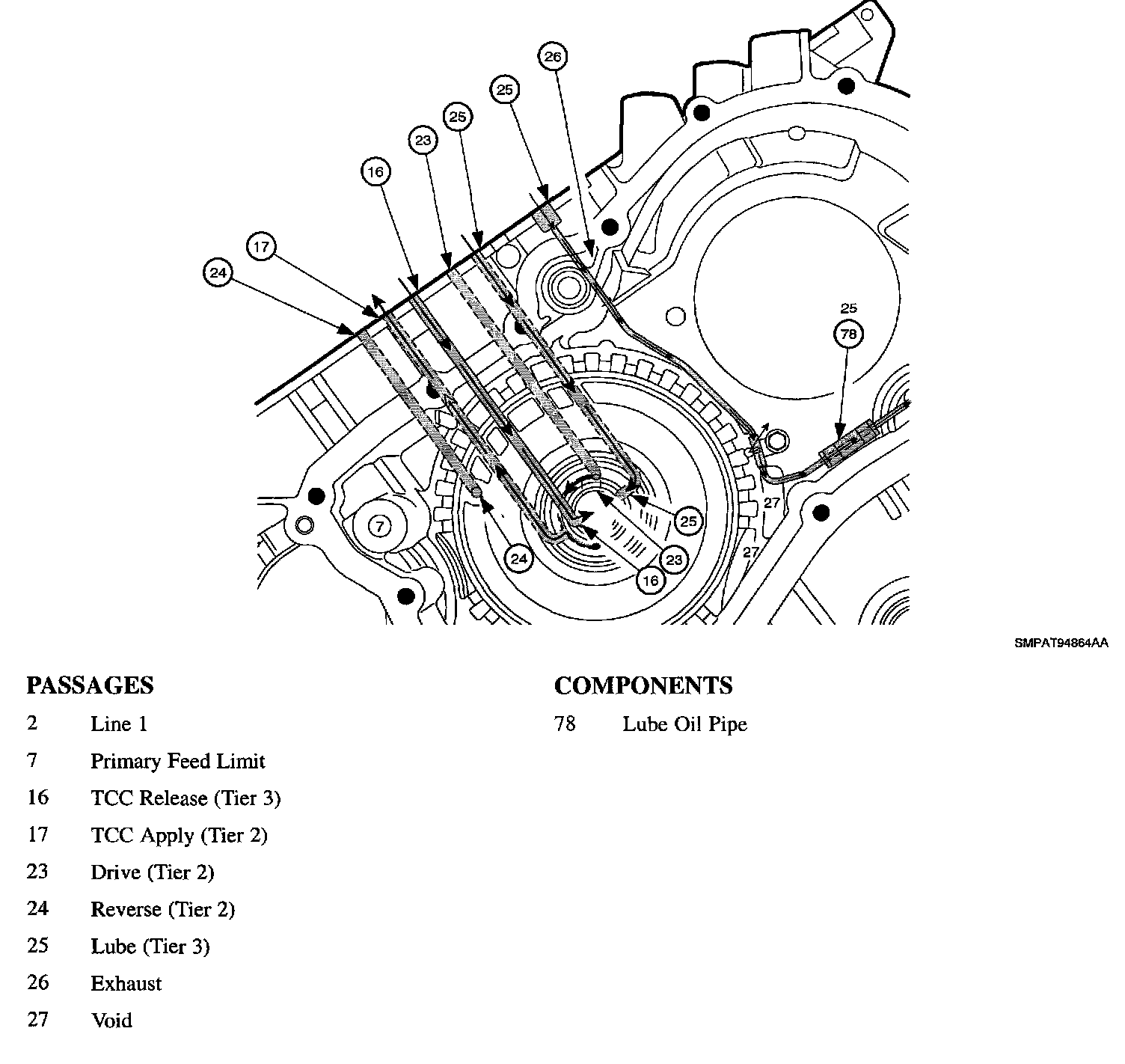

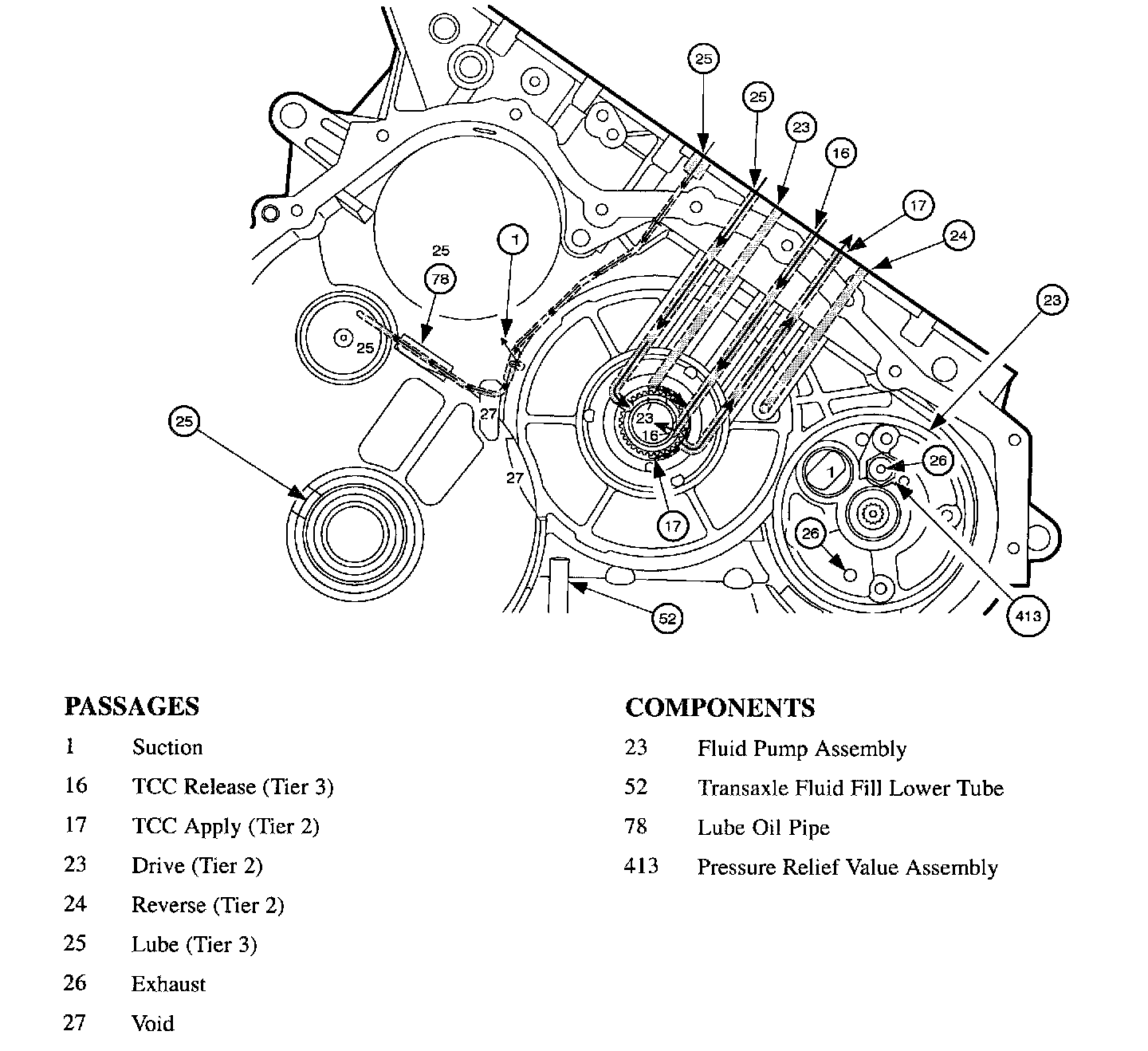

TRANSAXLE CASE ASSEMBLY (50) - TORQUE CONVERTER & DIFFERENTIAL HOUSING SIDE

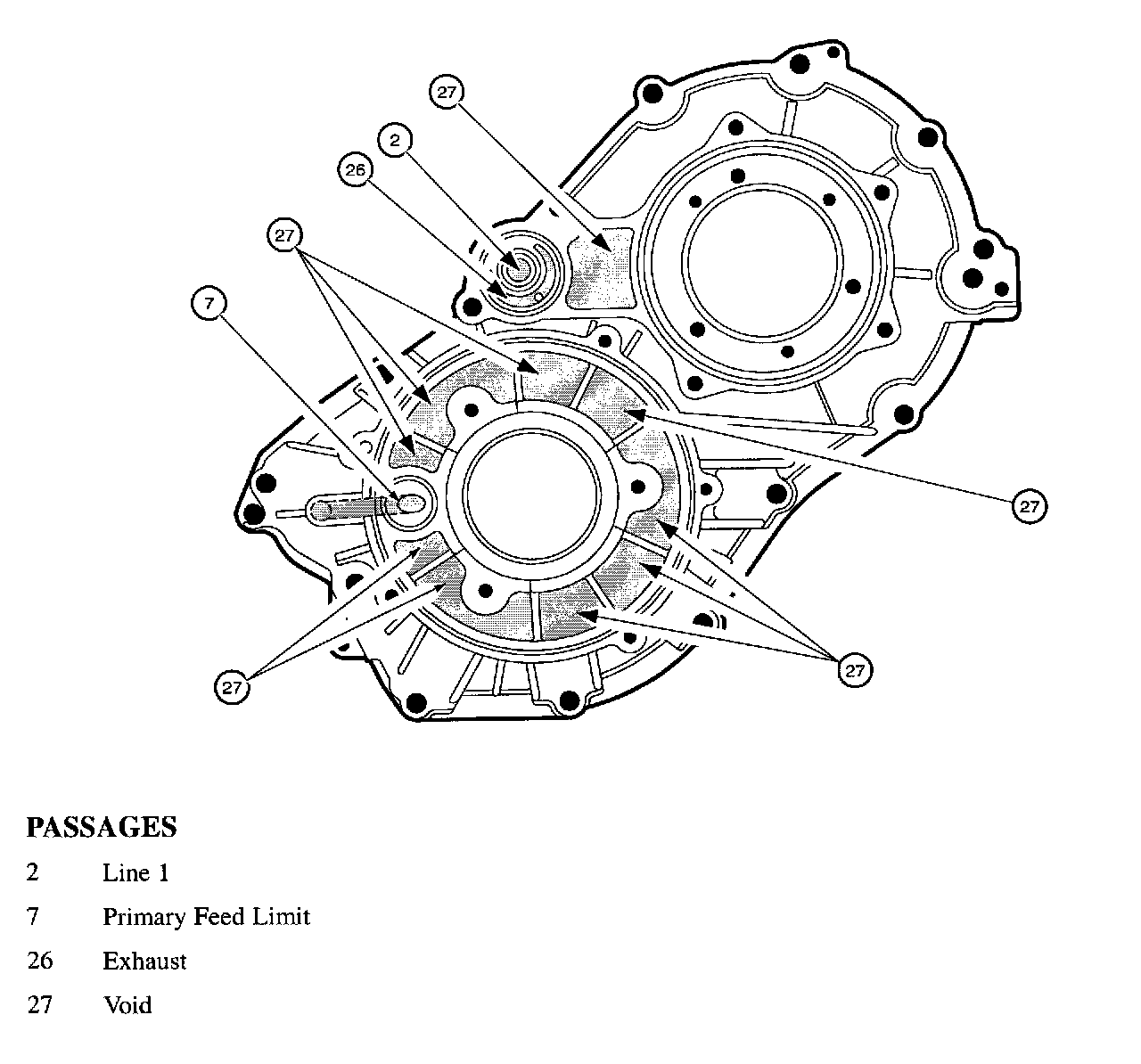

TRANSAXLE CASE ASSEMBLY (50) - CASE COVER SIDE





CASE COVER ASSEMBLY (97) - CASE ASSEMBLY SIDE





CASE COVER ASSEMBLY (97) - PULLEY OPENING COVER SIDE

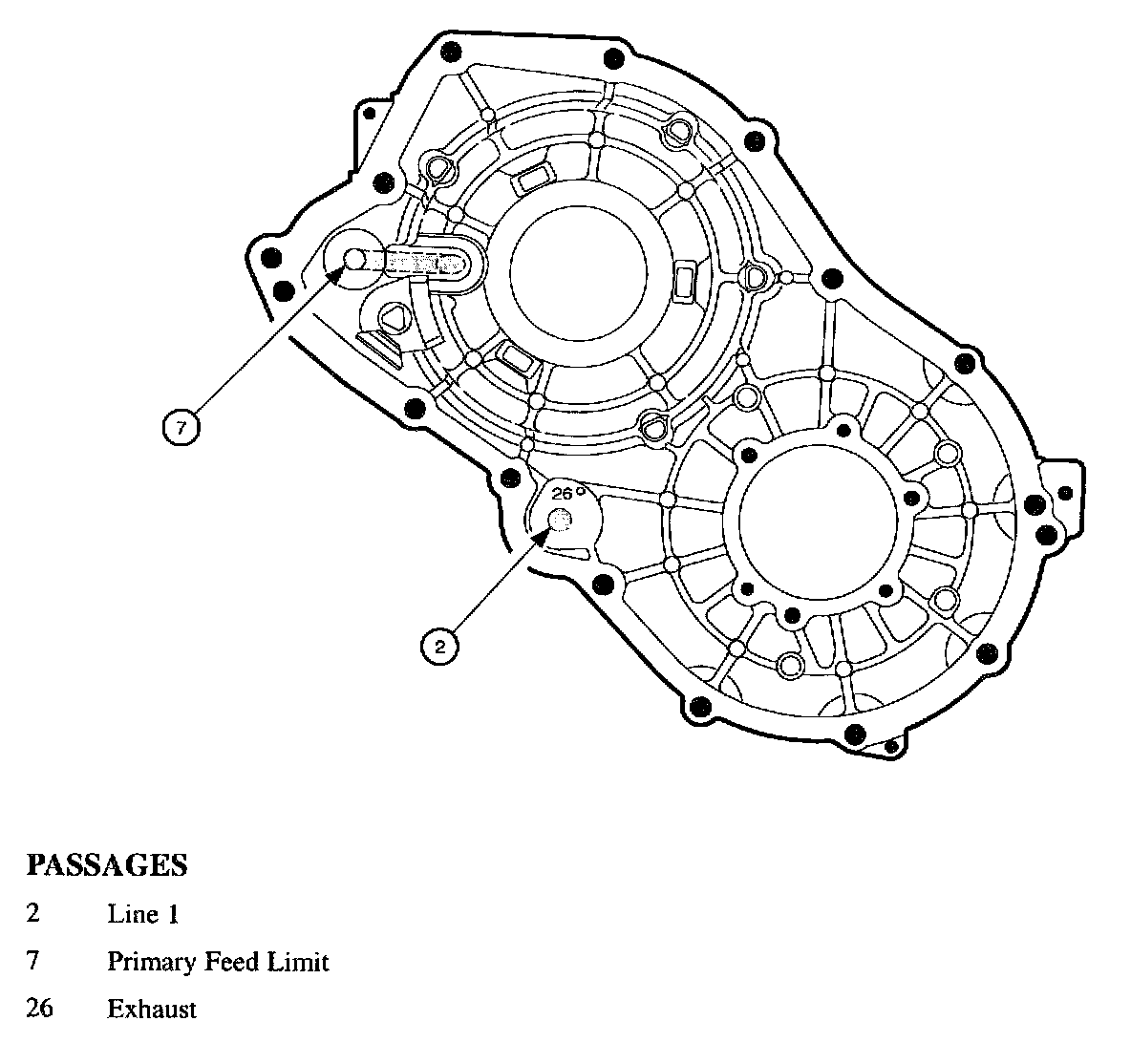

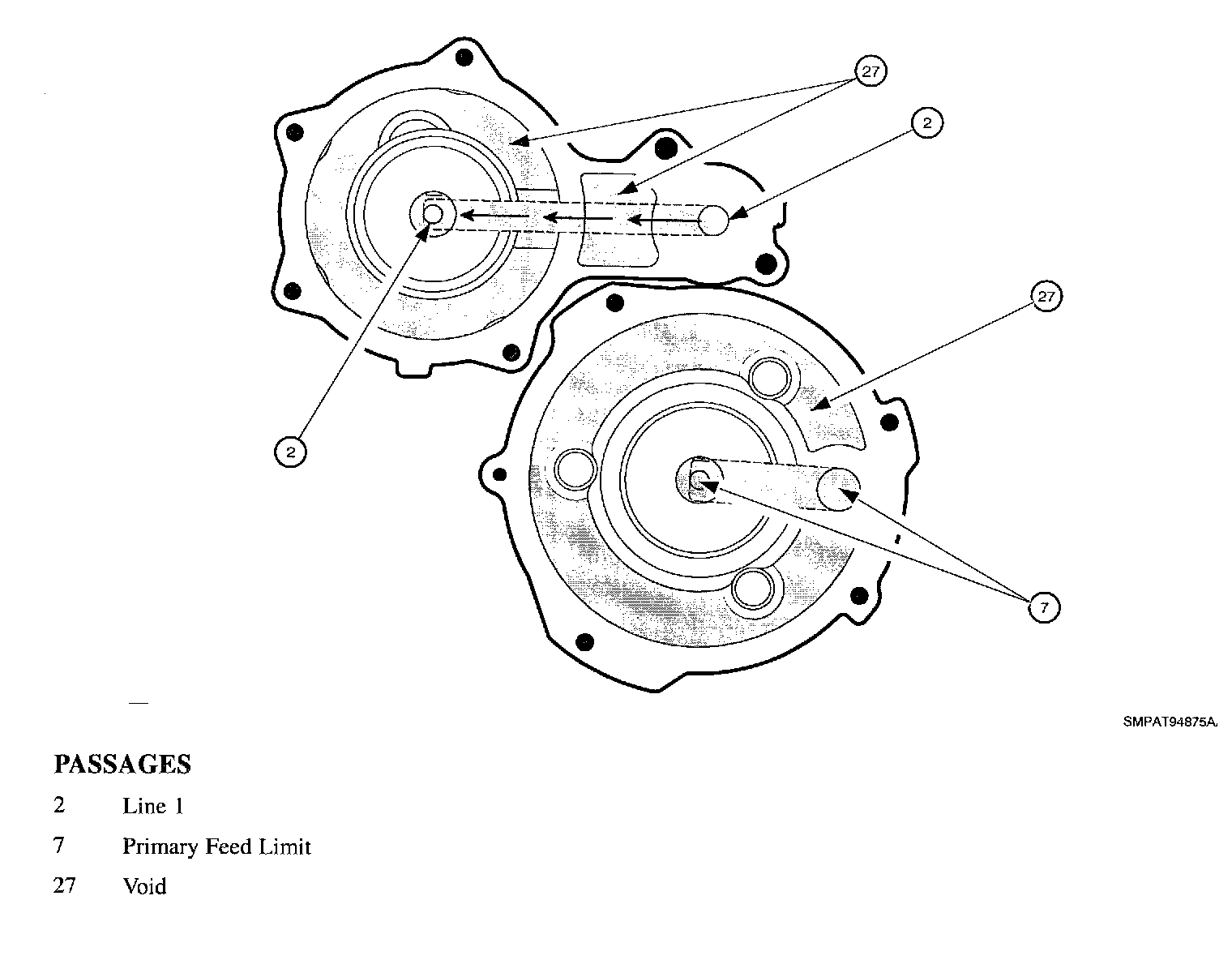

PULLEY OPENING COVERS (114 & 104) - CASE COVER SIDE

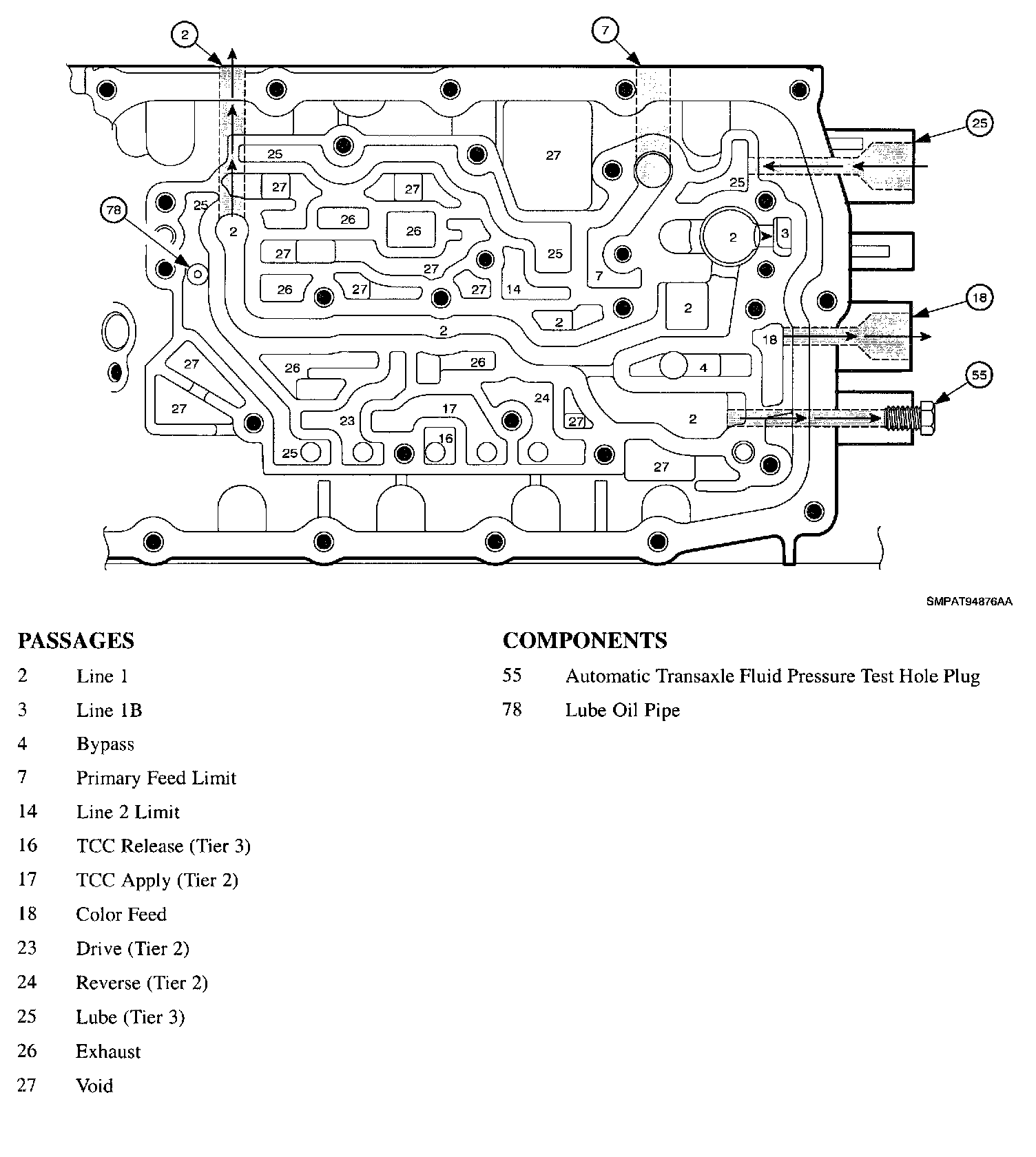

TRANSAXLE CASE ASSEMBLY (50) - CONTROL VALVE BODY ASSEMBLY SIDE

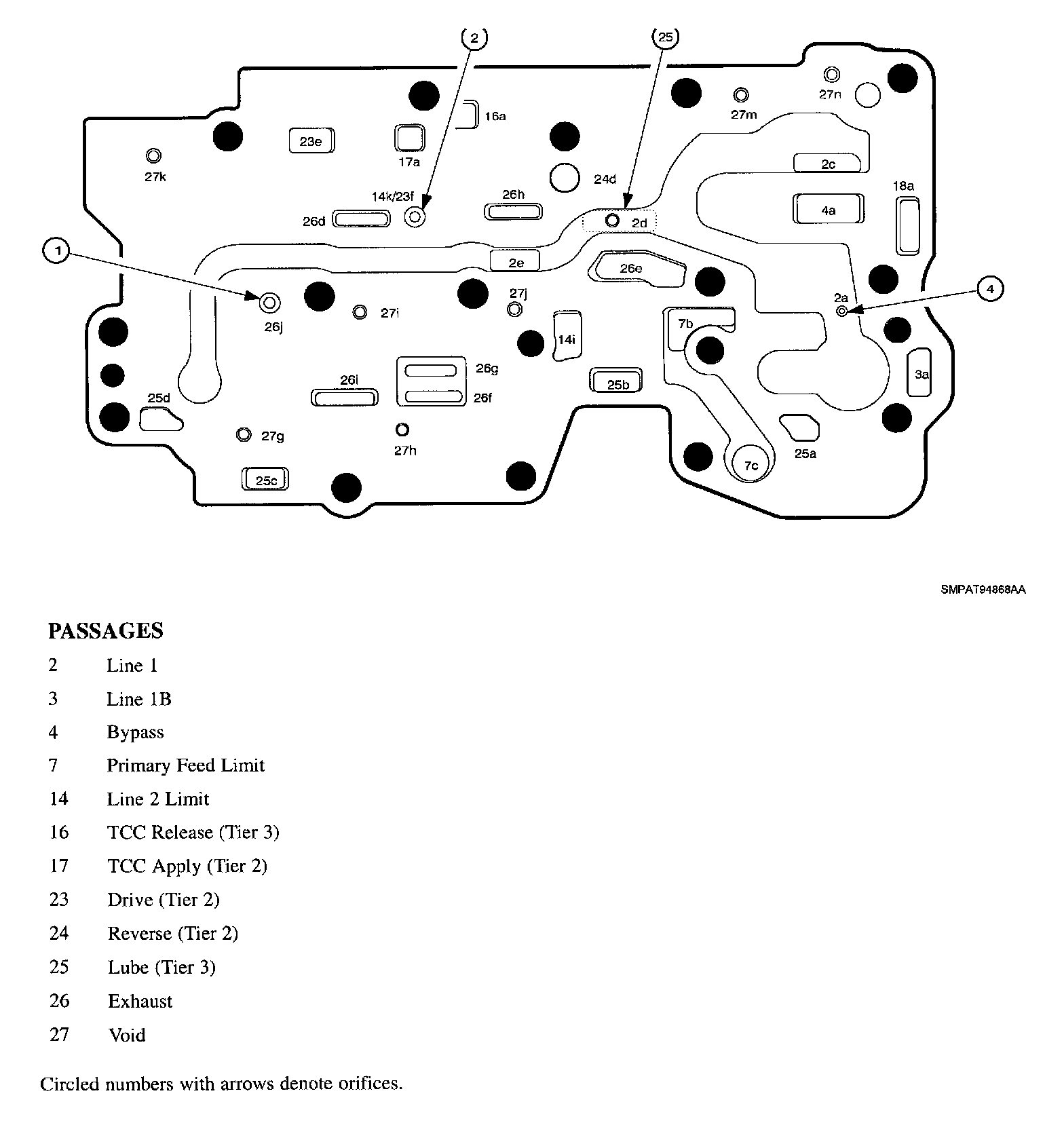

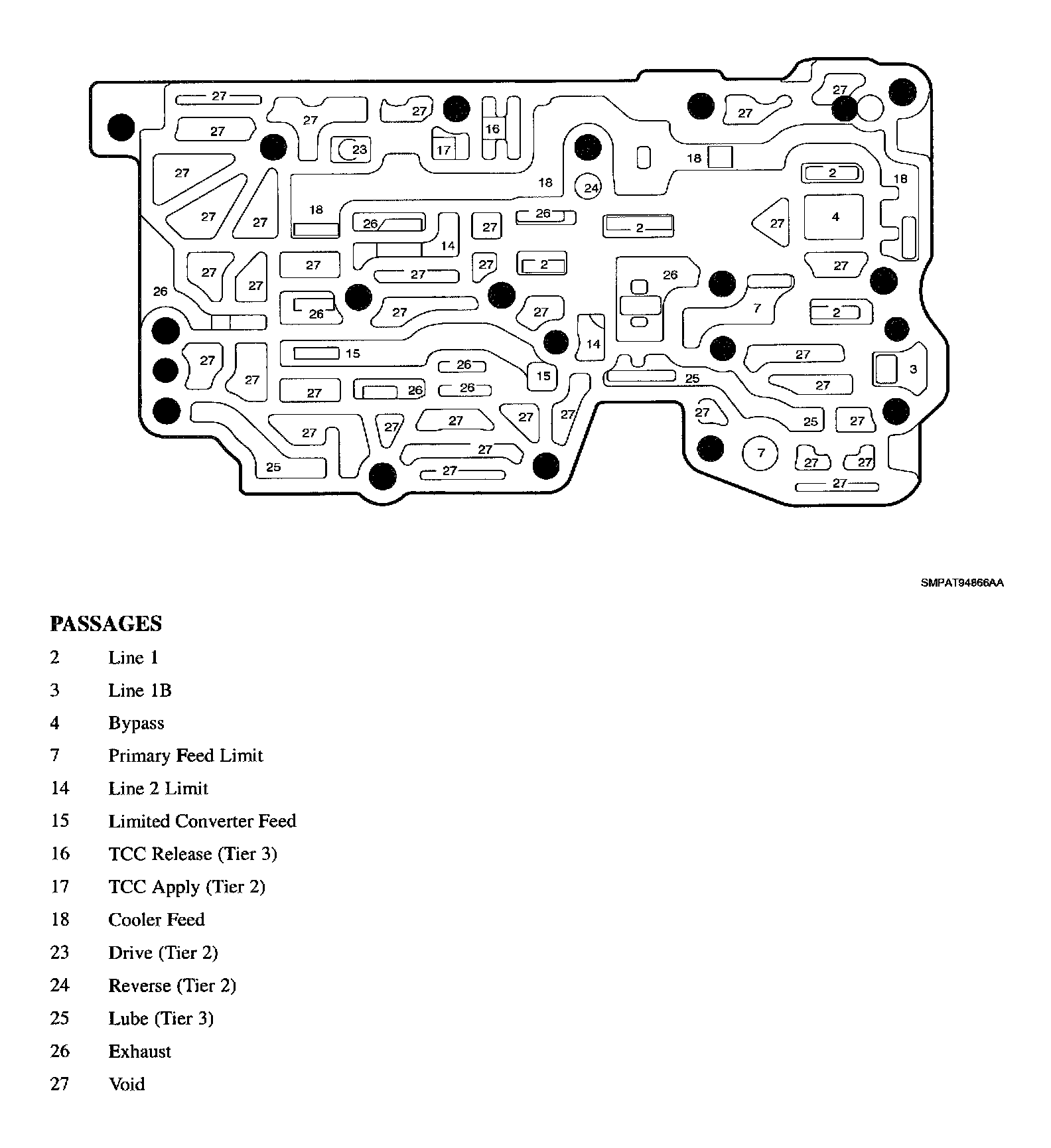

CONTROL VALVE BODY SPACER (WITH GASKET) (73) - TRANSAXLE CASE ASSEMBLY SIDE





CONTROL VALVE BODY SPACER (WITH GASKET) PLATE (73) - CONTROL VALVE BODY ASSEMBLY SIDE

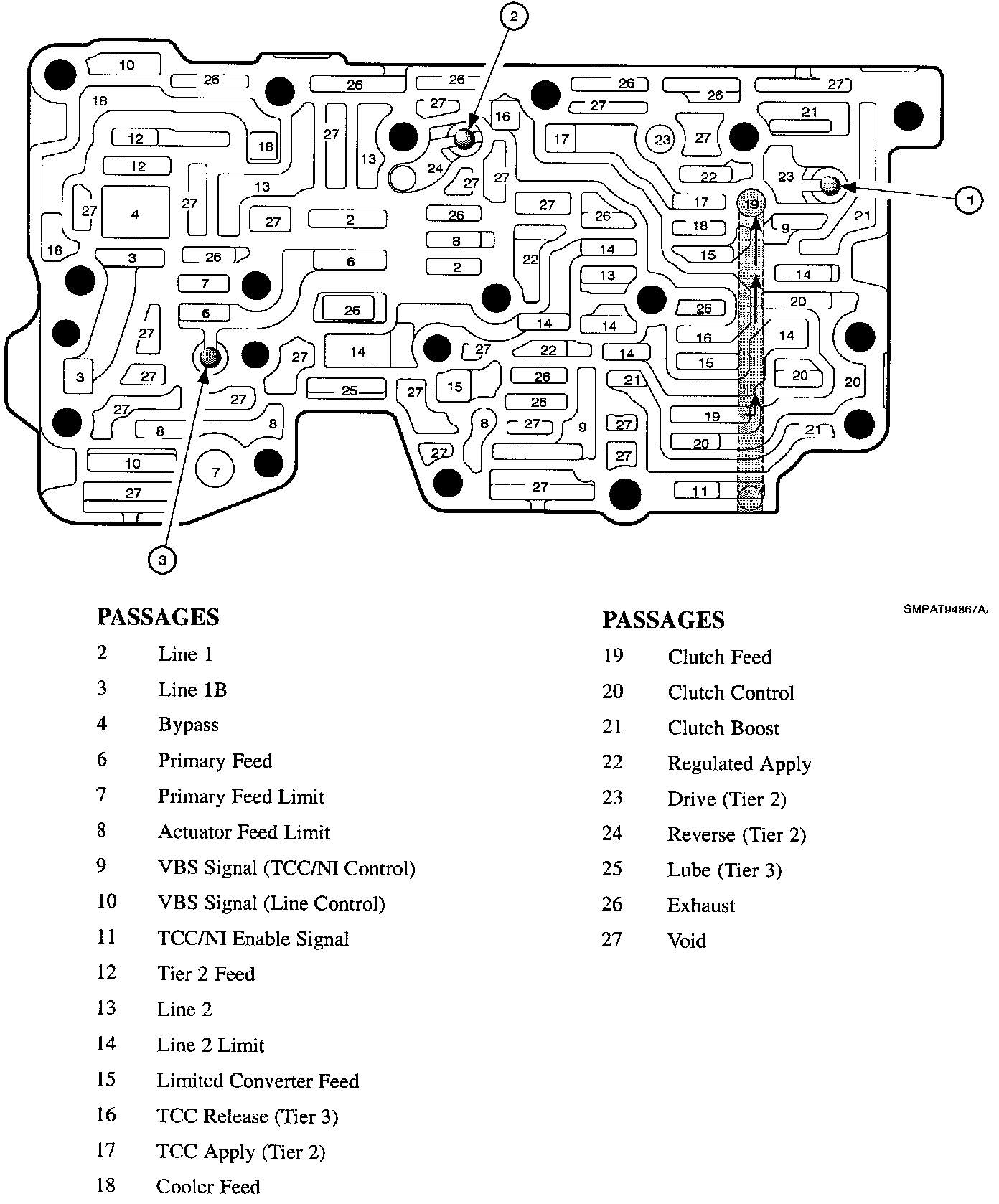

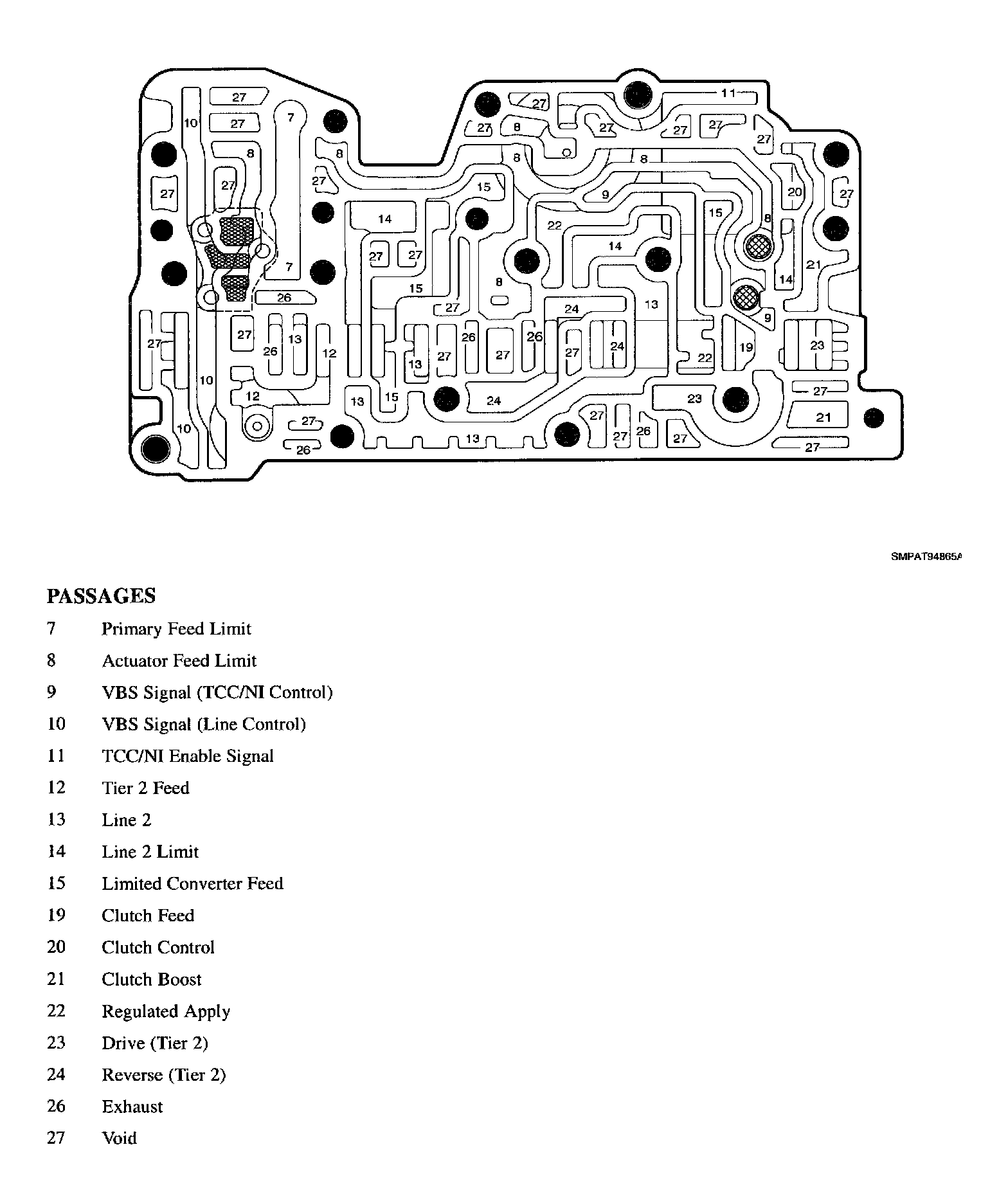

VALVE BODY ASSEMBLY (207) - TRANSAXLE COVER SIDE





CONTROL VALVE BODY ASSEMBLY (207) - CONTROL SOLENOID VALVE ASSEMBLY SIDE

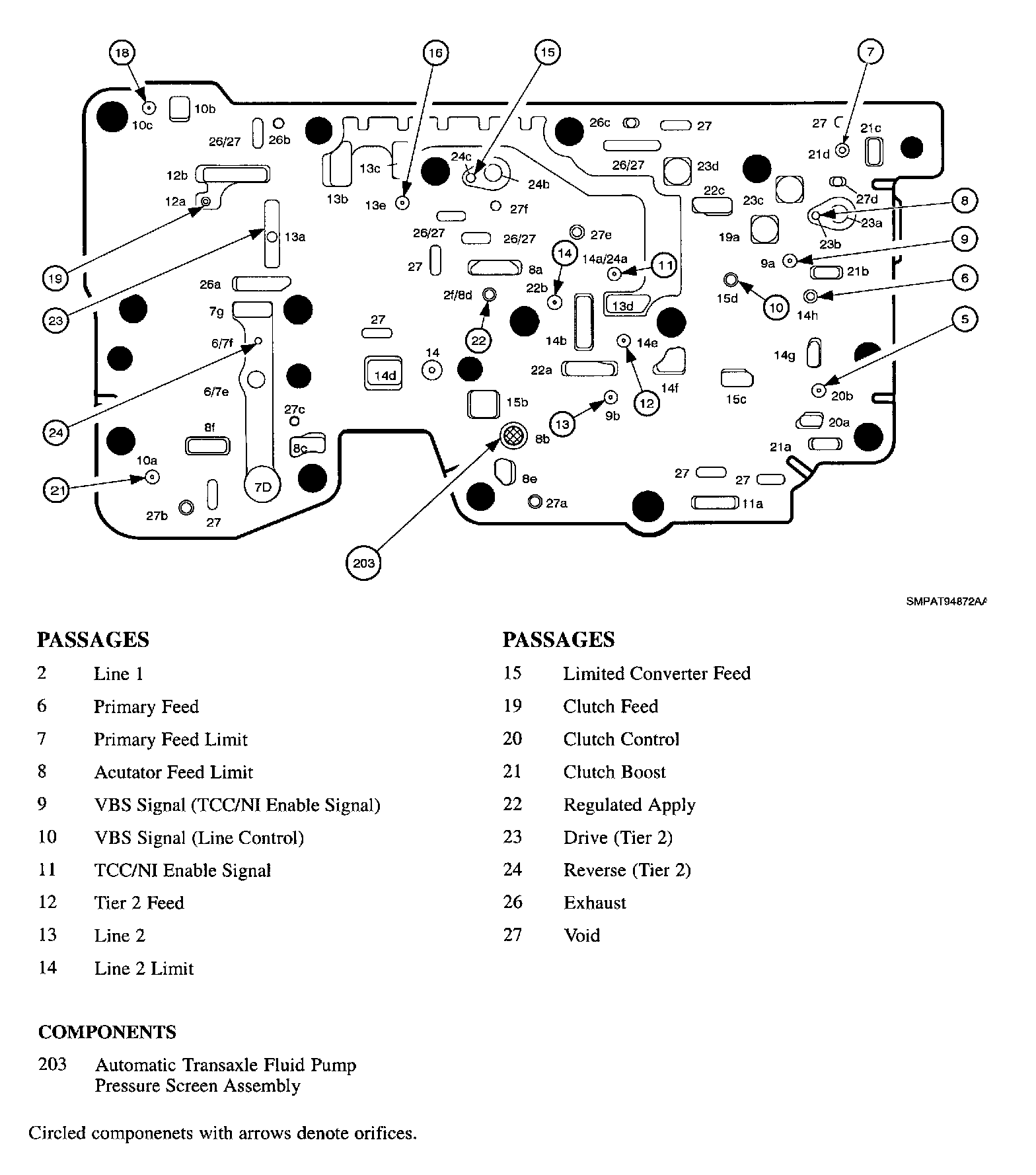

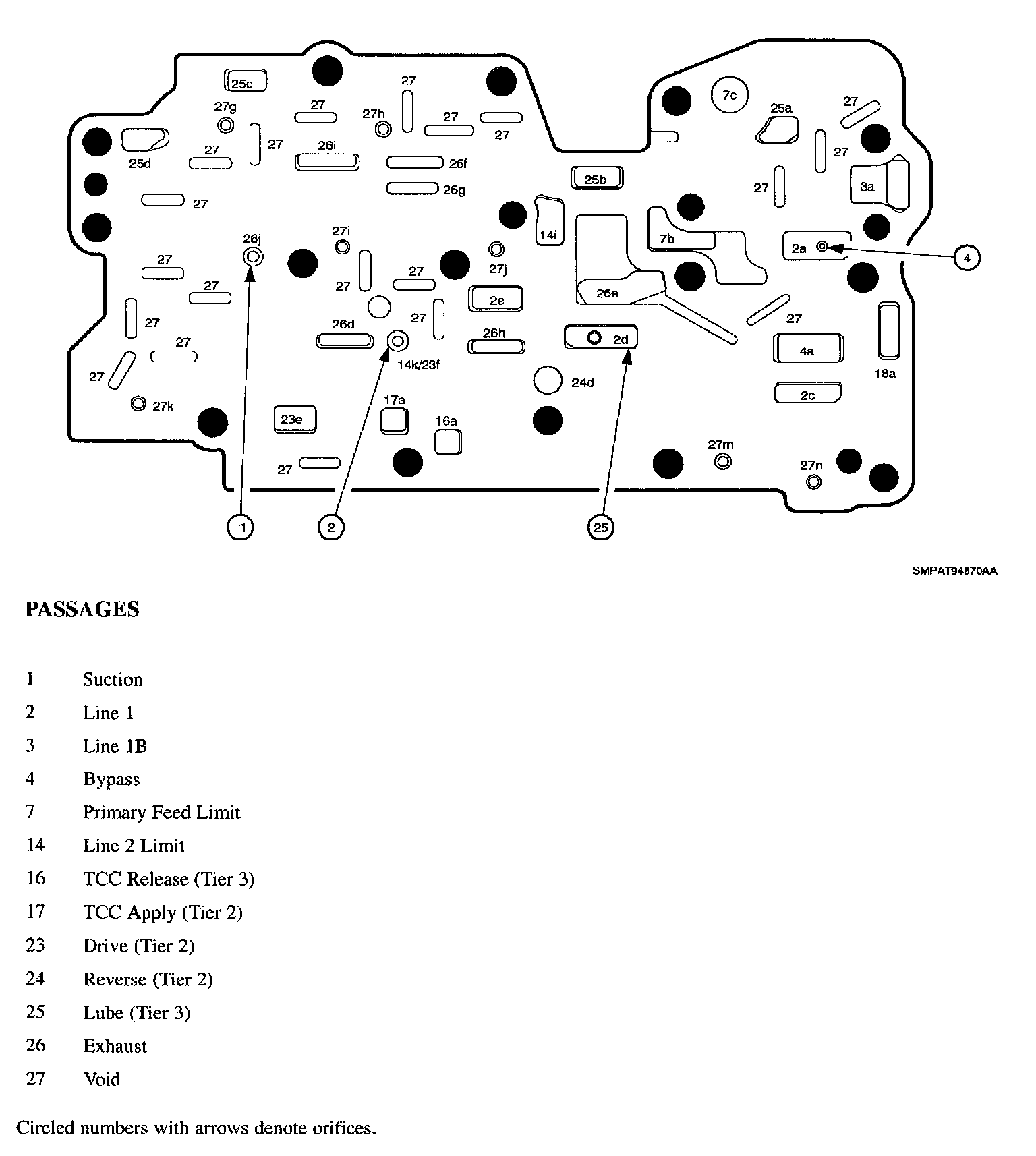

CONTROL VALVE ASSEMBLY SPACER (WITH GASKET) PLATE (204) - CONTROL VALVE BODY ASSEMBLY SIDE

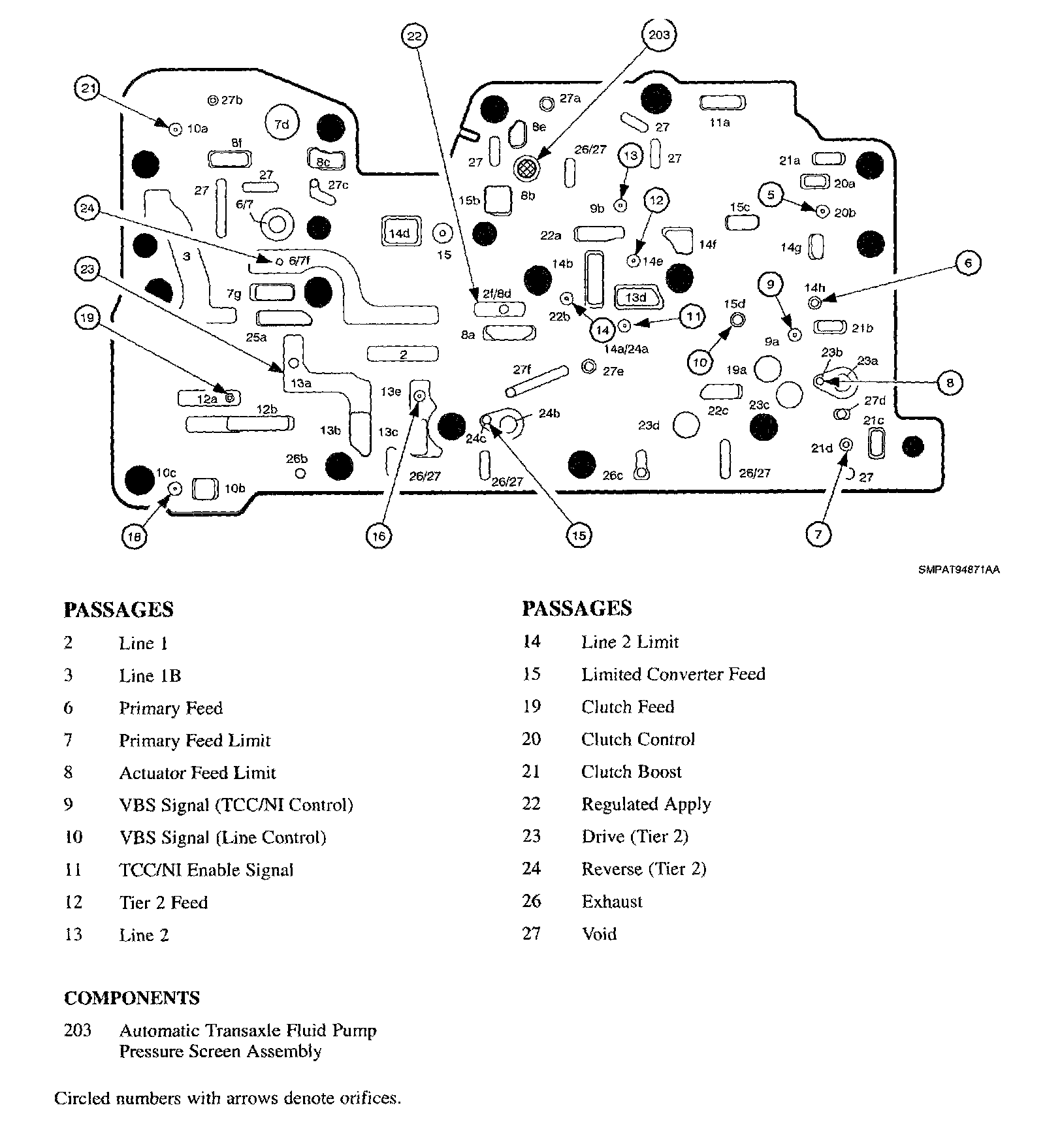

CONTROL VALVE BODY SPACER (WITH GASKET) PLATE ASSEMBLY (204) CONTROL SOLENOID VALVE ASSEMBLY SIDE





CONTROL SOLENOID VALVE ASSEMBLY (201) - CONTROL VALVE BODY ASSEMBLY SIDE
