7. Front Differential Carrier Installation

FRONT DIFFERENTIAL CARRIER INSTALLATION

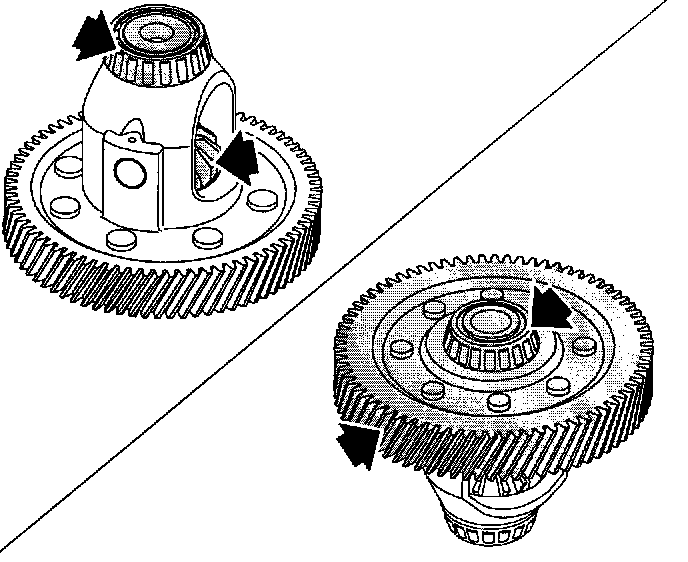

1. Inspect front differential side gears and pinion gears for excessive wear. If wear is found, refer to "Front Differential Carrier Disassemble".
2. Inspect bearing assemblies on the front differential carrier for damage or wear. If a bearing assembly needs replacement, refer to "Front Differential Carrier Bearing and Cup Replacement".
3. Inspect front differential carrier bearing cup on transaxle case assembly for damage or wear. If the bearing cup needs replacement, refer to the "Front Differential Carrier Bearing and Cup Replacement".
4. Inspect front differential carrier bearing cup on torque converter and differential housing assembly for damage or wear. If the bearing cup needs replacement, refer to the "Front Differential Carrier Bearing and Cup Replacement".

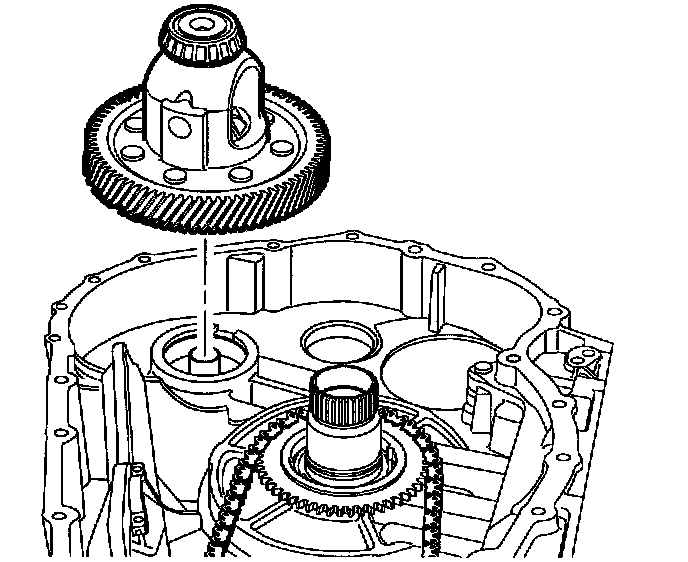

5. Install front differential carrier assembly on transaxle case assembly.
