Accelerator Controls Cable Bracket Replacement

ACCELERATOR CONTROLS CABLE BRACKET REPLACEMENT

REMOVAL PROCEDURE
1. Remove the air cleaner outlet resonator.




2. Disconnect the accelerator control cable from the throttle body and accelerator bracket.

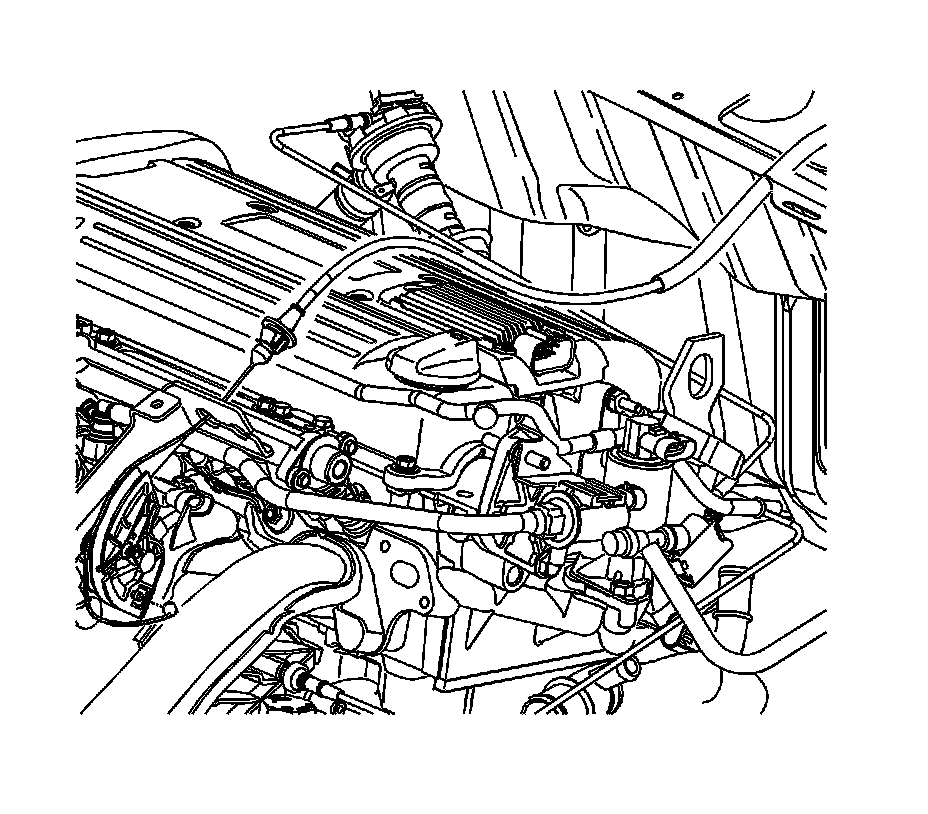

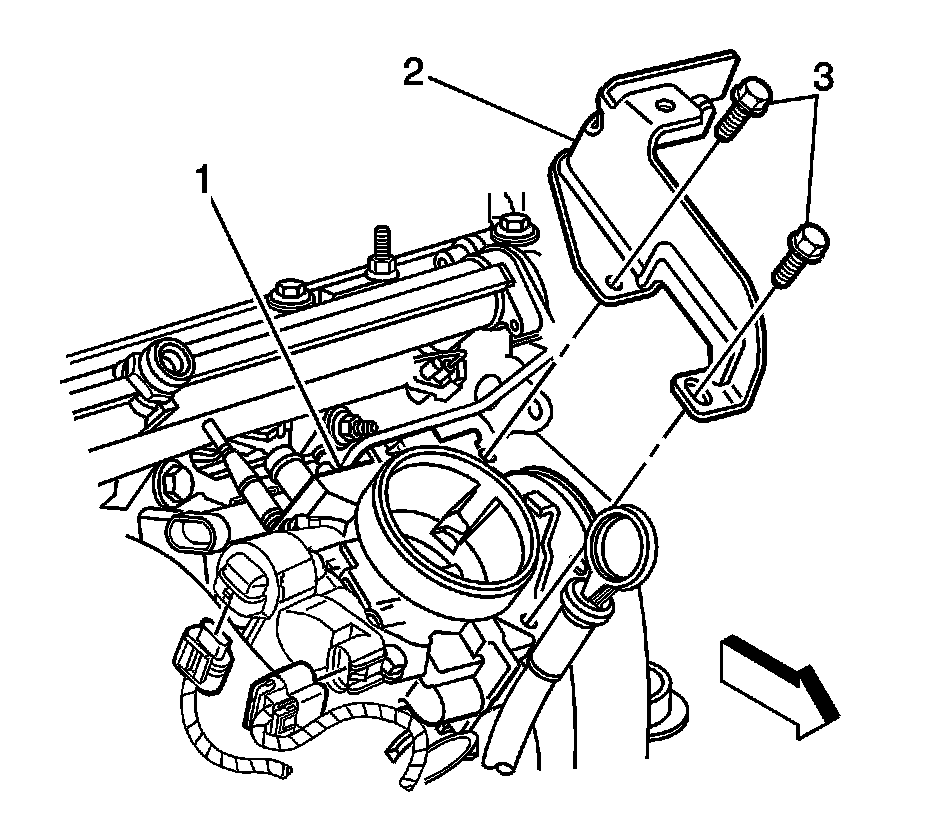

3. Remove the 2 accelerator bracket bolts (3).
4. Remove the accelerator bracket (2) from the throttle body (1).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the accelerator bracket (2) on the throttle body (1).

Tighten the accelerator bracket bolts to 10 N.m (89 lb in).




2. Connect the accelerator control cable to the throttle body and accelerator bracket.
3. Install the air cleaner outlet resonator.
