Fluid Passages

Fluid Passages

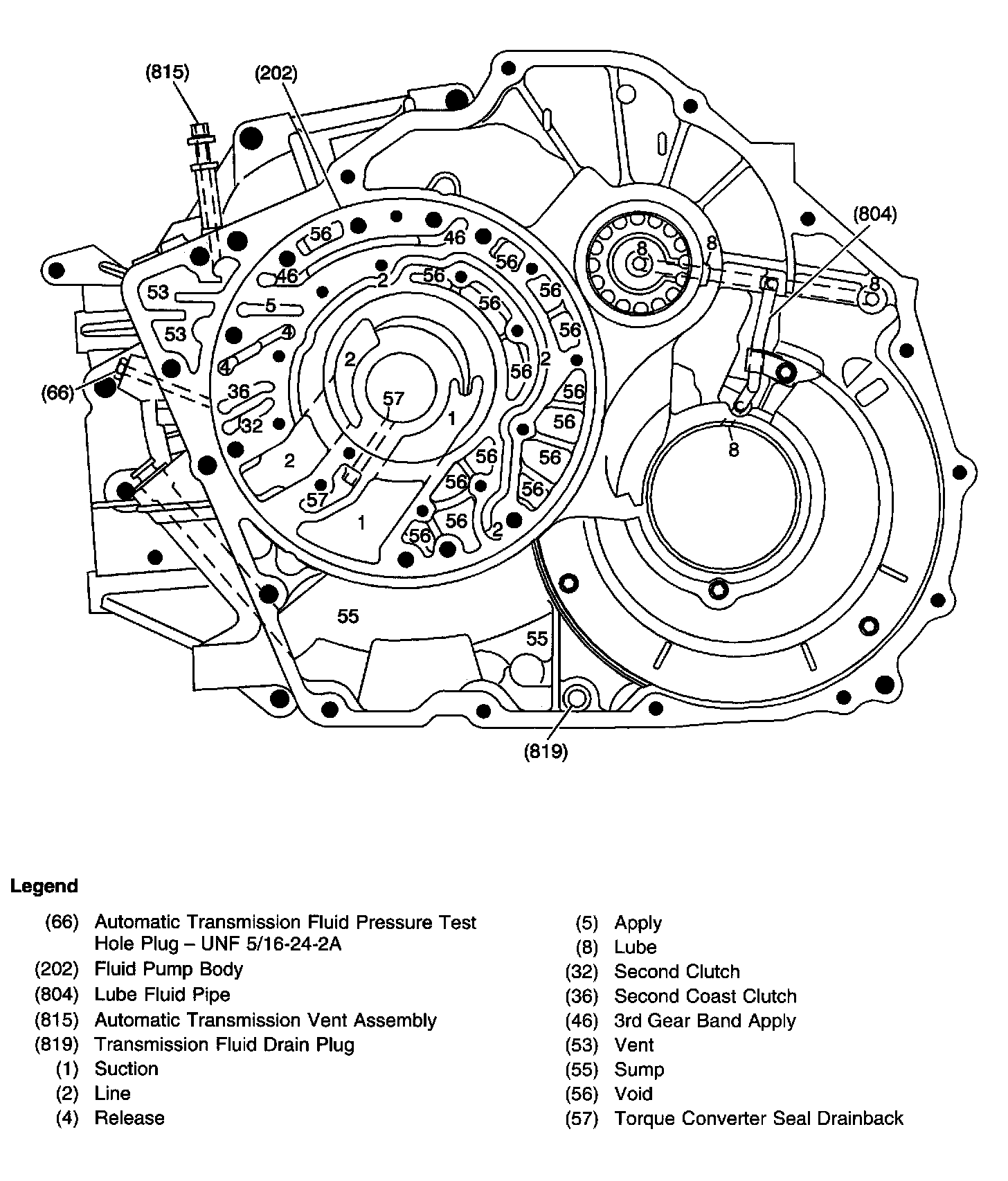

Torque Converter Housing Assembly and Fluid Pump Body Fluid Passages (Transmission Case Assembly Side)

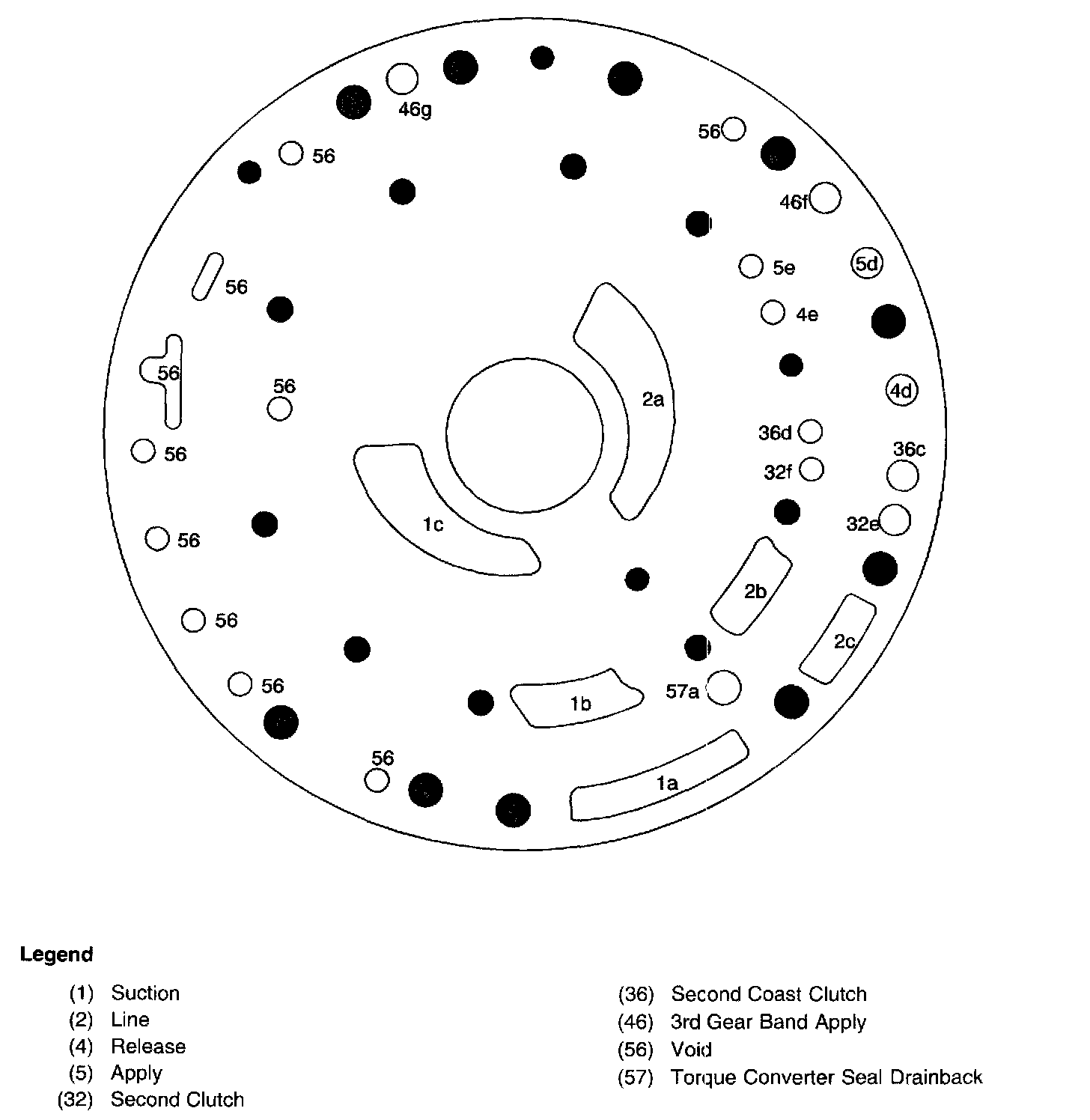

Fluid Pump Plate Fluid Passages (Fluid Pump Body Side)

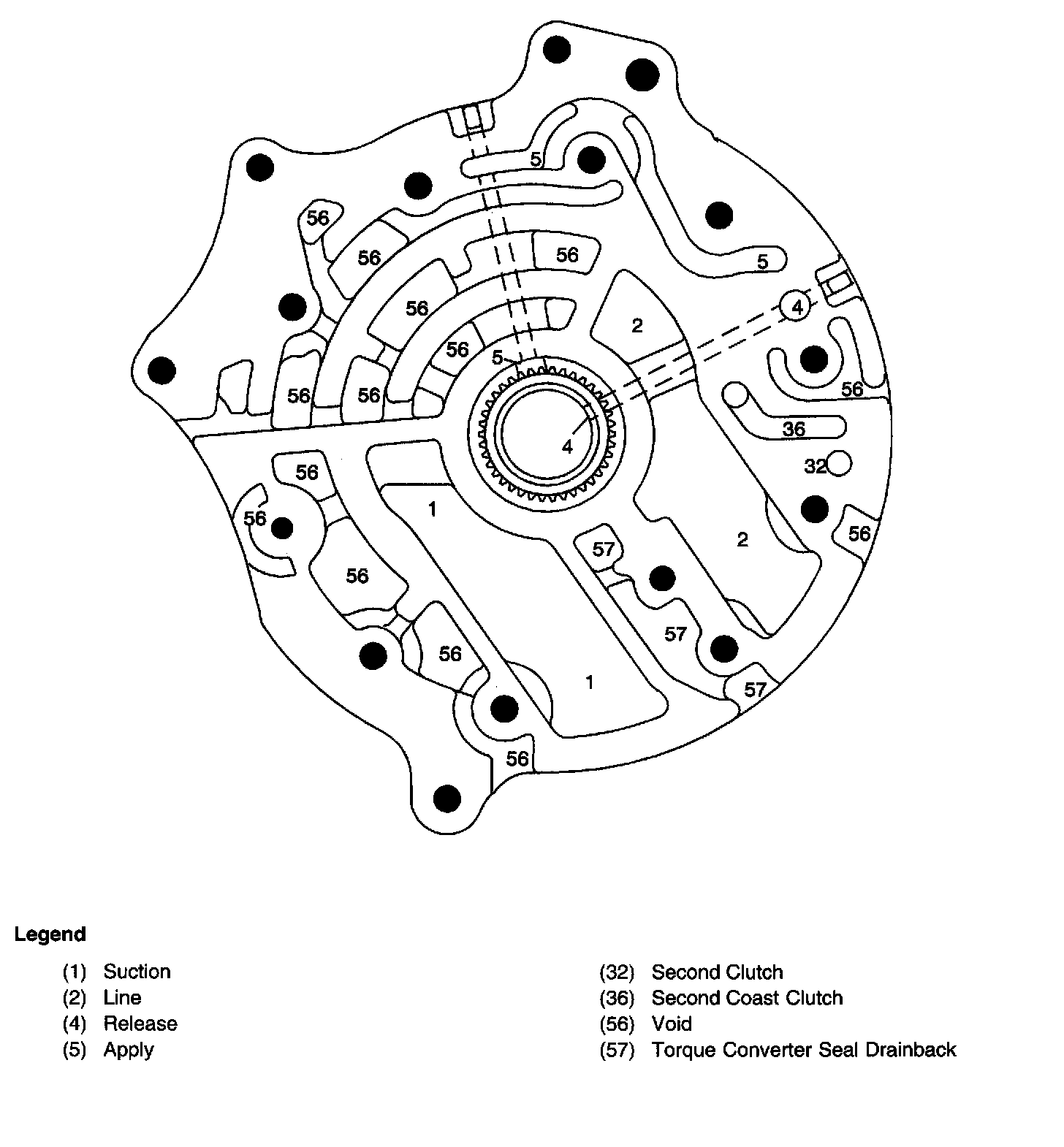

Fluid Pump Stator Shaft Assembly Fluid Passages (Fluid Pump Body Side)

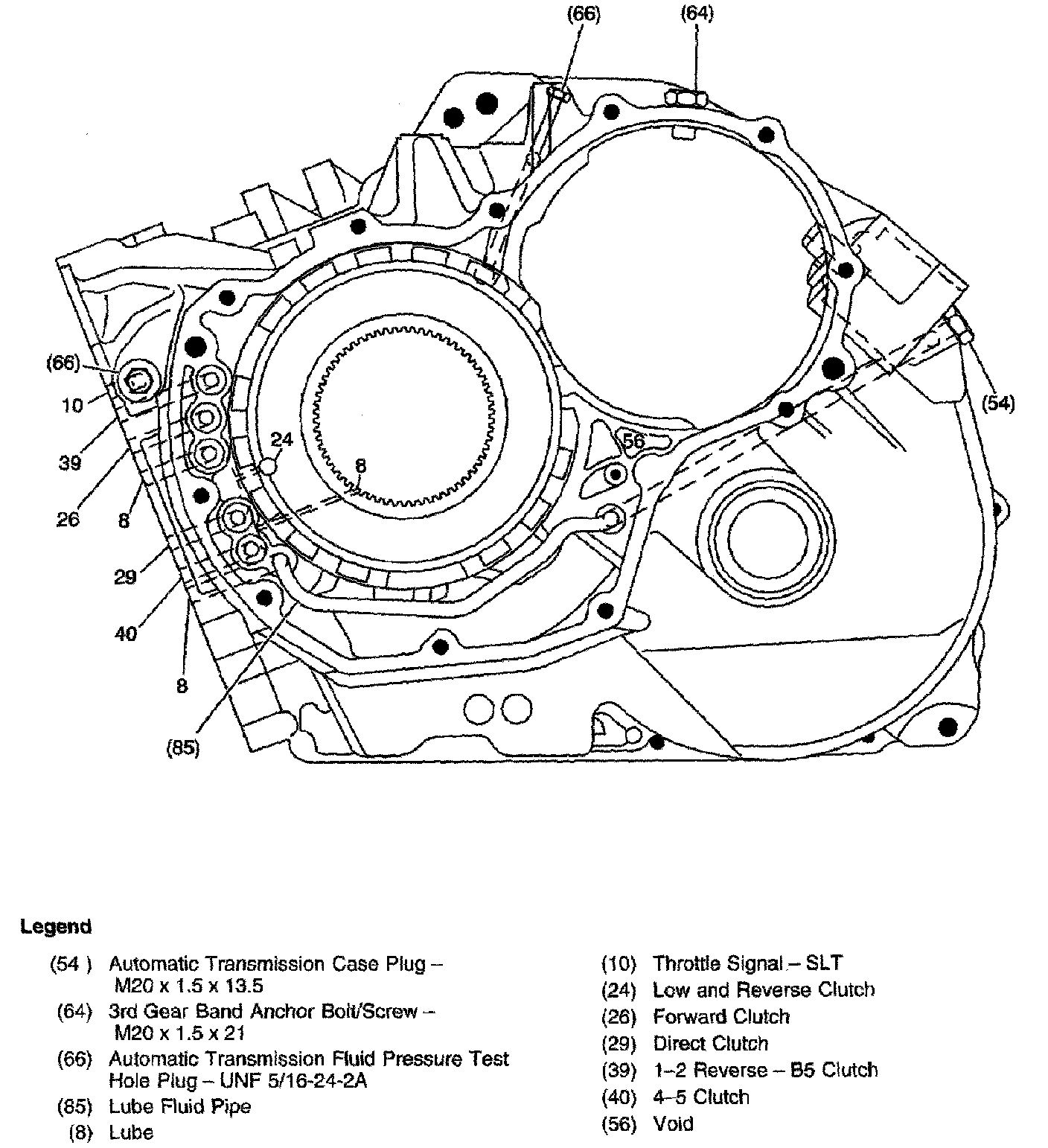

Transmission Case Assembly Fluid Passages (Fluid Pump Stator Shaft Assembly Side)





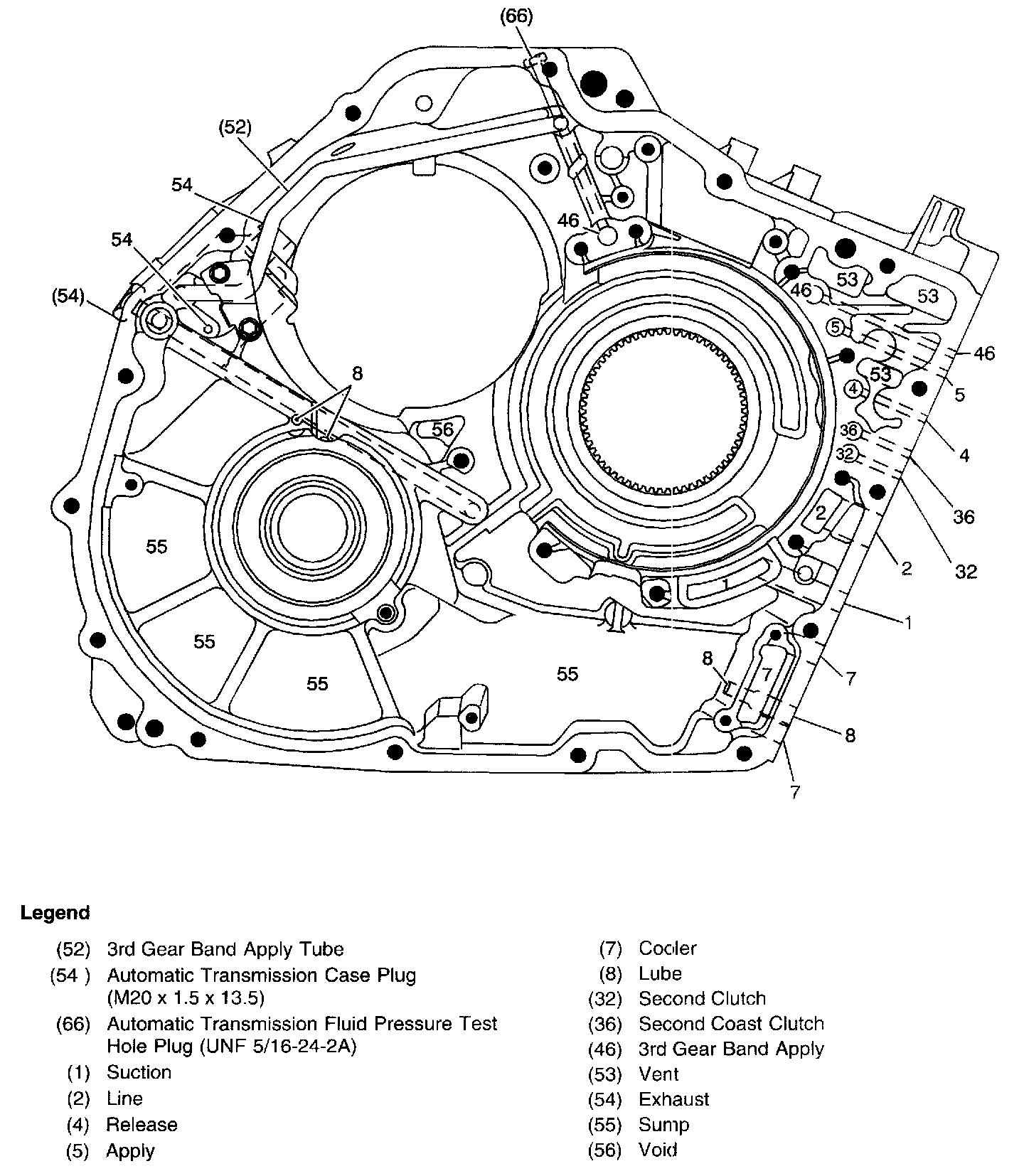

Transmission Case Assembly Fluid Passages (Transmission Case Cover Assembly Side

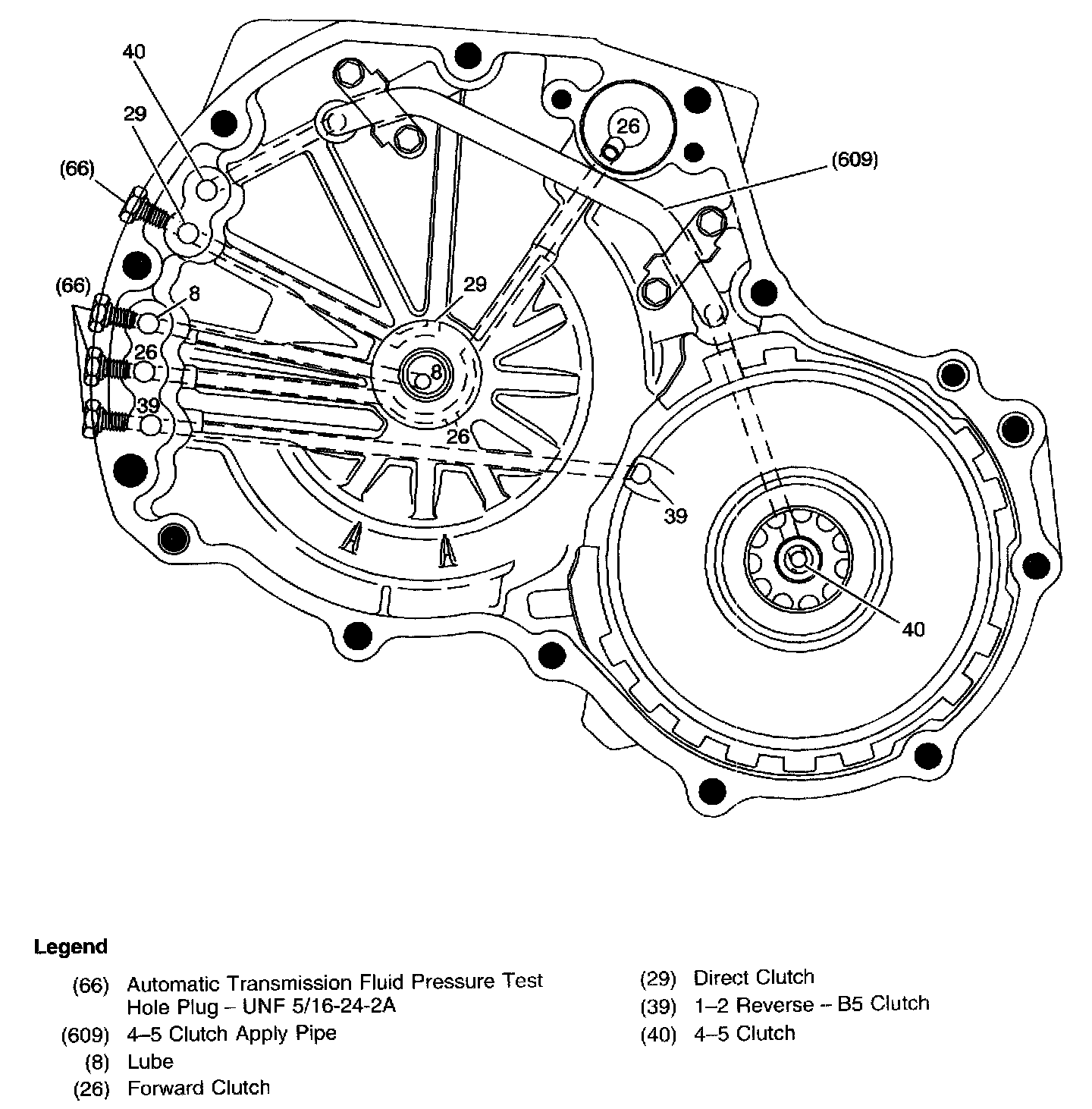

Transmission Case Cover Assembly Fluid Passages (Transmission Case Assembly Side)

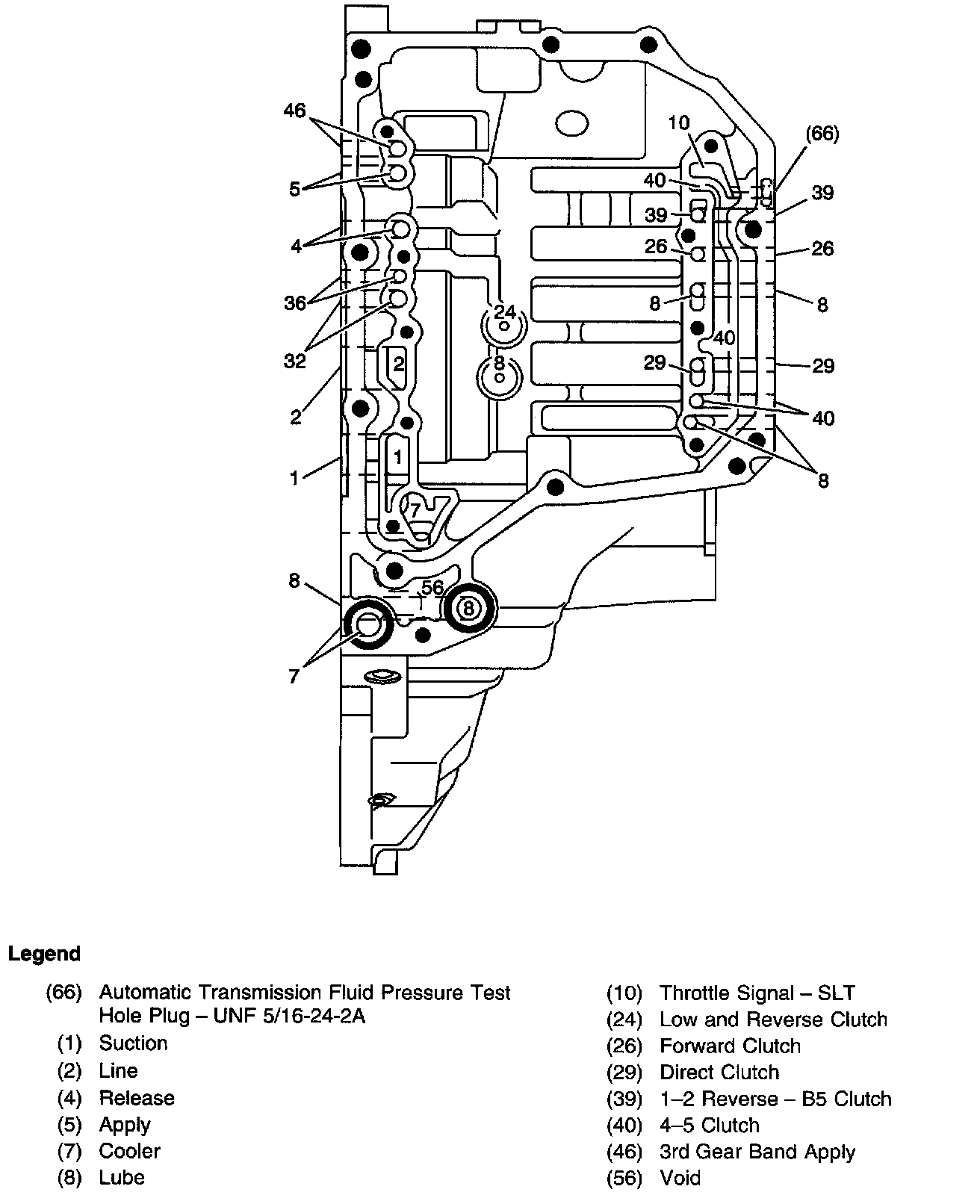

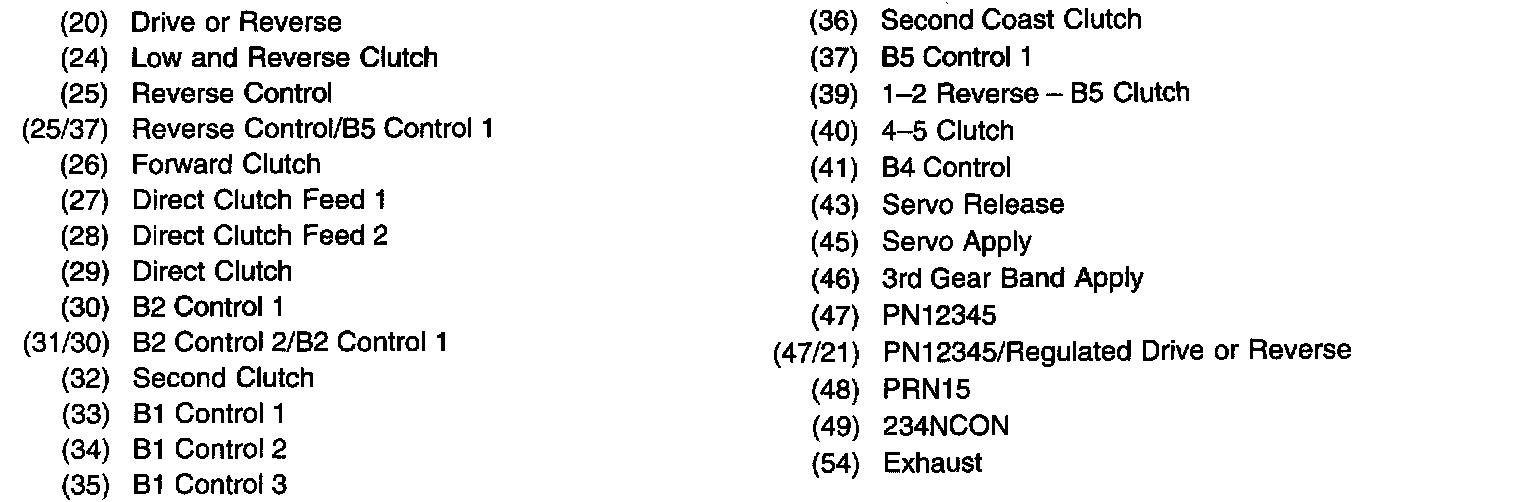

Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)





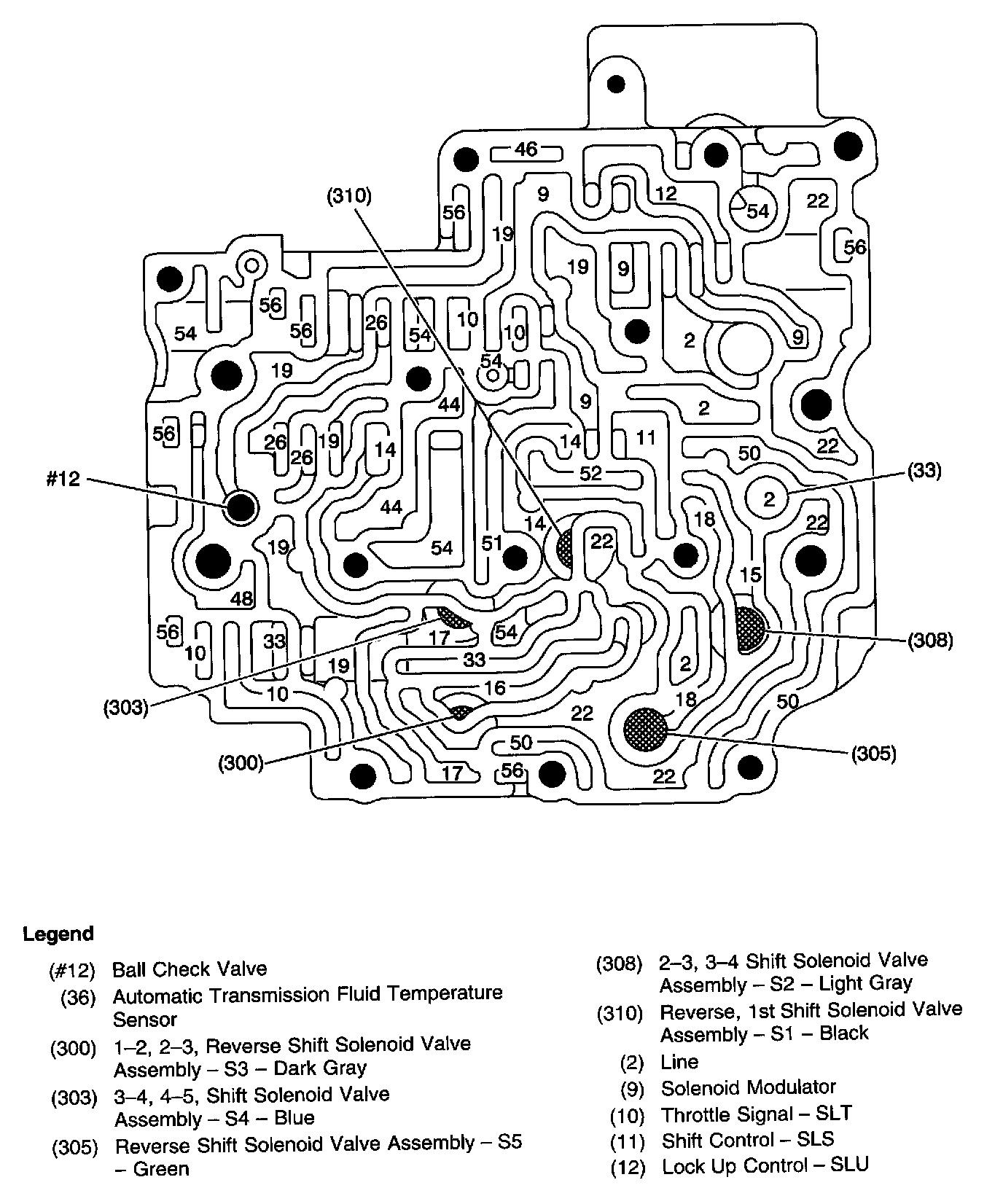

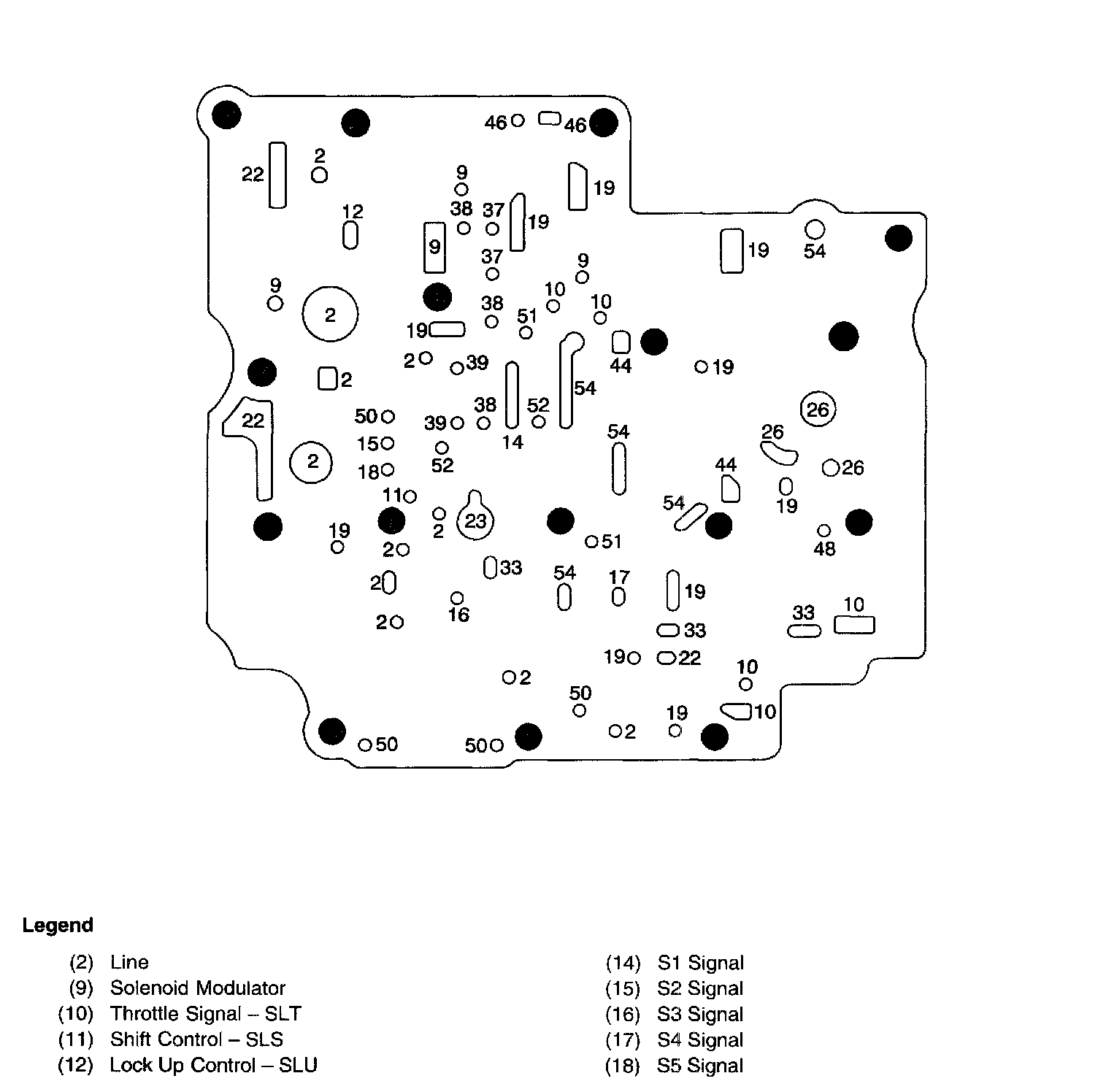

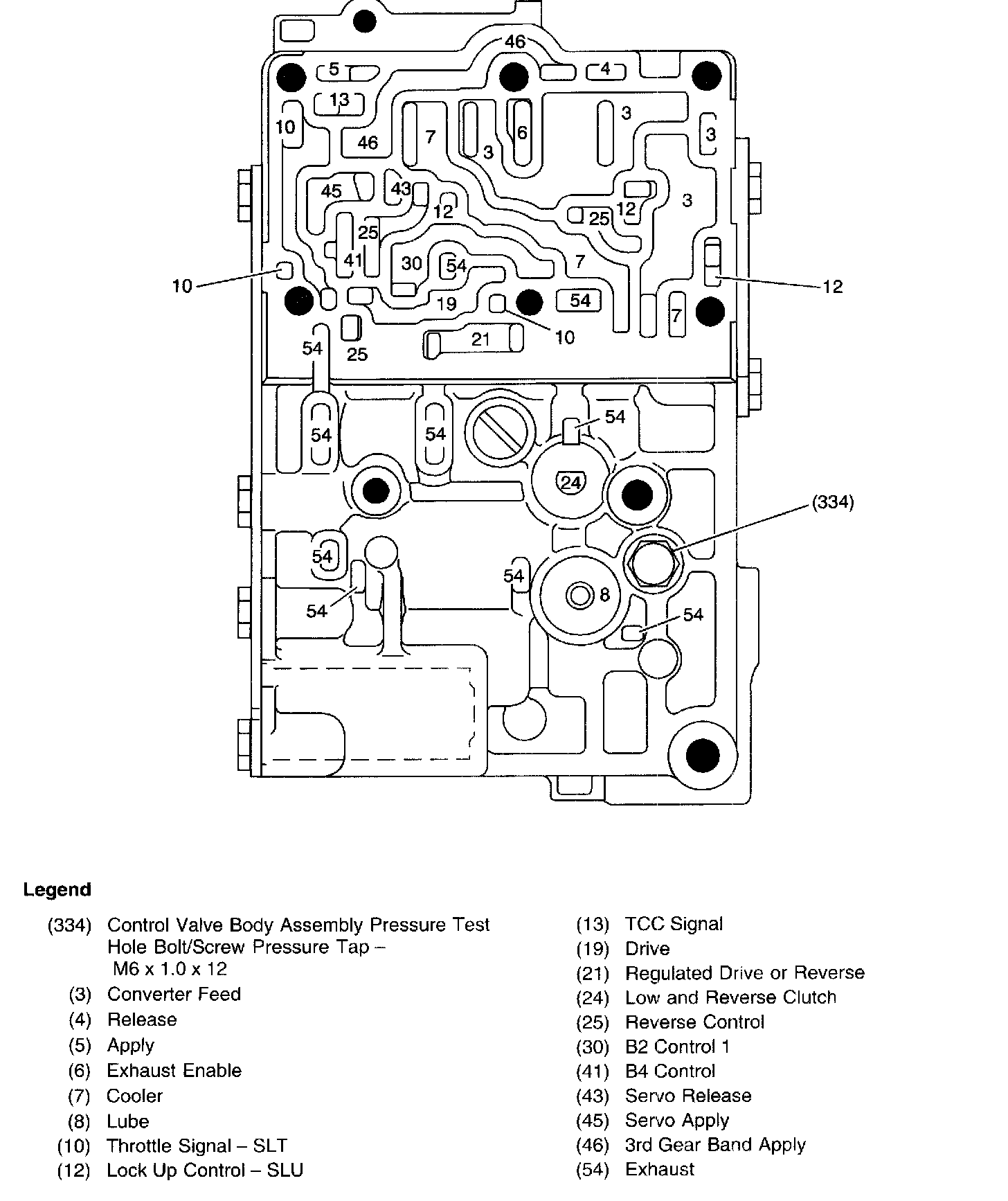

No. 2 Rear Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly Side)





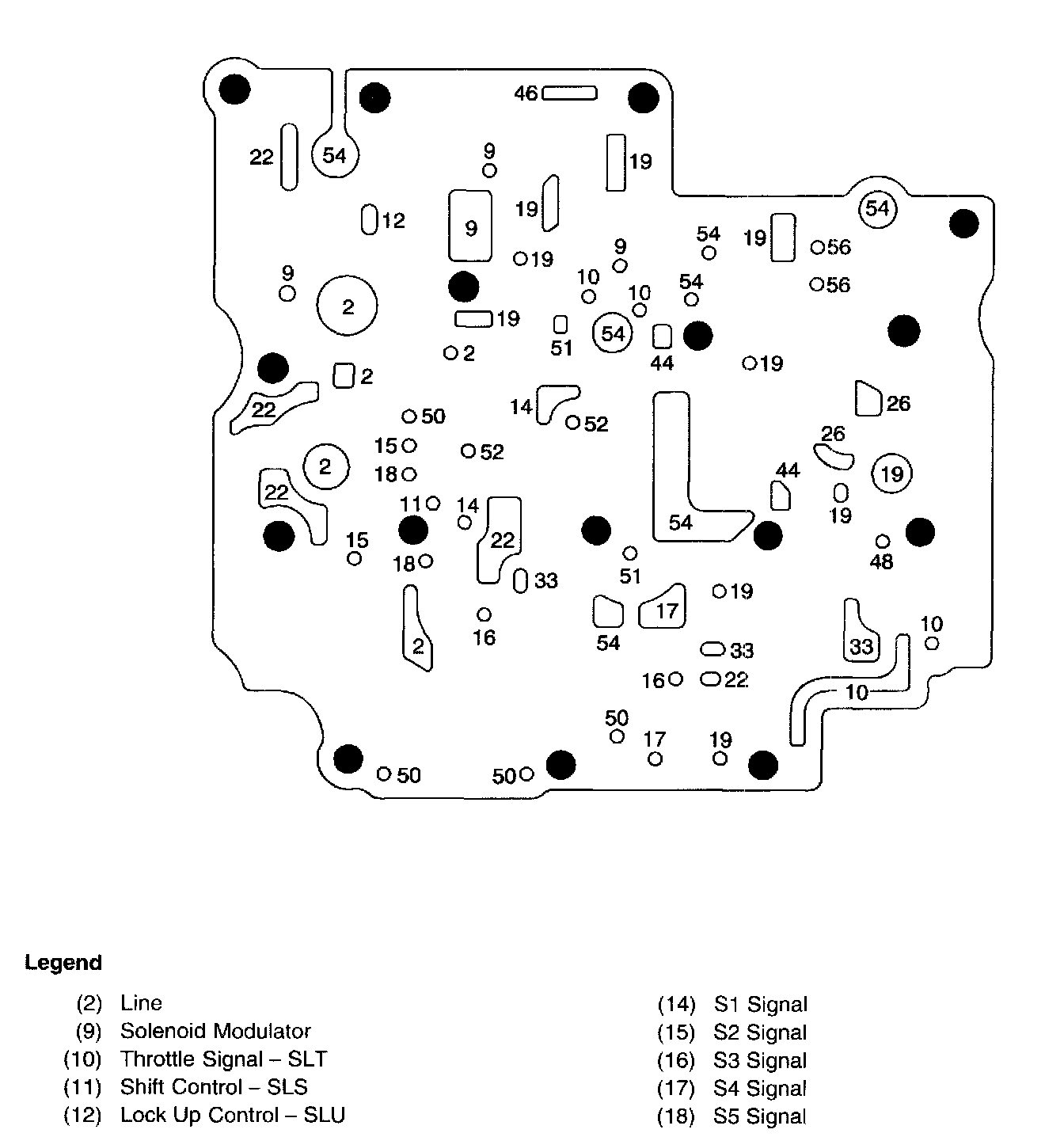

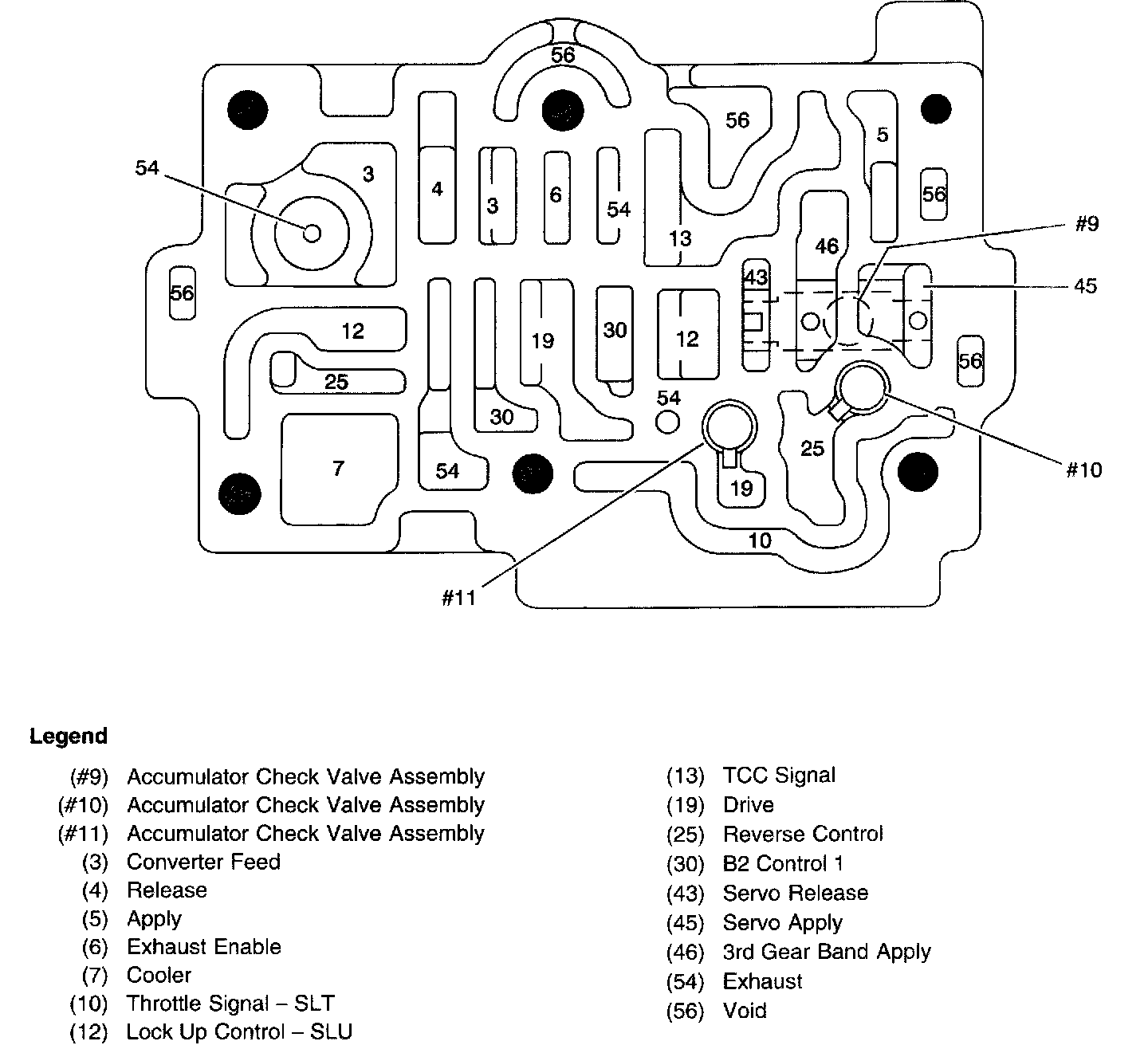

Rear Control Valve Body Assembly Spacer Plate to No. 2 Rear Control Valve Body Gasket Fluid Passages (Rear Control Valve Body Assembly Side)





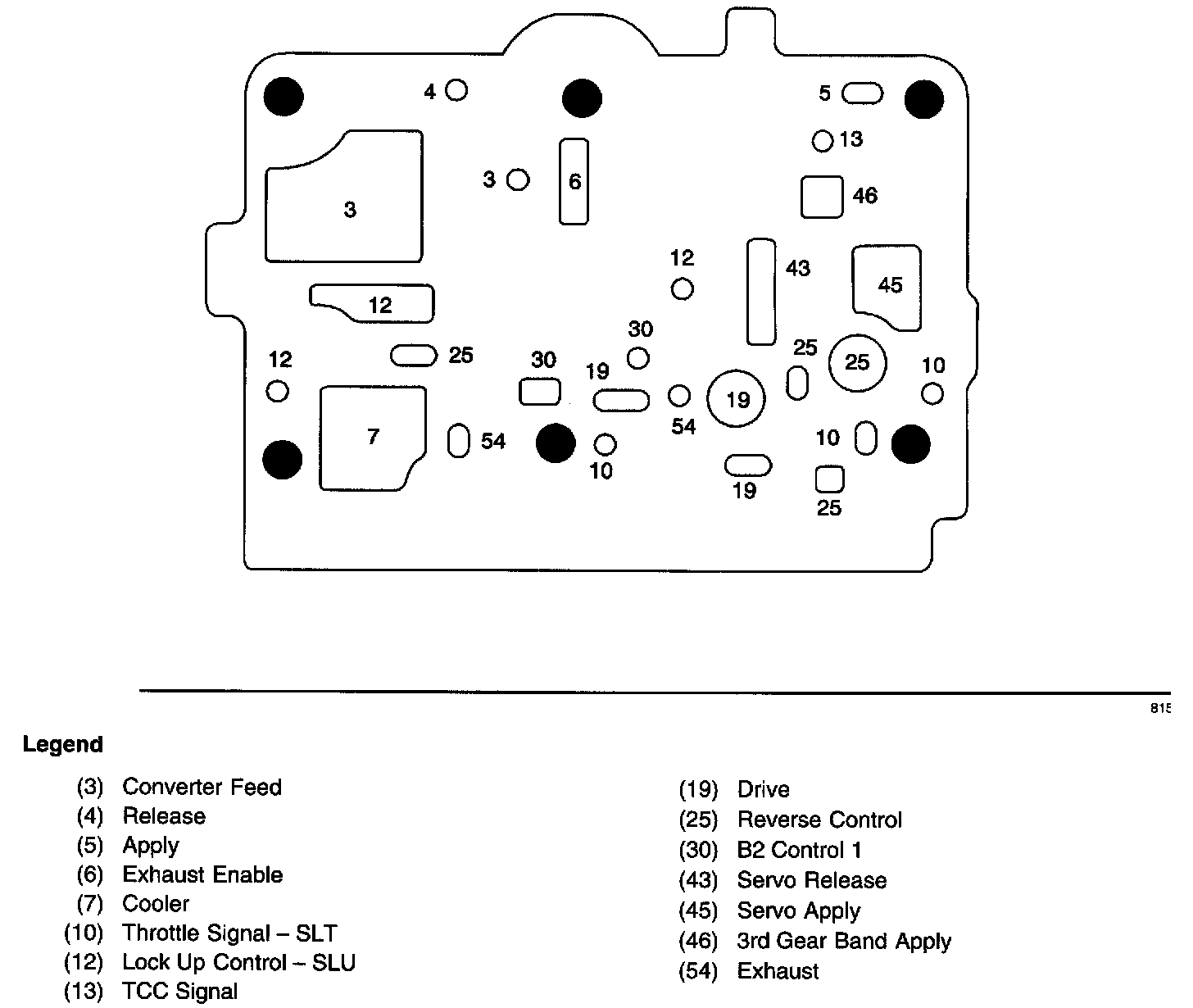

Rear Control Valve Body Assembly Spacer Plate Fluid Passages (Rear Control Valve Body Assembly Side)





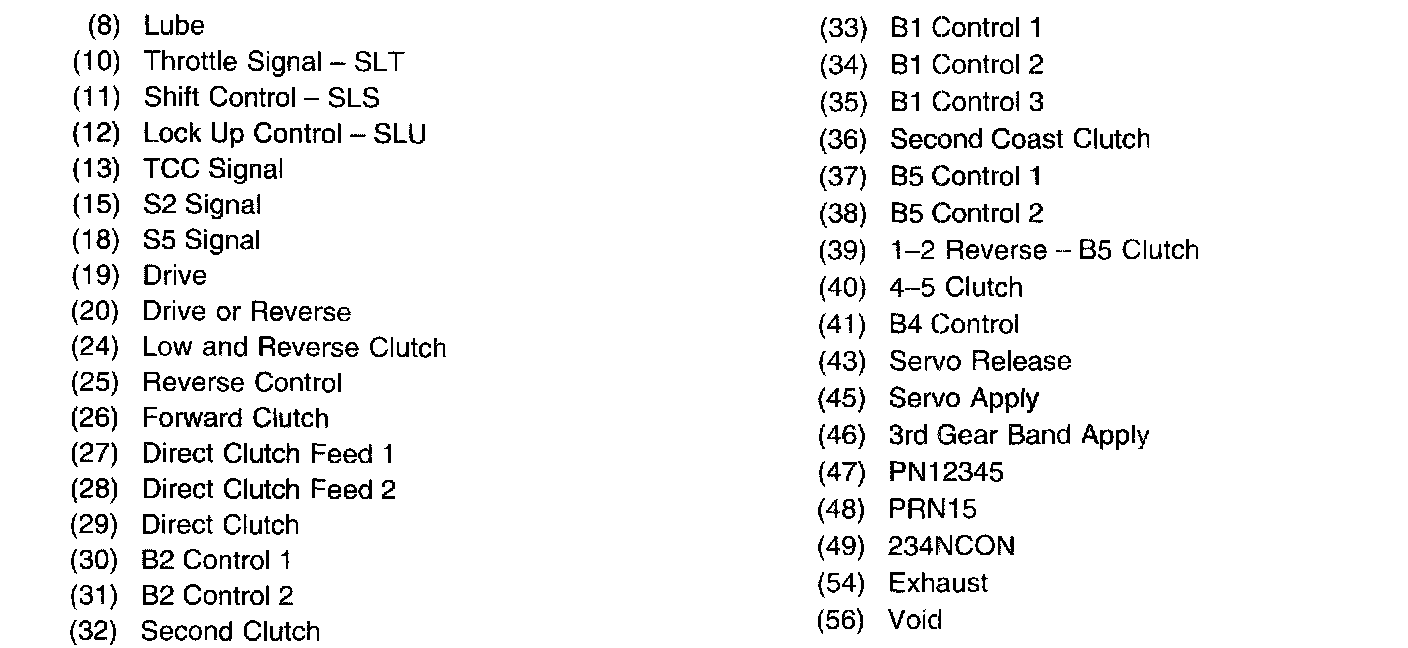

Rear Control Valve Body to Rear Control Valve Body Spacer Plate Gasket Fluid Passages (Rear Control Valve Body Assembly Side)





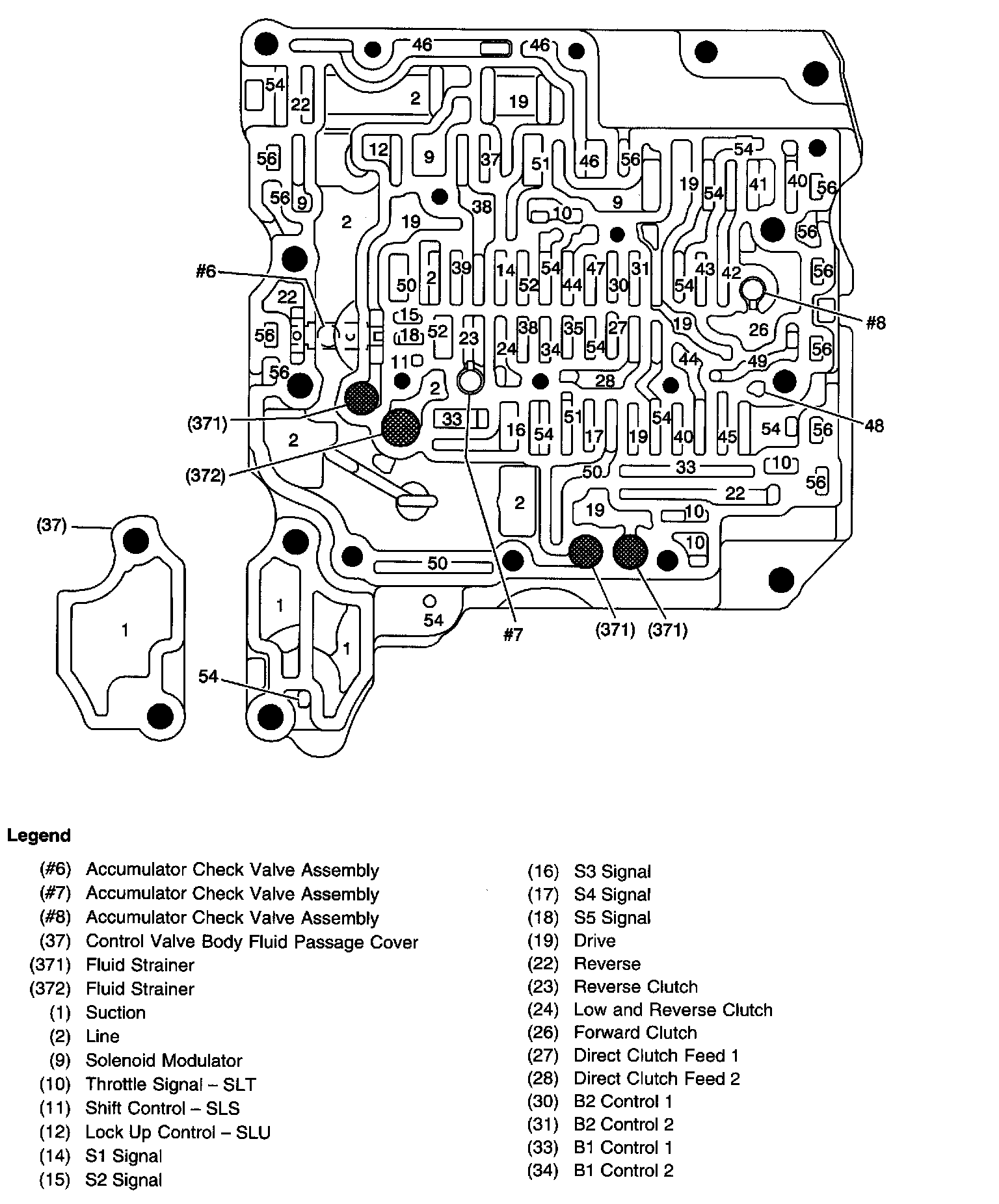

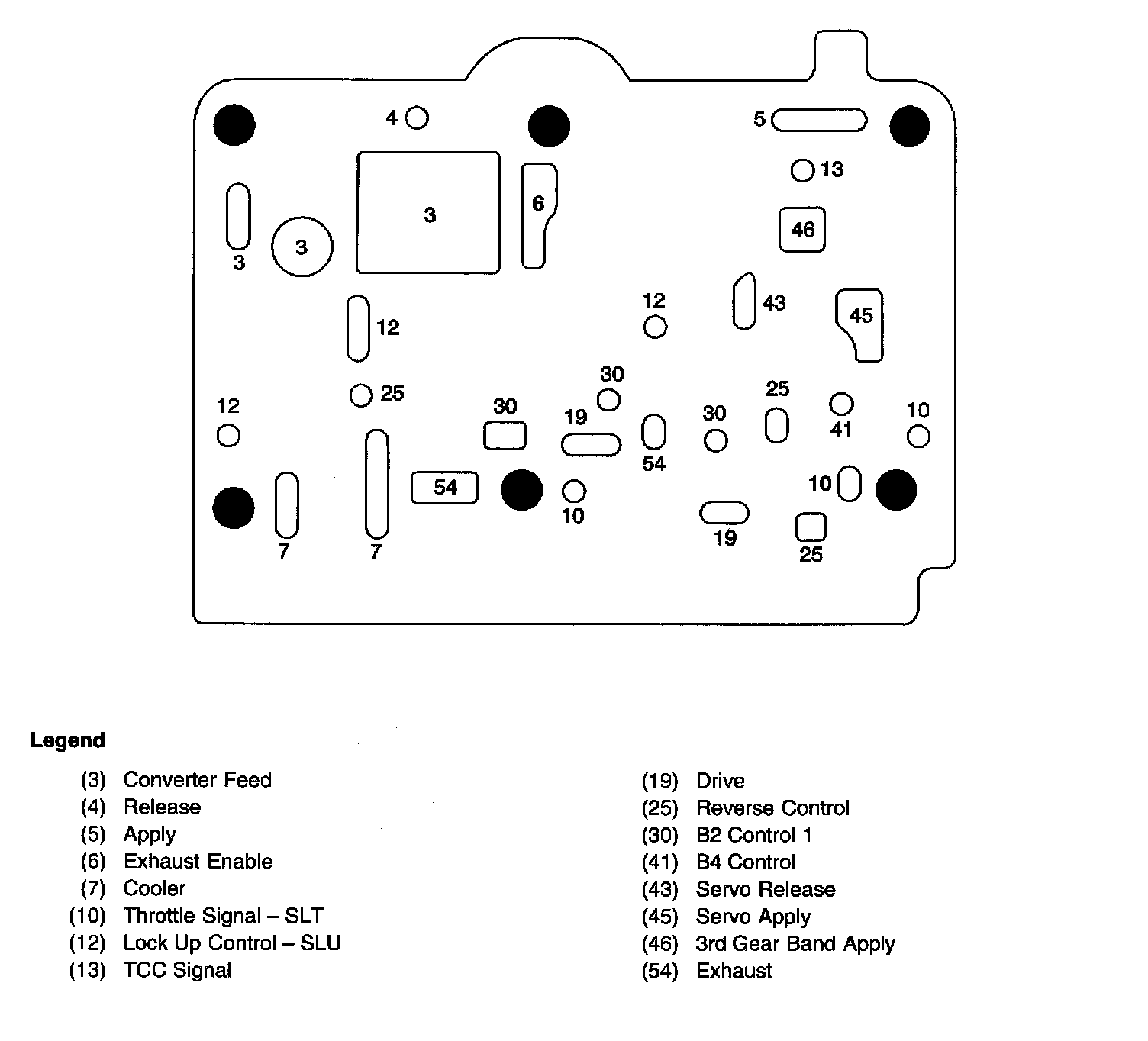

Rear Control Valve Body Assembly Fluid Passages (No. 2 Rear Control Valve Body Assembly Side)








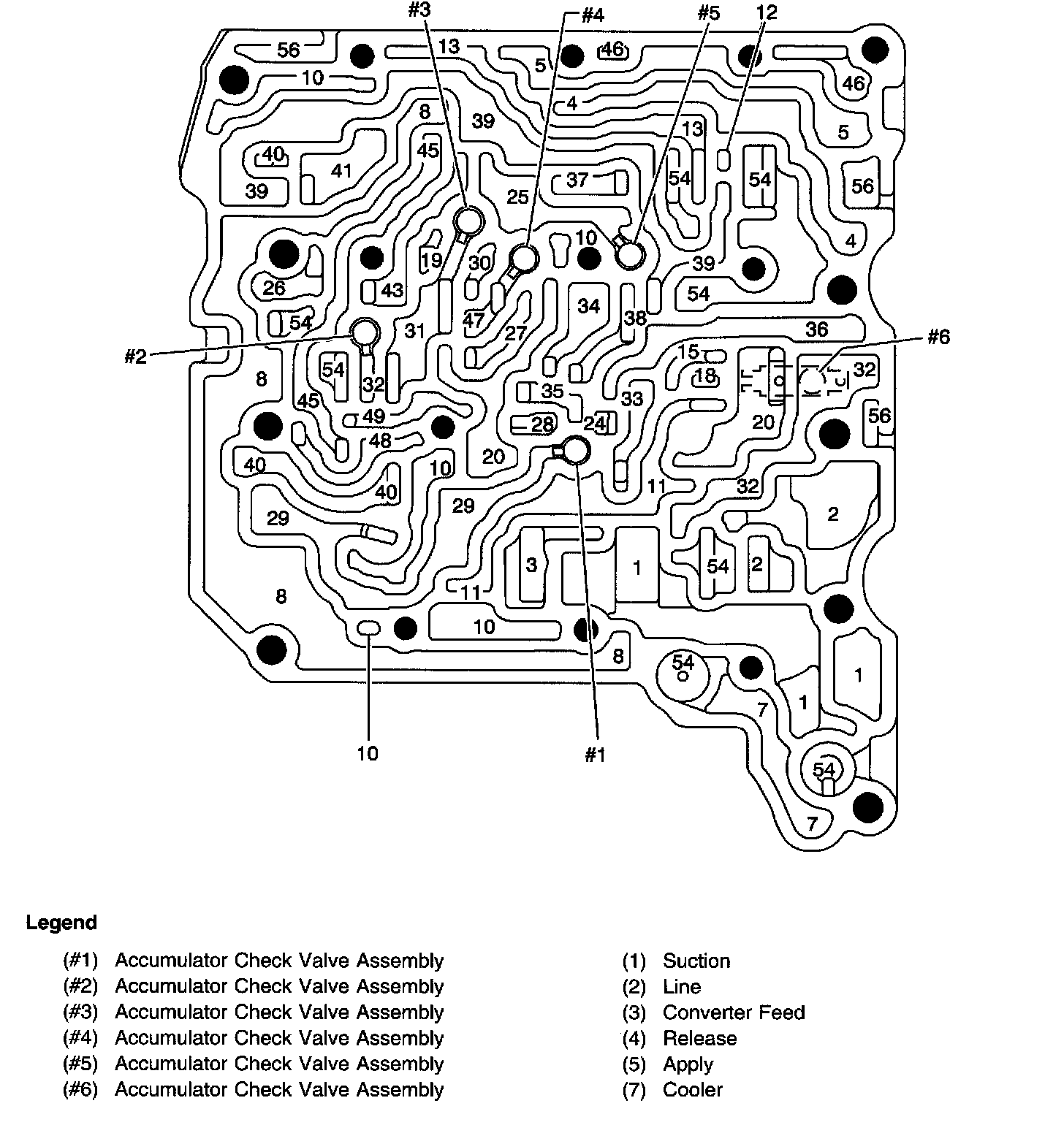

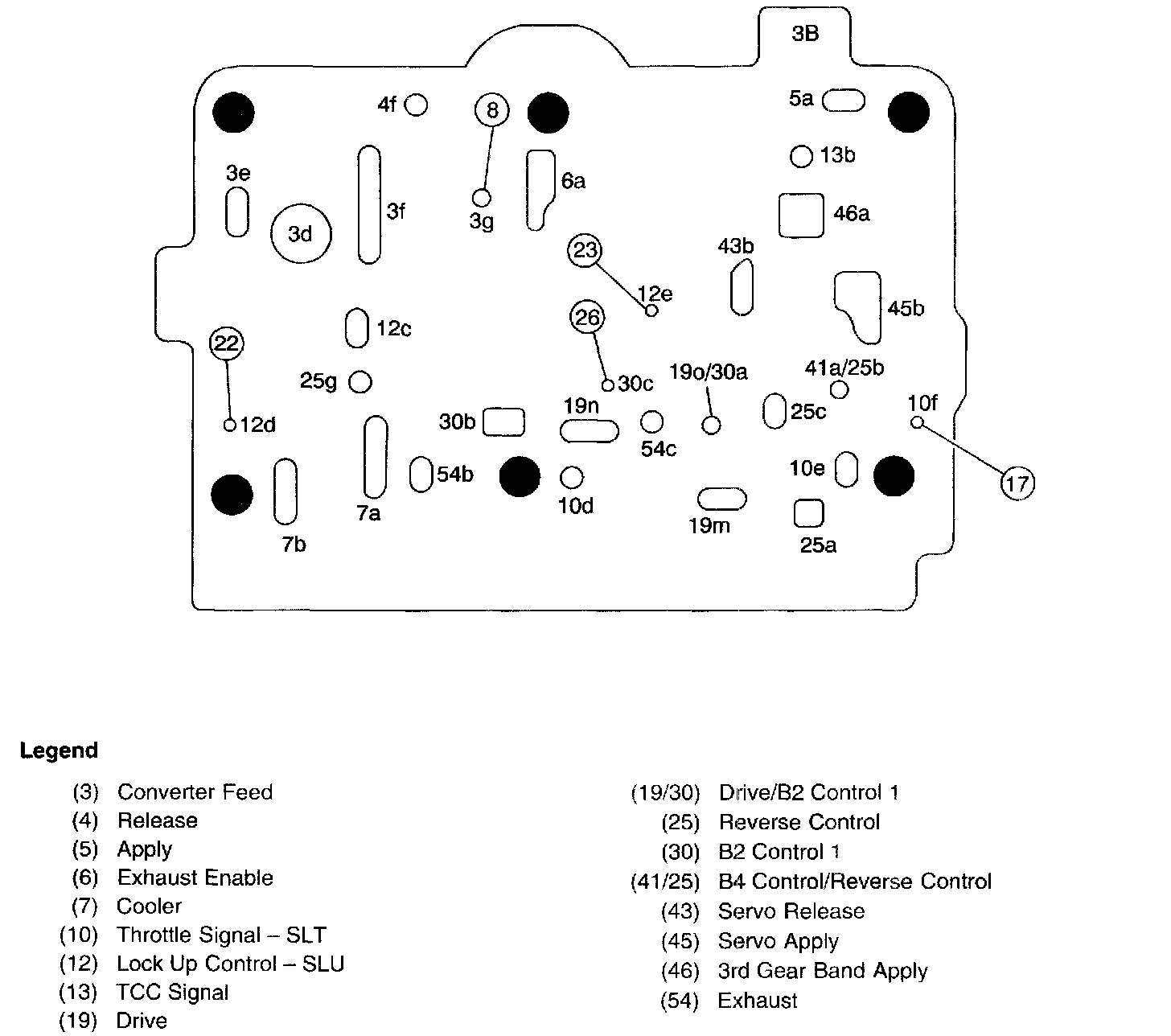

Rear Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)








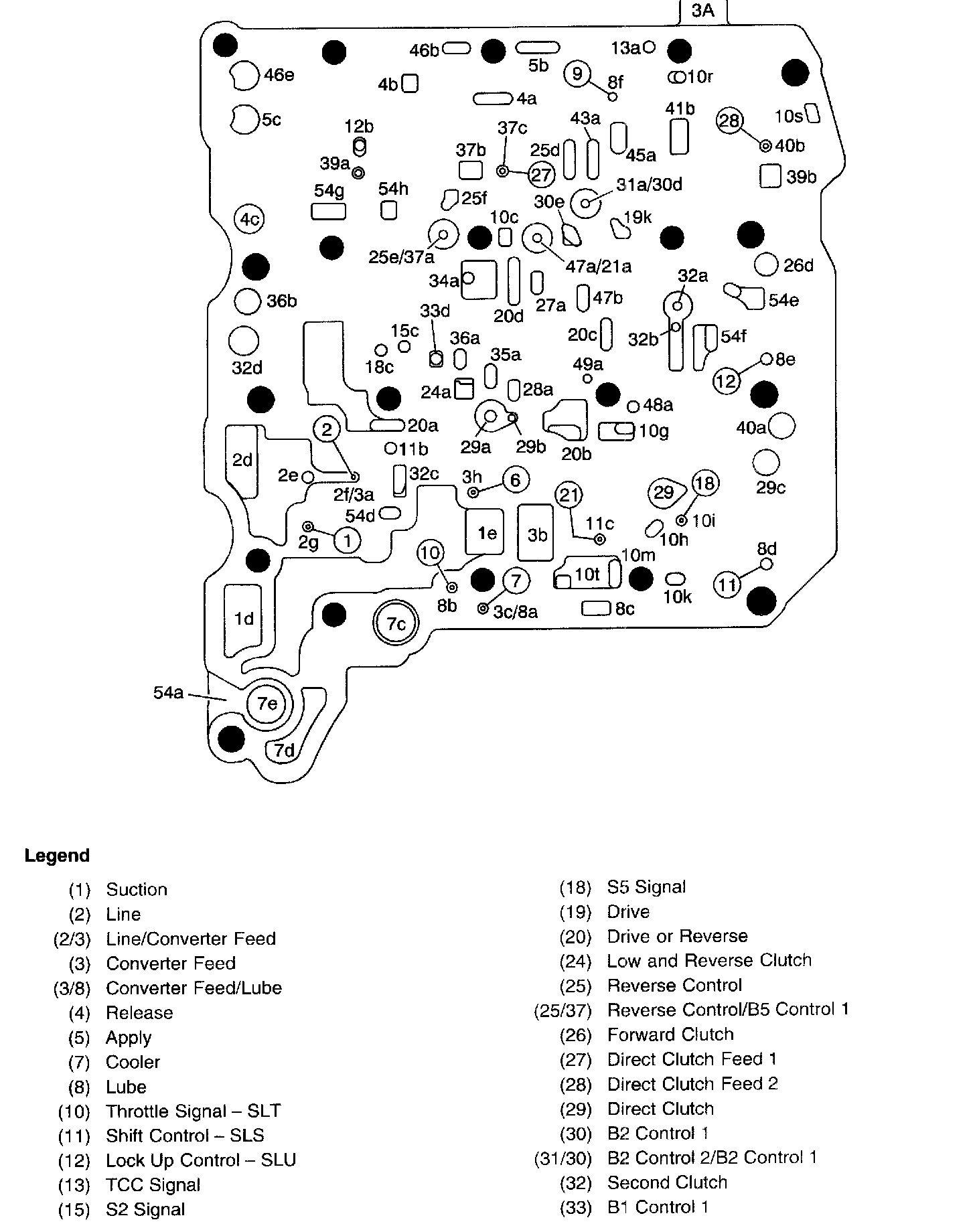

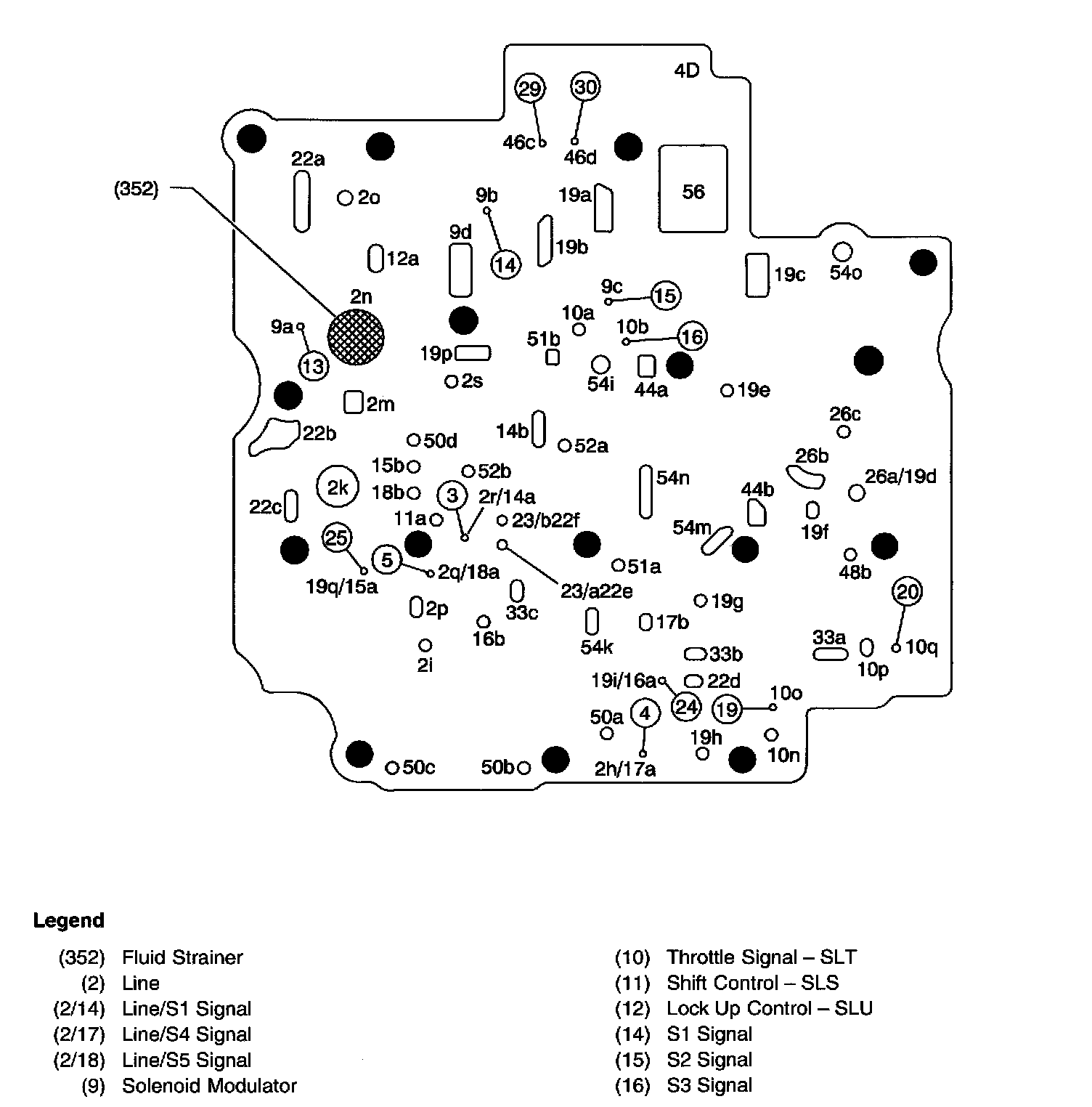

Middle Control Valve Body Assembly to Rear Control Valve Body Spacer Plate and Gasket Assembly Fluid Passages (Rear Control Valve Body Assembly and Case Side)








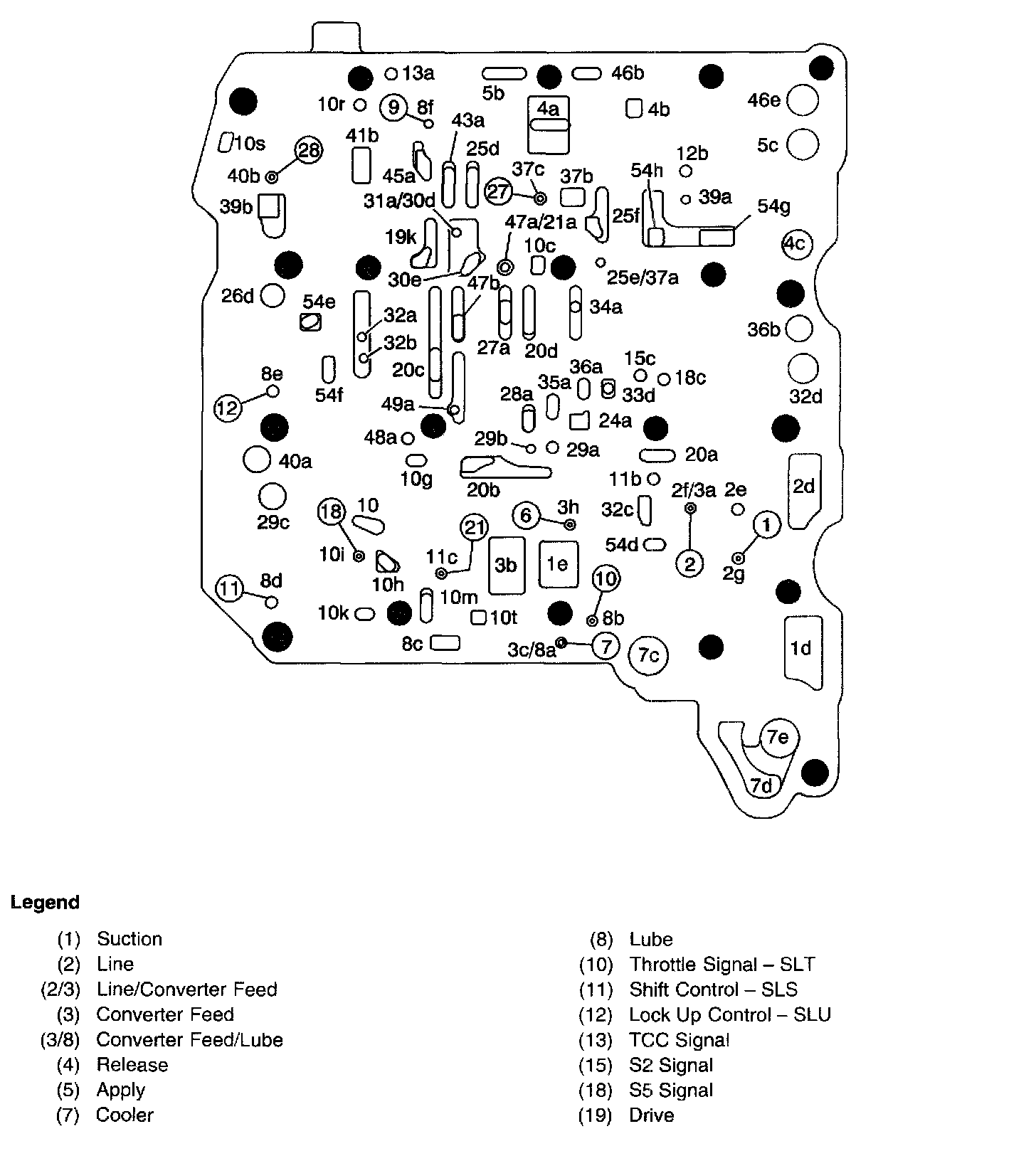

Middle Control Valve Body Assembly to Rear Control Valve Body Spacer Plate and Gasket Assembly Fluid Passages (Middle Control Valve Body Assembly Side)








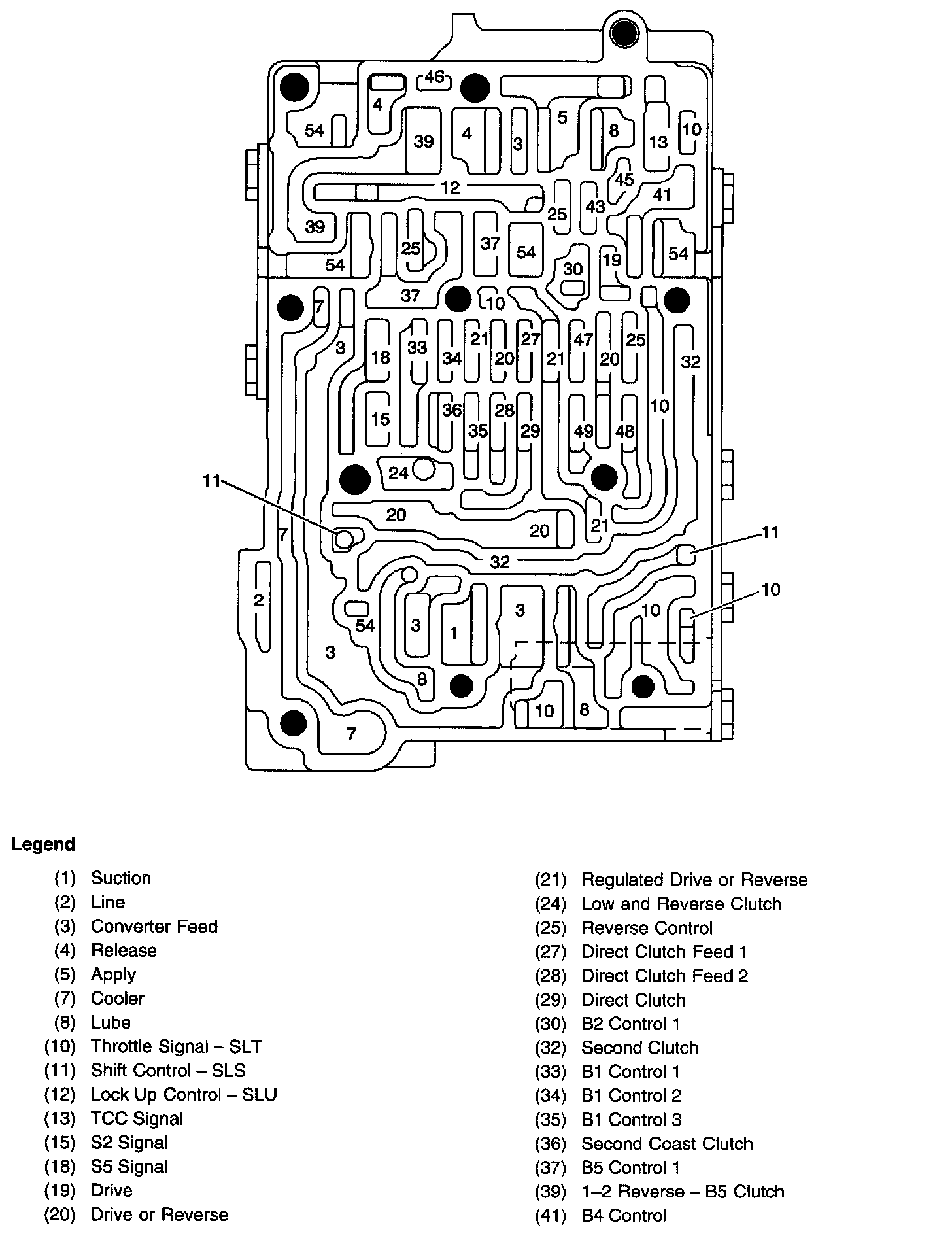

Middle Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly and Case Side)








Middle Control Valve Body Assembly and Control Valve Body Fluid Passage Cover Fluid Passages (Front Control Valve Body Assembly Side)








Front Control Valve Body Spacer Plate to Middle Control Valve Body Gasket Fluid Passages (Front Control Valve Body Assembly Side)








Front Control Valve Body Spacer Plate Fluid Passages (Front Control Valve Body Assembly Side)








Front Control Valve Body to Front Control Valve Body Spacer Plate Gasket Fluid Passages (Front Control Valve Body Assembly Side)








Front Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
