3. Draining Transmission Fluid

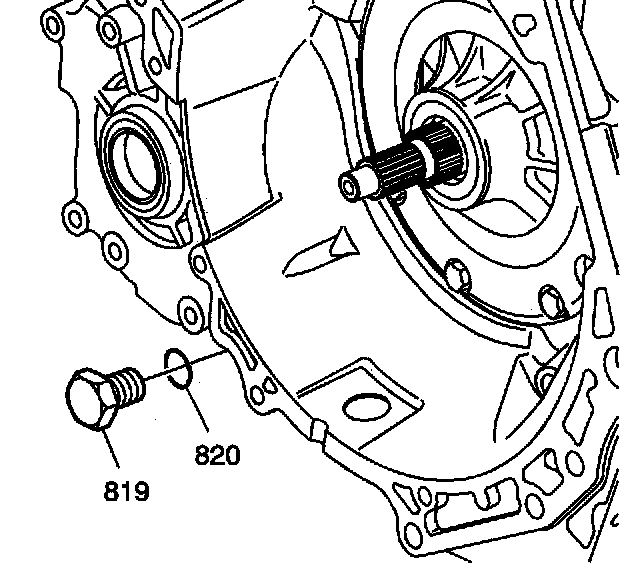

Draining Transmission Fluid 1.
Place a suitable fluid collection pan under the transmission assembly.
2.
Remove the drain plug.
3.
Remove the gasket (820) from the drain plug (819).
4.
Drain the automatic transmission fluid into the collection pan.
5.
Remove the collection pan and properly dispose of the transmission fluid.
