Transmission Mount Bracket Replacement - Rear
Transmission Mount Bracket Replacement - RearRemoval Procedure
1. Remove the rear transaxle mount.

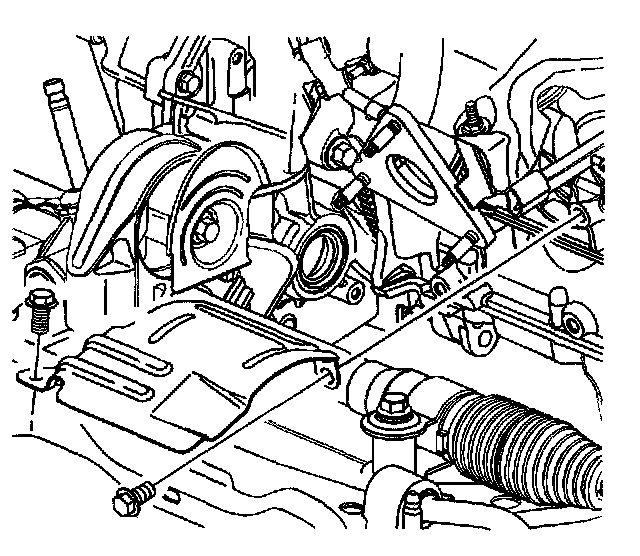

2. Remove the axle boot heat shield bolts.
3. Remove the axle boot heat shield.
4. Remove the rear transaxle mount bracket to transaxle bolts.
5. Remove the rear transaxle mount bracket from the transaxle.
Installation Procedure
1. Install the rear transaxle mount to transaxle.
Notice: Refer to Fastener Notice in Service Precautions.
2. Using the following sequence, install the rear transaxle mount bracket bolts:
2.1. Tighten the middle bolt to 60 Nm (44 ft. lbs.).
2.2. Tighten the lower bolt to 60 Nm (44 ft. lbs.).
2.3. Tighten the upper bolt to 60 Nm (44 ft. lbs.).

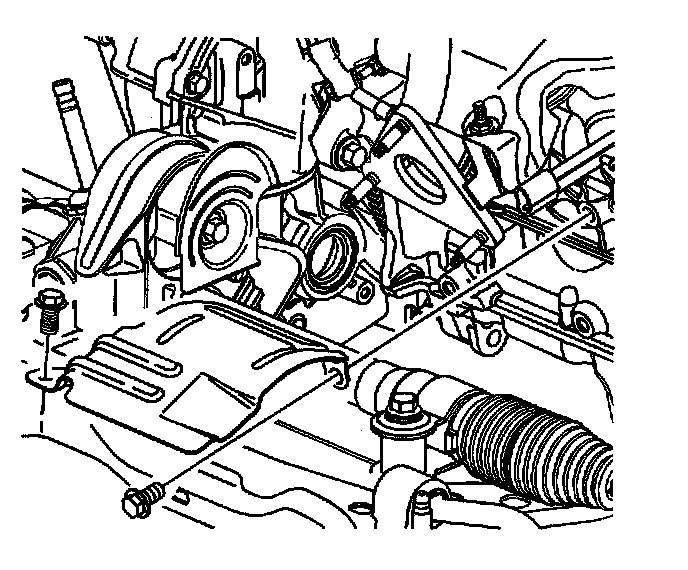

3. Install the axle boot heat shield.
4. Install the axle boot heat shield bolts.
^ Tighten the heat shield to transmission mount bracket bolt to 10 Nm (89 inch lbs.).
^ Tighten the heat shield to engine bolt to 30 Nm (22 ft. lbs.).
5. Install the rear transaxle mount.
