Flywheel

Install new flywheel-to-crankshaft bolts. Hand start the bolts. Tighten the flywheel-to-crankshaft bolts in a crisscross pattern to 53 Nm (39 lb ft) plus 25 degrees.






Pressure Plate to Flywheel Bolts 24 Nm (17 lb ft)

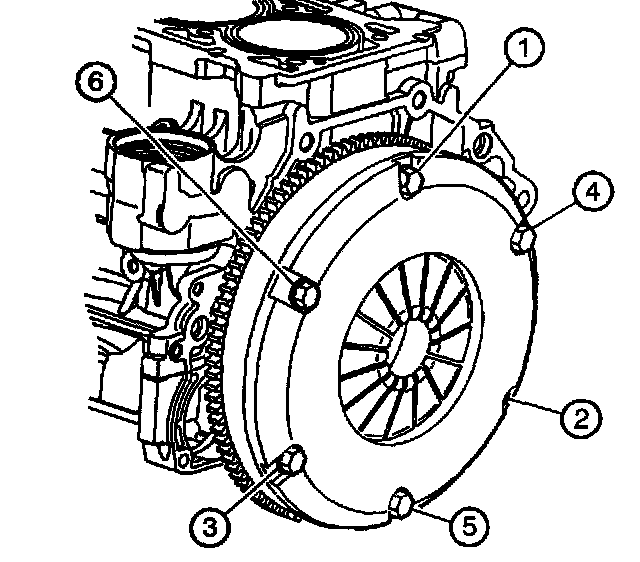

Important: Do not tighten the pressure plate assembly bolts more than half a turn at a time or the pressure plate assembly may warp. Tighten the pressure plate assembly bolts using a progressive crisscross pattern to prevent warping of the pressure plate assembly.

Maximum Flywheel Warpage 0.15 mm (0.006 inch)
Maximum Flywheel Runout 0.15 mm (0.006 inch)
