Seals and Gaskets: Service and Repair

Drive Axle Shaft Seal Replacement (FWD Right)

- Tools Required
- J 43068 Axle Seal Installer
- J 44015 Steering Linkage Installer
- J 44017 Stub Shaft Assembly Remover
- J 45000 Seal Remover
- SA9133T Axle Seal Puller
- SA91 100C Tie Rod Separator
- SA91112T Axle Seal Protector

Removal Procedure





1. Raise and support the vehicle.
2. Remove the lower tube assembly and drain the fluid. Allow at least 5 minutes for the fluid to drain completely.
3. Remove the drive axle assembly. in Wheel Drive Shafts.

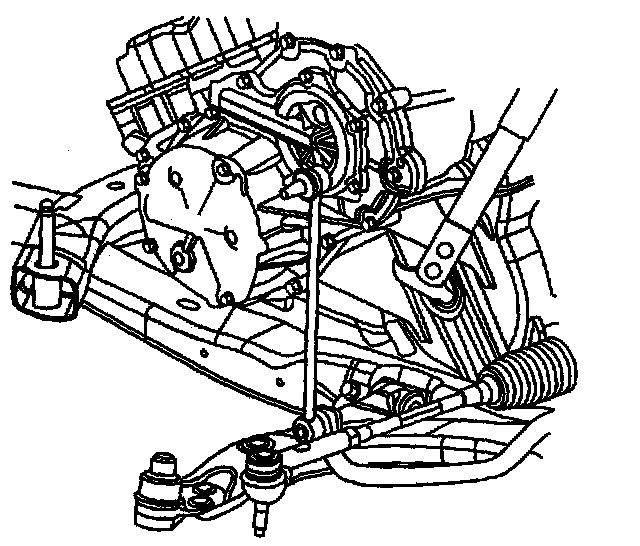

4. Using the J 45000, remove the axle seal from the torque converter and differential housing assembly. Discard the seal.
5. Clean the housing seal bore.

Installation Procedure






Important: Prior to installing the seal, inspect the 440 J 43068 for nicks and burrs that may damage the seal lip.

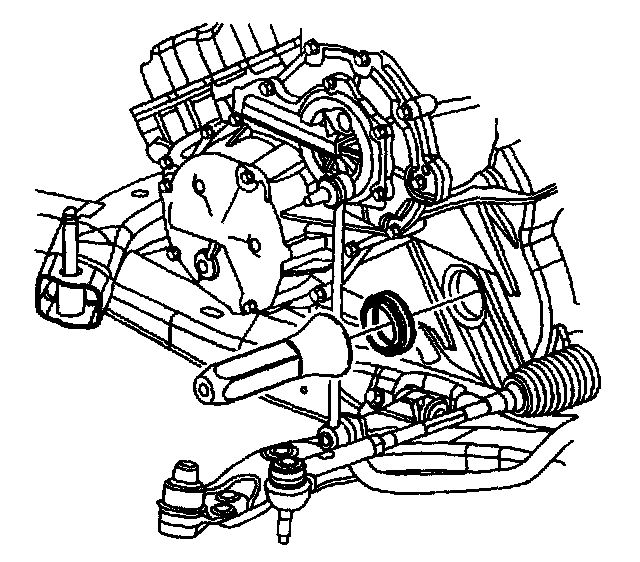

1. Using the J 43068, install the axle seal. Ensure to keep the seal lined up with the bore during installation.
2. Install the drive axle assembly. in Wheel Drive Shafts.
3. Lower the vehicle.
4. Using Saturn DEX-CVT fluid P/N 22688912, fill the transmission to the proper level.
