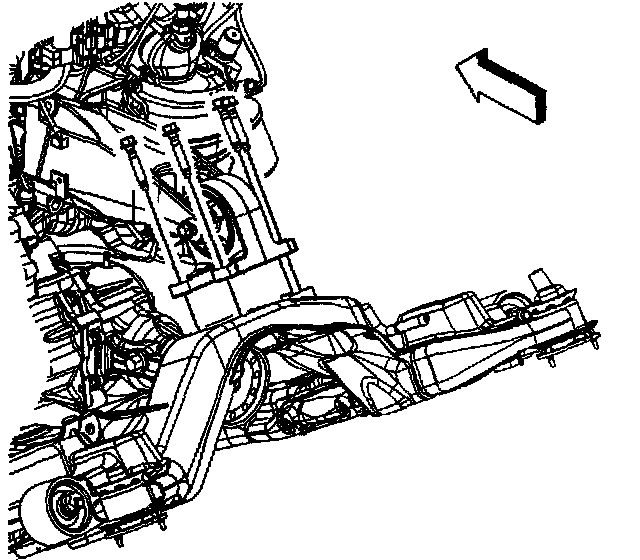

Link: lemon-manuals.la or lemon-manuals.org.ua

(Some people have issue connecting. LEMON is investigating. For now, use Firefox or change your DNS server)

Or, hide this message: temporarily or permanently

Transmission Mount Bracket Replacement

Transmission Mount Bracket Replacement - Rear

Removal Procedure





1. Remove the rear transmission mount.

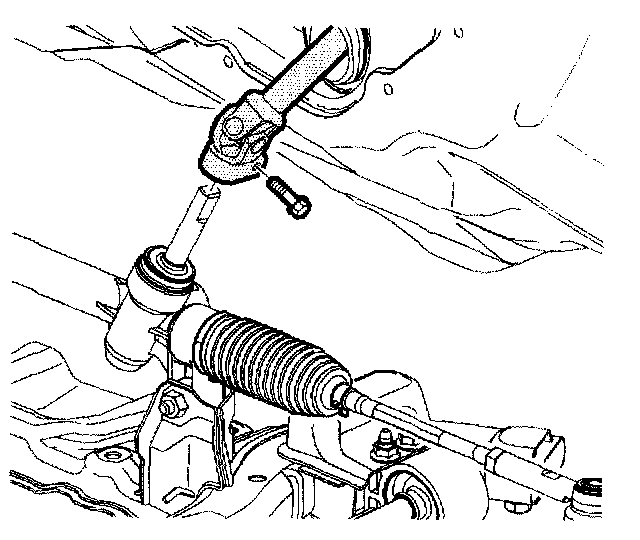

2. Disconnect the intermediate steering shaft from the steering gear.





3. Remove the steering gear to frame bolts.
4. Secure the steering gear upward in order to gain additional clearance.
5. Remove the H02S sensor.

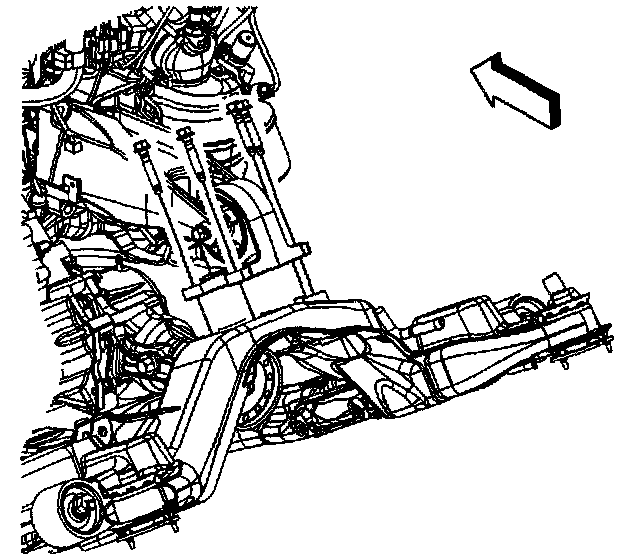

6. Remove the transmission mount bracket to transmission bolts.
7. Remove the transmission mount bracket from the vehicle.

Installation Procedure





1. Position the transmission mount bracket to the transmission.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the transmission mount bracket to transmission bolts.
- Tighten the bolts to 110 Nm (81 ft. lbs.)





3. Install the H02S sensor.
4. Lower the steering gear to the frame.
5. Install the steering gear to frame bolts.
- Tighten the bolts to 110 Nm (81 ft. lbs.).

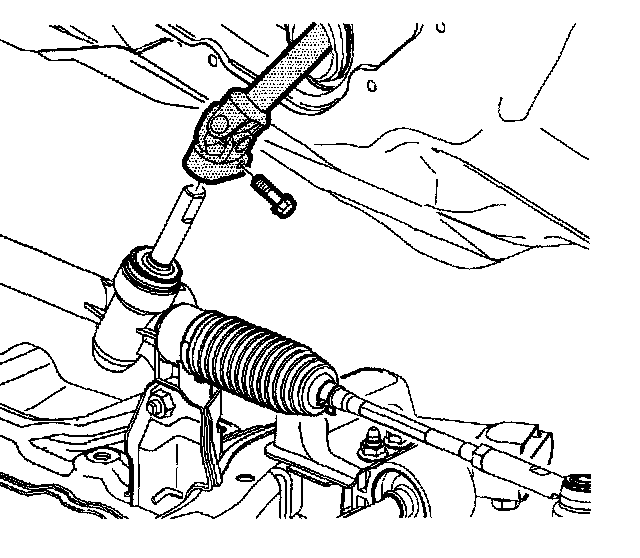

6. Install the intermediate steering shaft to the steering gear.
7. Install the intermediate steering shaft to gear pinch bolt.
- Tighten the bolts to 34 Nm (25 ft. lbs.).





8. Install the rear transmission mount.
