Front

Transmission Mount Replacement - Front

Removal Procedure





1. Remove the battery tray.
2. Disconnect the oxygen sensor connector.
3. Remove the transmission oil level indicator tube.
4. Remove the starter motor.

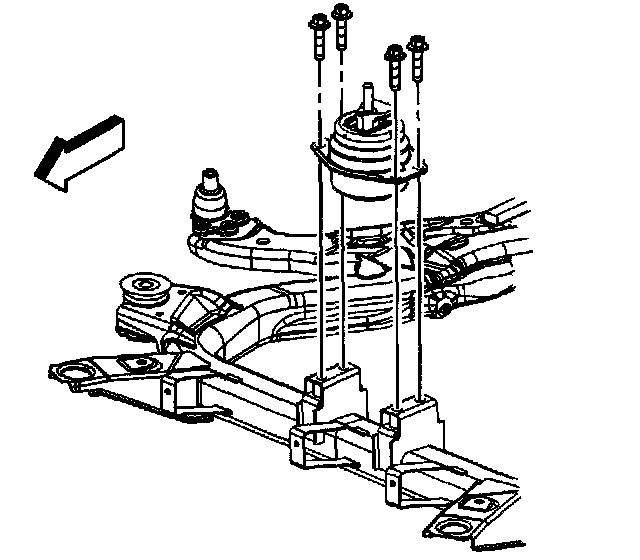

5. Remove the transmission mount-to-frame bolts.

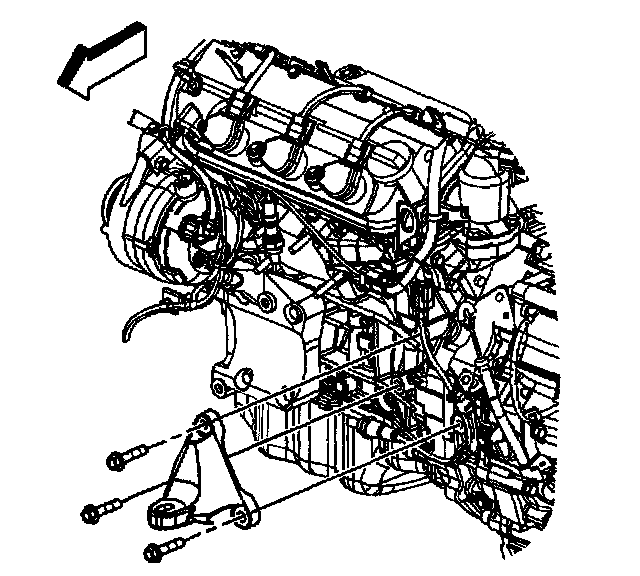

6. Remove the transmission mount bracket-to-transmission bolts.
7. Remove the transmission mount/bracket assembly from the vehicle.

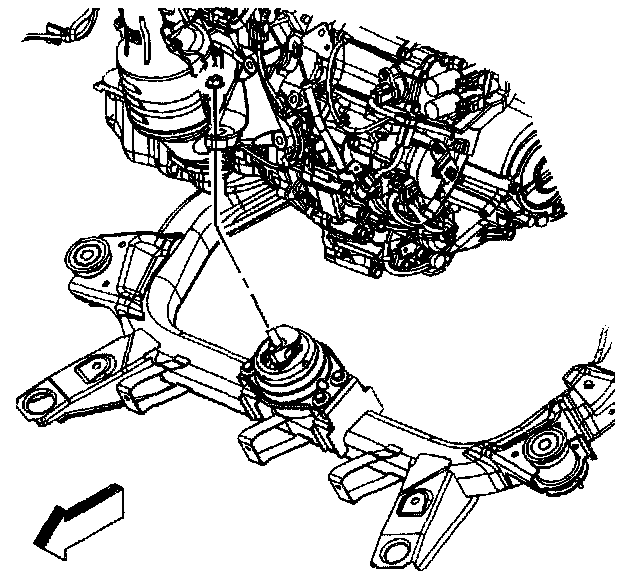

8. Remove the transmission mount bracket top nut.

Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the front transmission mount bracket top nut.
- Tighten the nut to 90 Nm (64 ft. lbs.).
2. Install the transmission mount/mount bracket.

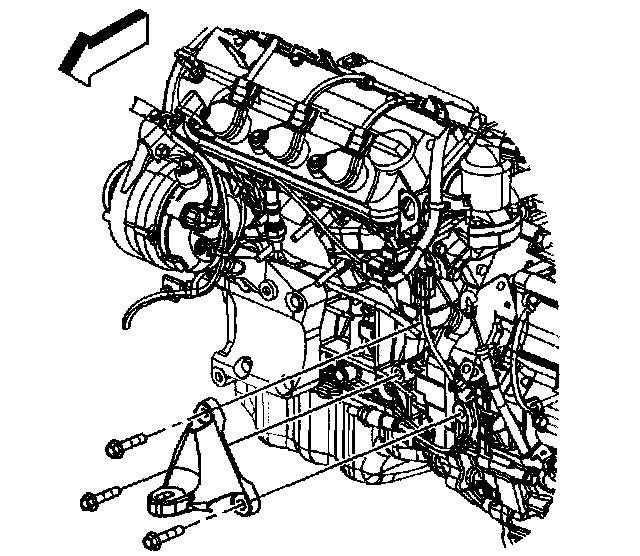

3. Install the transmission mount bracket-to-transmission bolts,
- Tighten the bolts to 50 Nm (37 ft. lbs.).





4. Install the transmission mount-to-frame bolts.
- Tighten the bolts to 50 Nm (37 ft. lbs.).
5. Install the starter motor.
6. Install the transmission oil level indicator tube.
7. Reconnect the oxygen sensor connector.
8. Install the battery tray.
