Left

Automatic Transmission Mount Replacement - Left

Removal Procedure





1. Support the engine.
2. Remove the battery tray.

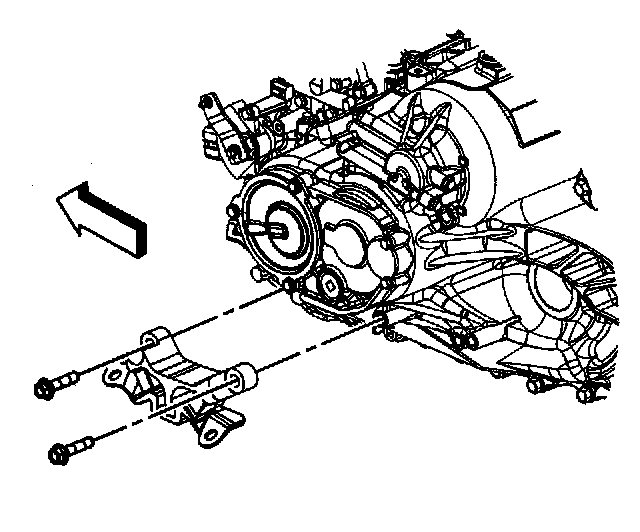

3. Remove the transmission mount to transmission bolts.

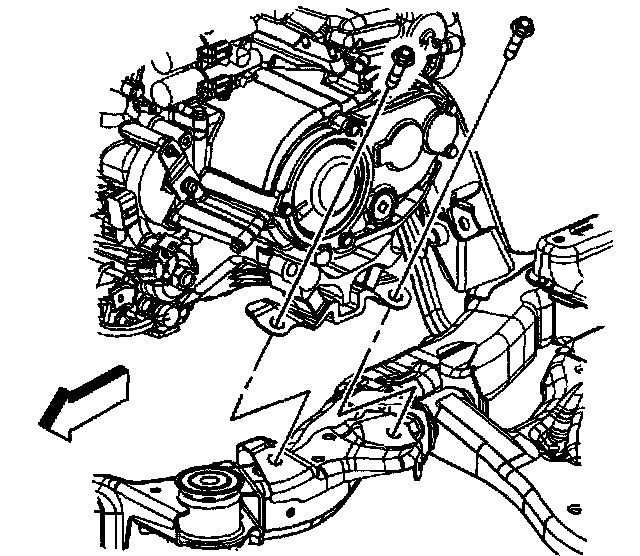

4. Remove the transmission mount to frame rail bolts.
5. Remove the mount from the engine.

Installation Procedure





1. Position the transmission mount on the frame rail.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the transmission mount to frame rail bolts.
- Tighten the bolts to 50 Nm (37 ft. lbs.).





3. Install the transmission mount to transmission bolts.
- Tighten the bolts to 50 Nm (37 ft. lbs.).
4. Install the battery tray.
5. Remove the engine support.
