Rear
Automatic Transmission Mount Replacement - RearRemoval Procedure
1. Raise and support the vehicle.
2. Remove both front tires and wheels.

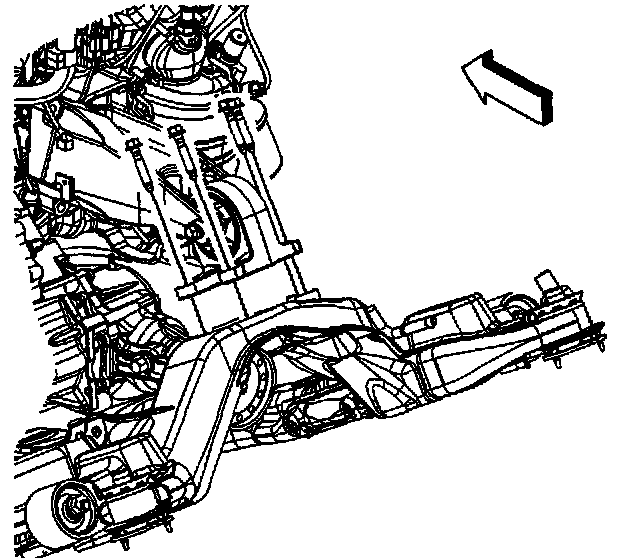

3. If equipped with AWD, disconnect the stabilizer links from the stabilizer shaft.
4. If equipped with AWD, swing the stabilizer shaft upwards in order to gain additional clearance.
5. Remove the transmission mount-to-bracket through bolt.
6. Remove the transmission mount-to-frame bolts.
7. Remove the transmission mount from the vehicle.
Installation Procedure
1. Position the transmission mount to the frame.
Notice: Refer to Fastener Notice in Cautions and Notices.
2. Install the transmission mount-to-frame bolts.
- Tighten the bolt to 50 Nm (37 ft. lbs.).
3. Install the transmission mount-to-bracket through bolt, while aligning the transmission Mount to the bracket.
- Tighten the bolt to 110 Nm (81 ft. lbs.).
4. If equipped with AWD, lower the stabilizer shaft and connect the stabilizer links.
- Tighten the stabilizer link nuts to 65 Nm (48 ft. lbs.).
5. Install both front tires and wheels.
6. Lower the vehicle.
7. Start the engine and check for excessive idle vibration. If excessive engine vibration is present, perform the powertrain balance procedure.
