Air Cleaner Housing: Service and Repair

AIR CLEANER ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE

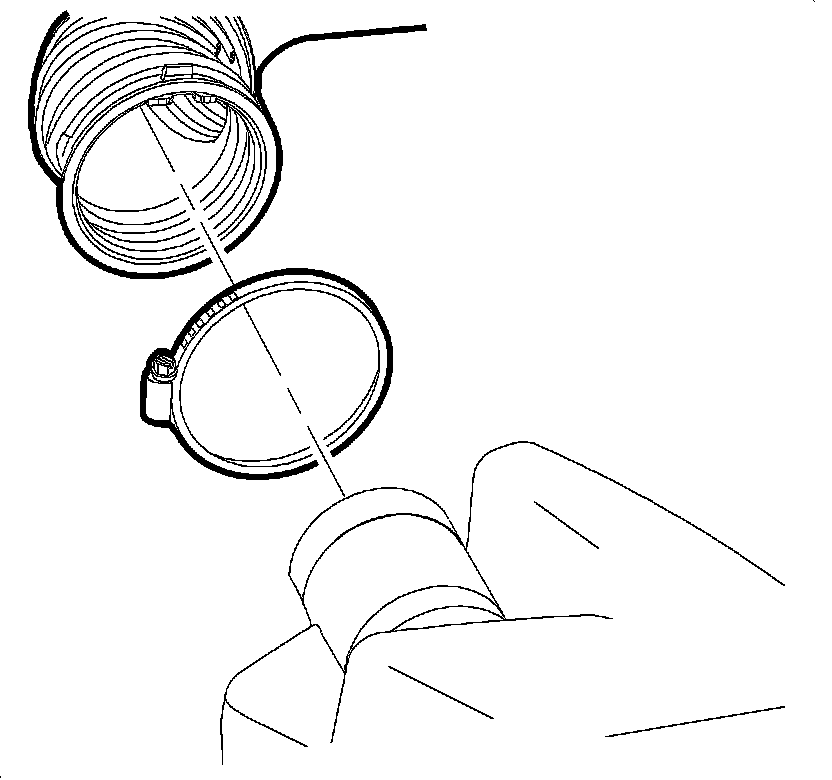

1. Loosen the clamp at the air cleaner assembly.
2. Disconnect the IAT 1 sensor connector.




3. Remove the air cleaner assembly top cover and filter element.




4. Remove the air cleaner assembly bolt.
5. Remove the air cleaner assembly.

INSTALLATION PROCEDURE




1. Install the air cleaner assembly into position, aligning locking pins into the front panel.
2. Install the air cleaner attachment bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolt to 10 N.m (89 lb in).




3. Install the filter element and air cleaner assembly top cover.




4. Tighten the clamp at the air cleaner assembly.

Tighten the clamp to 4 N.m (35 lb in).

5. Connect the IAT 1sensor connector.
