Oiling System

Oiling System

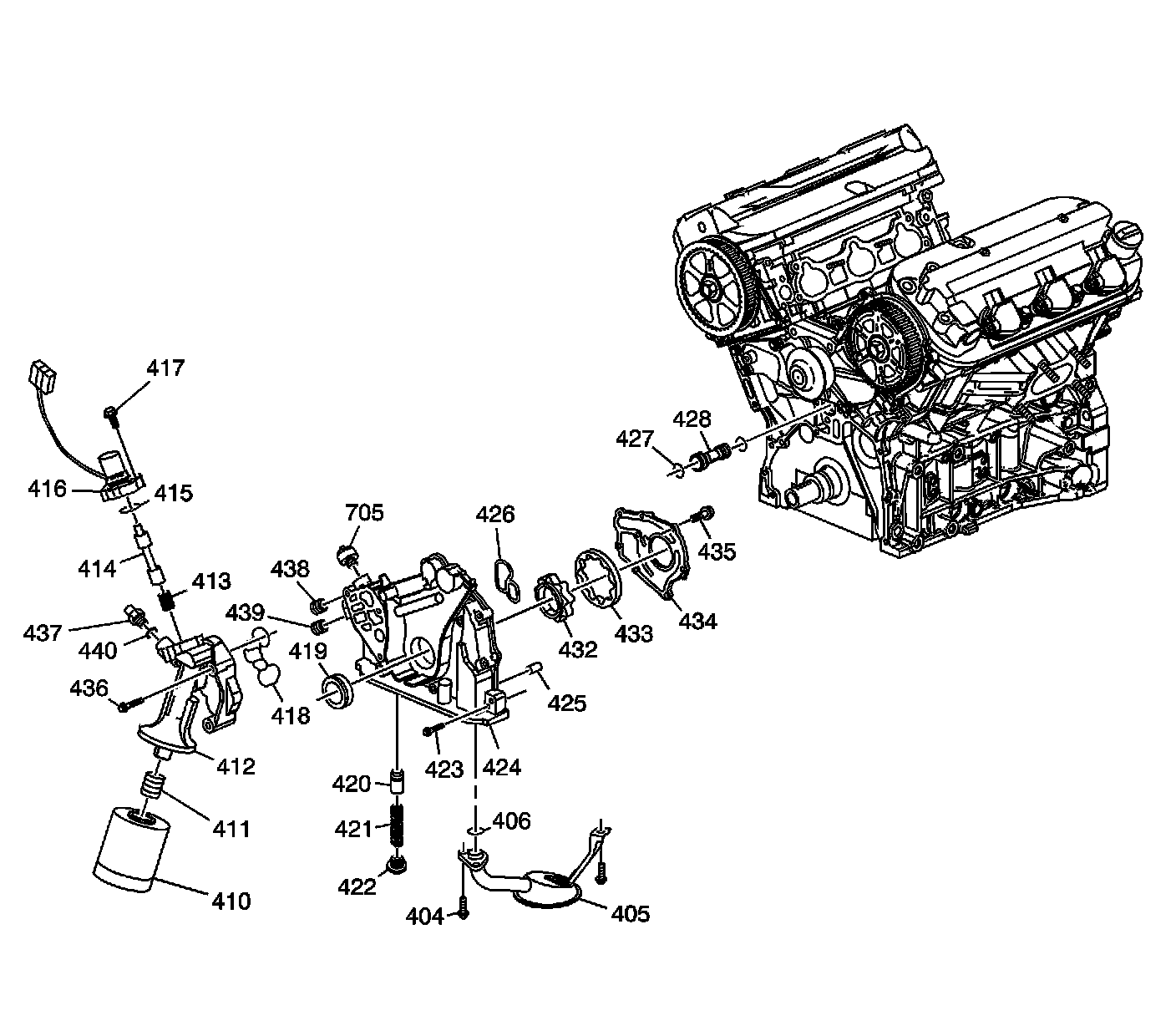

Oiling System:





404 - Bolt
405 - Screen
406 - O-Ring
410 - Oil Filter
411 - Fitting
412 - Oil Flow Control Module
413 - Spring
414 - Valve
415 - O-Ring
416 - Solenoid
417 - Bolt
418 - O-Ring - With Screen
419 - Seal
420 - Valve
421 - Spring
422 - Bolt
423 - Bolt
424 - Oil Pump
425 - Pin
426 - O-Ring
427 - O-Ring
428 - Oil Transfer Pipe
432 - Rotor - Inner
433 - Rotor - Outer
434 - Cover
435 - Bolt
436 - Bolt
437 - Oil Flow Control Switch
438 - Plug
439 - Plug
440 - O-Ring
705 - Oil Pressure Switch
