Overhead Console - VES Replacement

OVERHEAD CONSOLE - VES REPLACEMENT

REMOVAL PROCEDURE

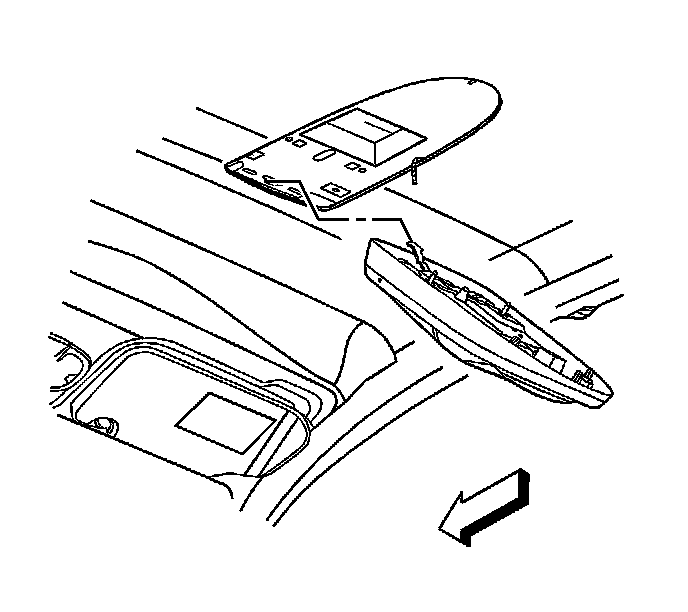

1. Flip down the display screen and remove the fasteners.

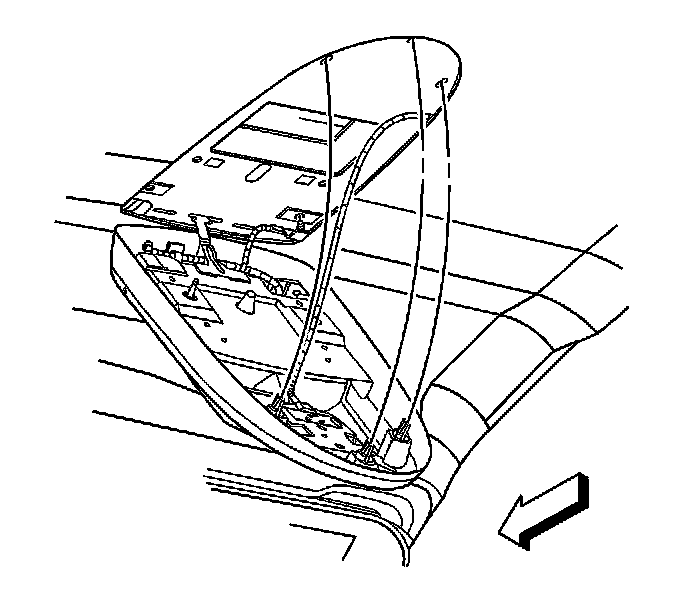

2. Pull down on the rear of the console to disengage the retaining clips.

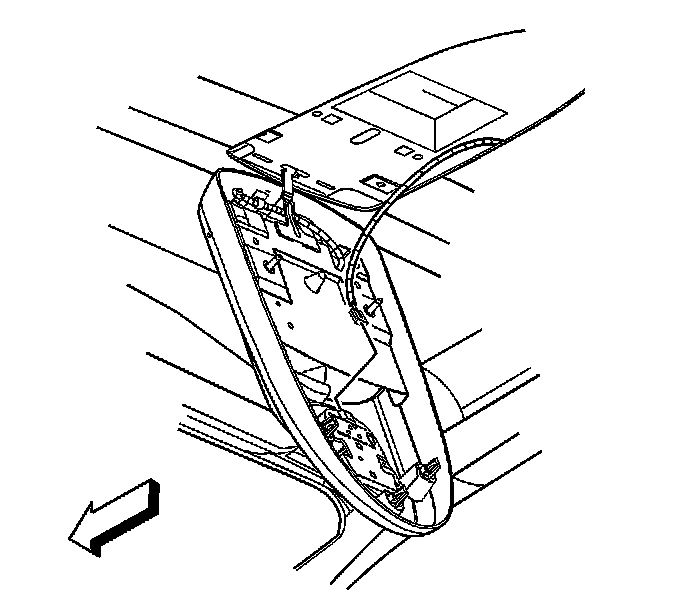

3. Disconnect the electrical connections.




4. Remove the retaining tab from the slot and remove the console from the vehicle.

INSTALLATION PROCEDURE




1. Install the console and slide the retaining tab into the slot.




2. Connect the electrical connectors.




3. Push up on the rear of the console to engage the retaining clips.




4. Install the fasteners and fold up the display screen.

Tighten the fasteners to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.
