Fog/Driving Lamp: Service and Repair



FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the headlamp.

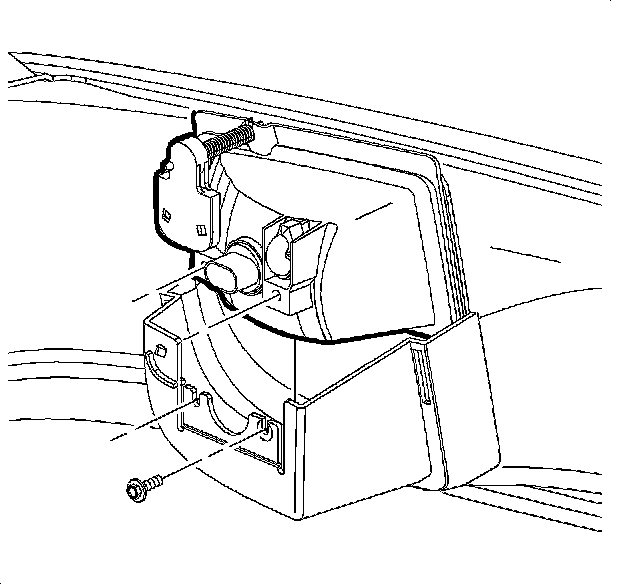

2. Using a small flat blade screwdriver free the fog lamp adjuster bracket from the fascia.
3. Loosen the fog lamp to fascia screws.
4. Remove the fog lamp from the fascia.

INSTALLATION PROCEDURE




1. Position the fog lamp in the front fascia pocket.
2. Install the fog lamp adjuster bracket onto the fascia.
3. Install the front fog lamp screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 4 N.m (35 lb in).

4. Install the headlamp.
