5AT

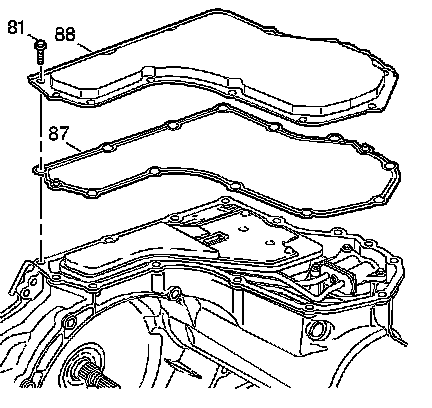

Install the gasket (87) and bottom pan (88) onto the transmission case.

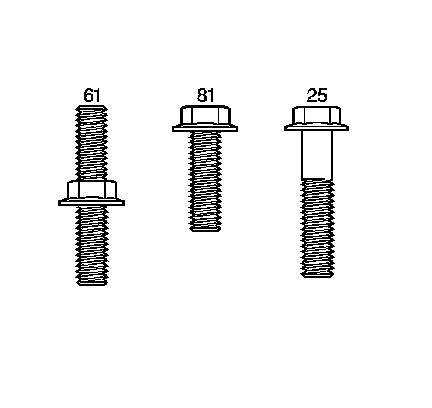

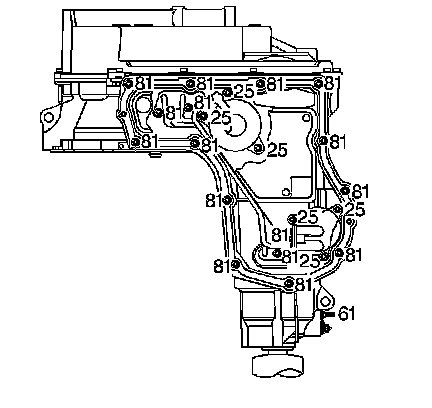

^ Install the twelve bottom pan bolts (81).





^ Notice: Hand start the bolts.

Tighten the bottom pan bolts to 14 Nm (124 inch lbs.).
