Transmission Oil Level Indicator Tube Replacement



Transmission Oil Level Indicator Tube Replacement

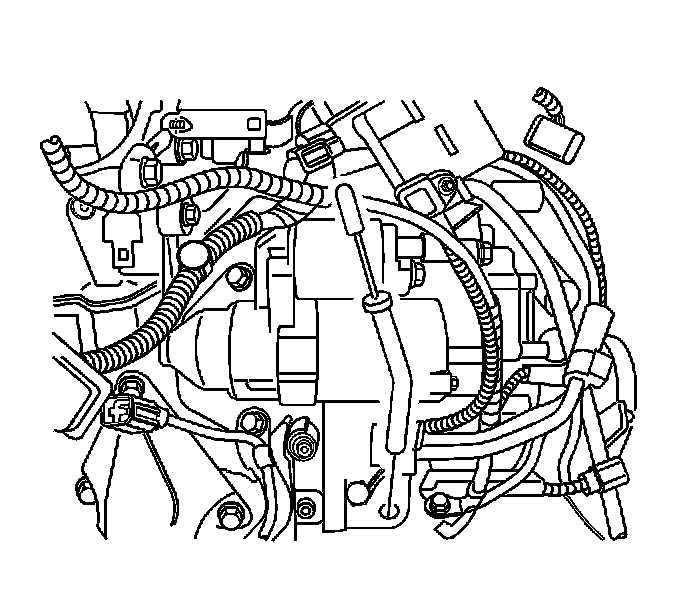

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Remove the oil indicator tube bolt.
3. Remove the oil indicator and tube.

Installation Procedure





1. Install the oil indicator and tube into the transmission case assembly.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the oil indicator tube bolt.
^ Tighten the bolt to 12 Nm (106 inch lbs.).
