Torque Converter: Service and Repair



Torque Converter, Turbine Shaft Seal Replacement
Removal Procedure
1. Remove the transmission assembly from the vehicle.





2. Remove the torque convertor assembly from the transmission.

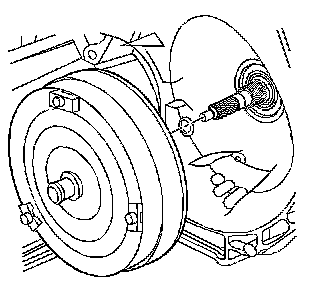

3. Remove the torque convertor O-ring seal from the end of the turbine shaft. Use a screwdriver.

Installation Procedure
1. Install a new torque convertor O-ring seal on the end of the turbine shaft.





2. Install the torque convertor onto the transmission.
3. Install the transmission into the vehicle.
4. Adjust the transmission oil level. Refer to Transmission Fluid Checking Procedure. Transmission Fluid Checking Procedure
