Part 2



Thread Repair Specifications

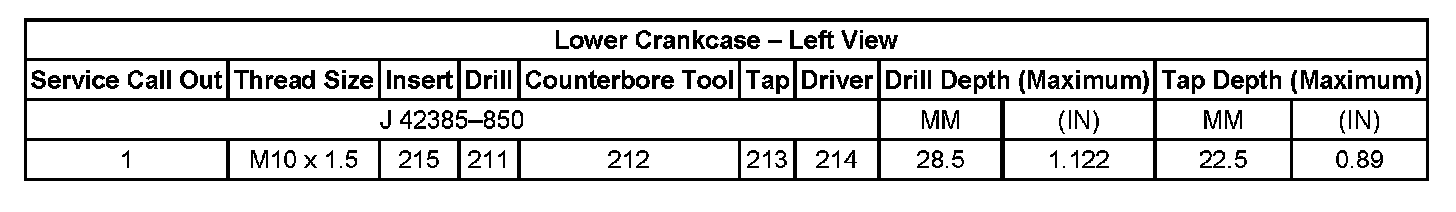

Lower Crankcase - Left View:




Lower Crankcase - Left View:

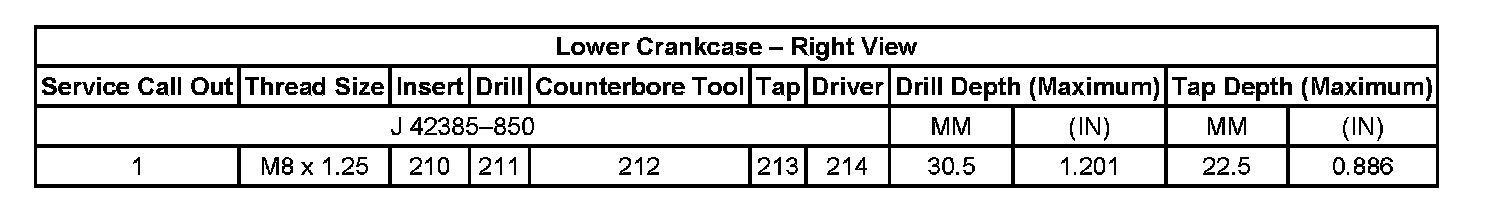

Lower Crankcase - Right View:




Lower Crankcase - Right View:

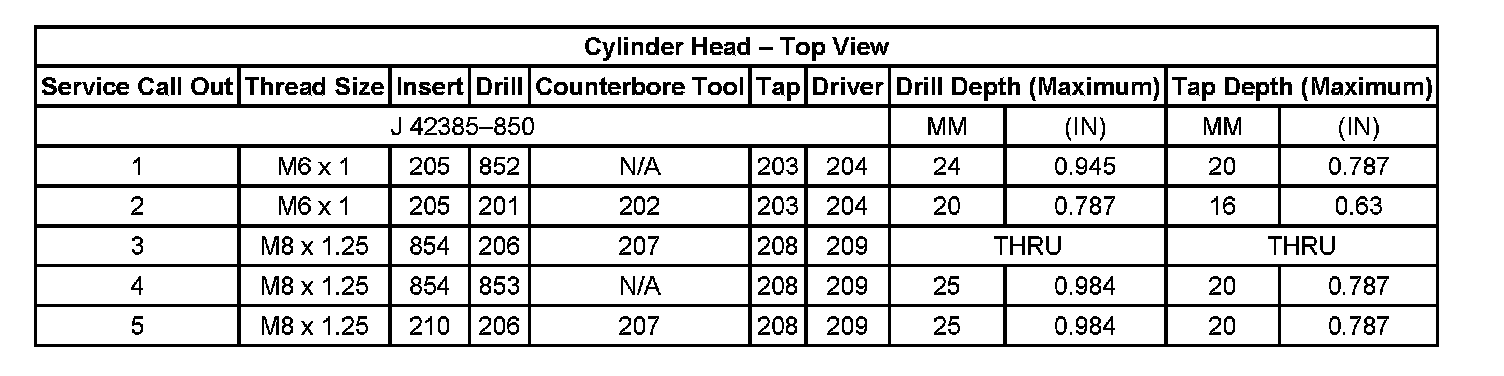

Cylinder Head - Top View:




Cylinder Head-Top View:

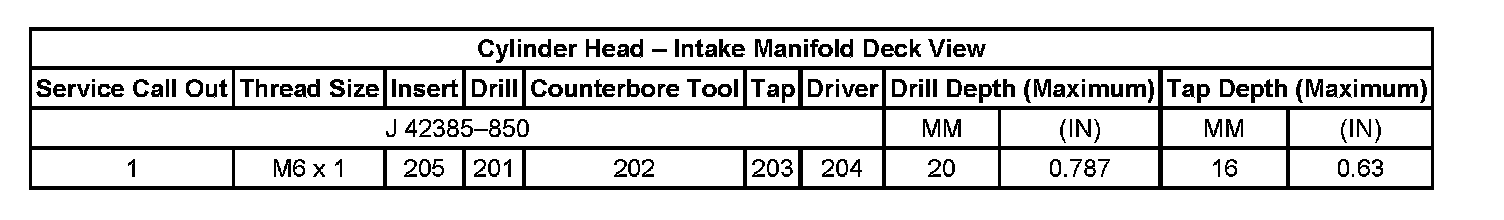

Cylinder Head - Intake Manifold Deck View:




Cylinder Head-Intake Manifold Deck View:

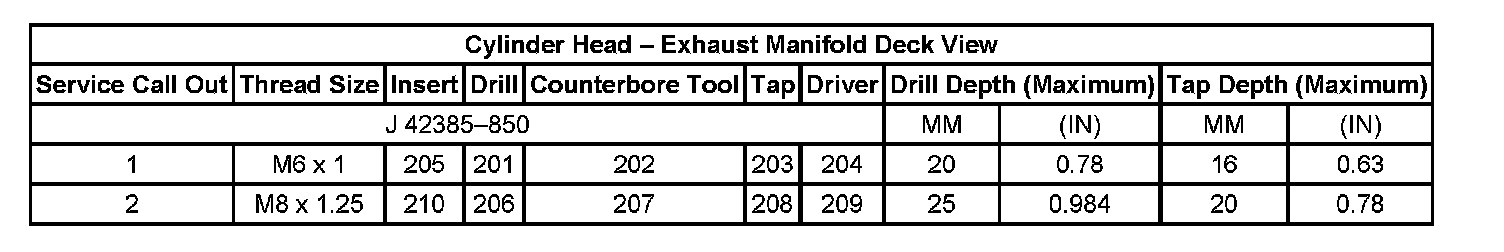

Cylinder Head - Exhaust Manifold Deck View:




Cylinder Head-Exhaust Manifold Deck View:

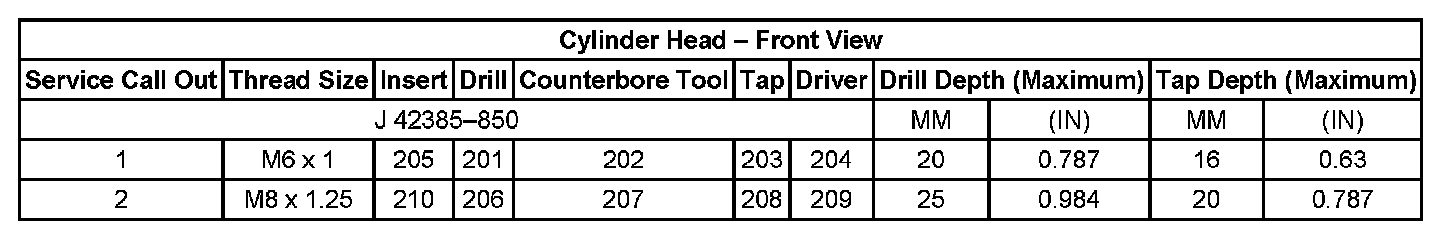

Cylinder Head - Front View:




Cylinder Head-Front View:




Cylinder Head - Back View:




Cylinder Head-Back View:

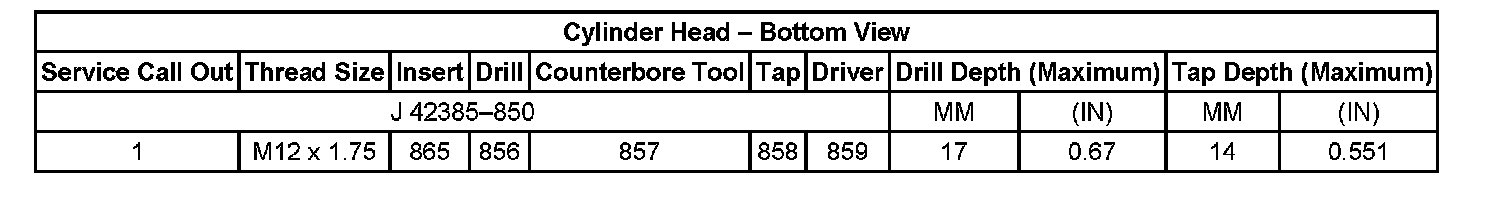

Cylinder Head - Bottom View:




Cylinder Head-Bottom View:
