Mirror Replacement - Manual

MIRROR REPLACEMENT - MANUAL

REMOVAL PROCEDURE
1. Remove the front door water deflector.




2. Remove the outside rearview mirror nuts from the inside door.
3. Remove the outside rearview mirror (1) from the front door and the seal (2).

INSTALLATION PROCEDURE




1. Position the outside rearview mirror (1) to the front door, ensuring the seal (2) is in position.
2. Install the outside rearview mirror nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

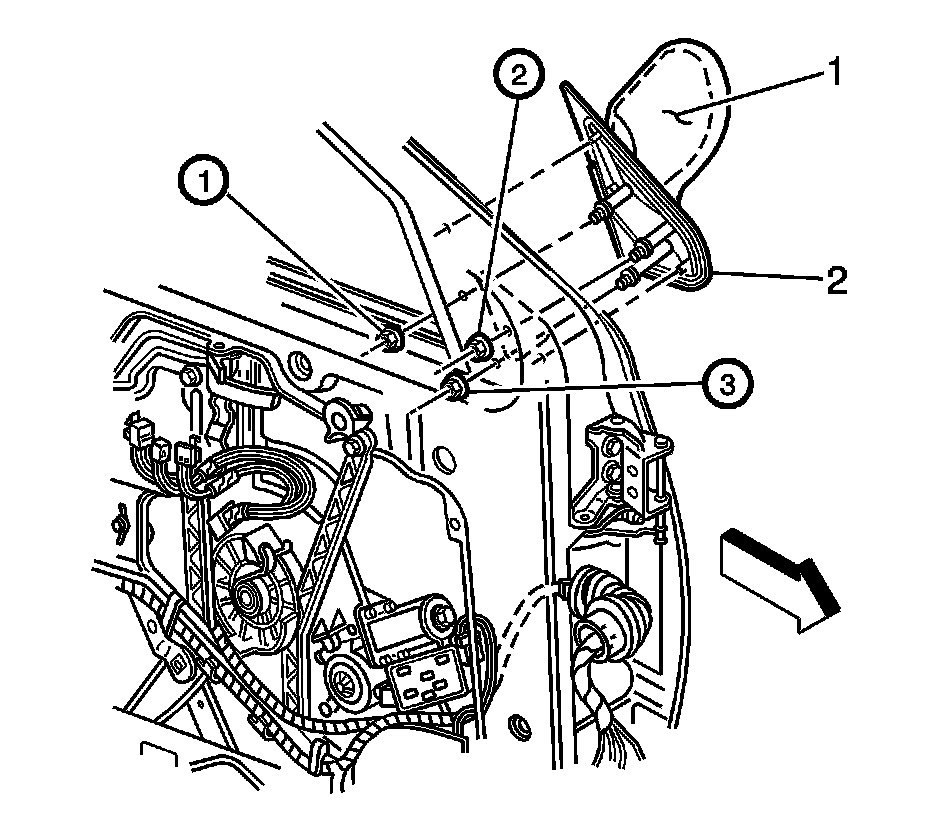

Tighten the nuts, in sequence as shown, to 10 N.m (89 lb in).

3. Install the front door water deflector.
