Cooling System: Locations

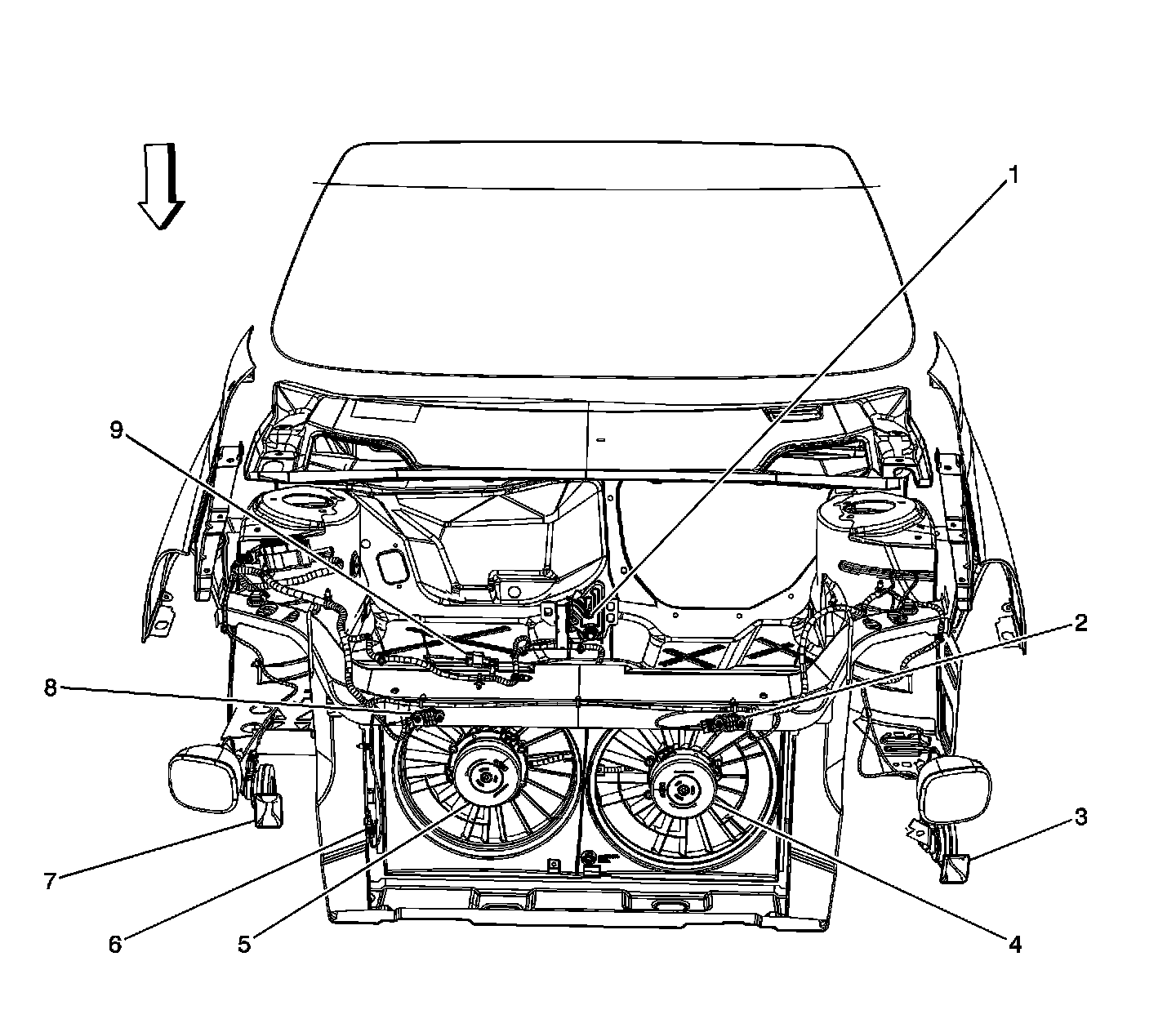

Cooling System Component Views Engine Compartment Components - Forward Lamp Harness:
1 - Hood Ajar Switch (AP3)
2 - Inflatable Restraint Front End Sensor - Left
3 - Horn - Left
4 - Cooling Fan - Left
5 - Cooling Fan - Right
6 - Ambient Air Temperature Sensor (UH8 or UH9)
7 - Horn - Right
8 - Inflatable Restraint Front End Sensor - Right
9 - Hood Ajar Switch Connector (AP3)
