Courtesy Lamp: Service and Repair

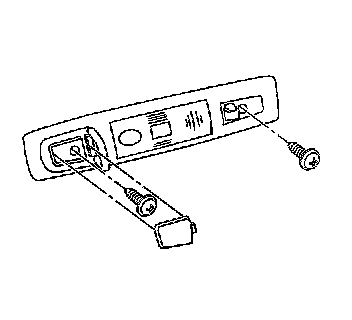

ROOF SIDE RAIL LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Using a small, flat-bladed tool, remove the coat hook access hole cover from the roof side rail lamp.
2. Remove the screws from the roof side rail lamp.




3. Remove the roof side rail lamp from the roof.
4. Disconnect the electrical connectors from the roof side rail lamp.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the roof side rail lamp.
2. Install the roof side rail lamp to the roof.




3. Install the screws to the roof side rail lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

4. Snap the coat hook access hole cover back into place on the roof side rail lamp.
