Electrical Diagrams



ENGINE CONTROLS SCHEMATICS

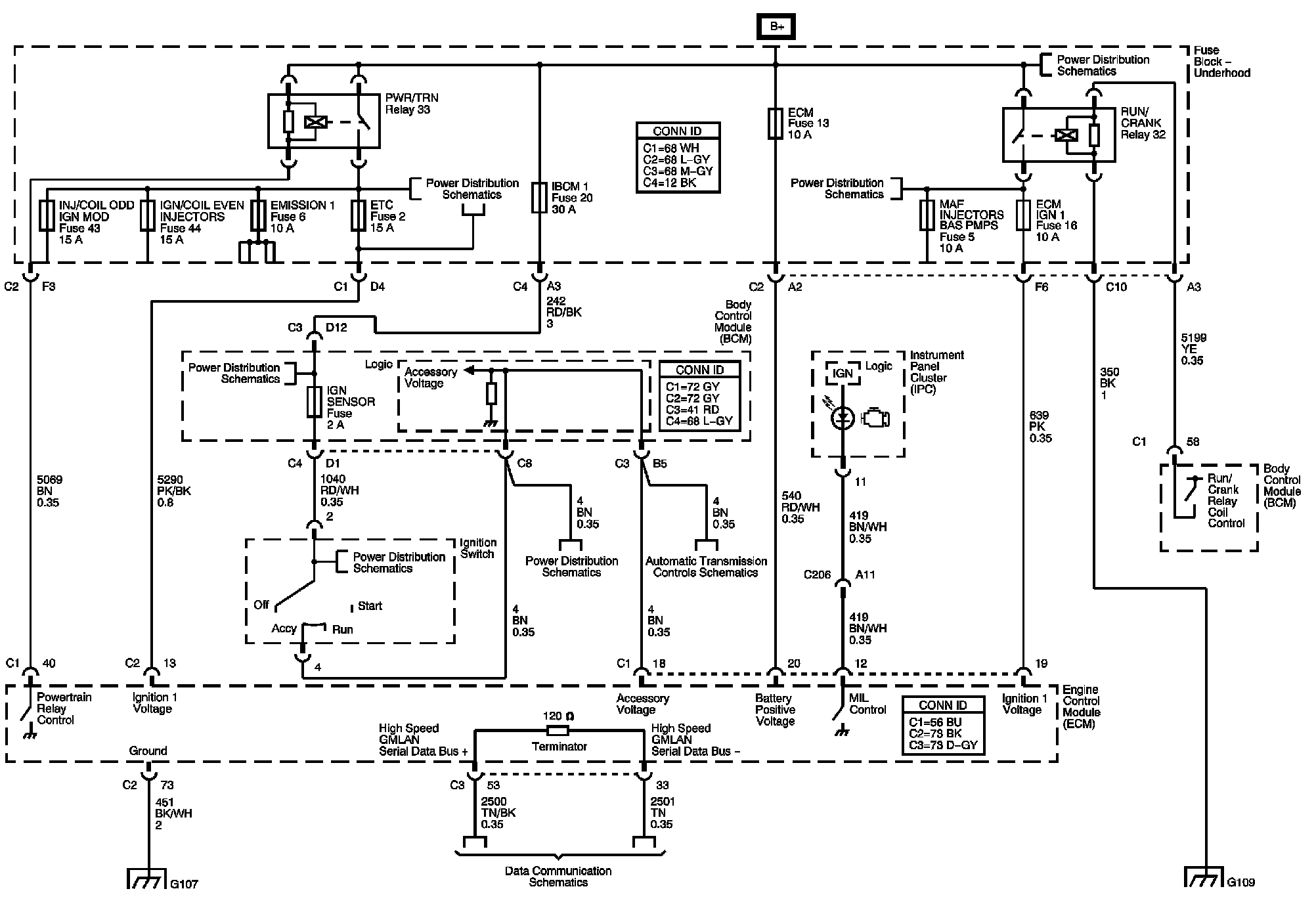

Power, Ground, Serial Data and MIL

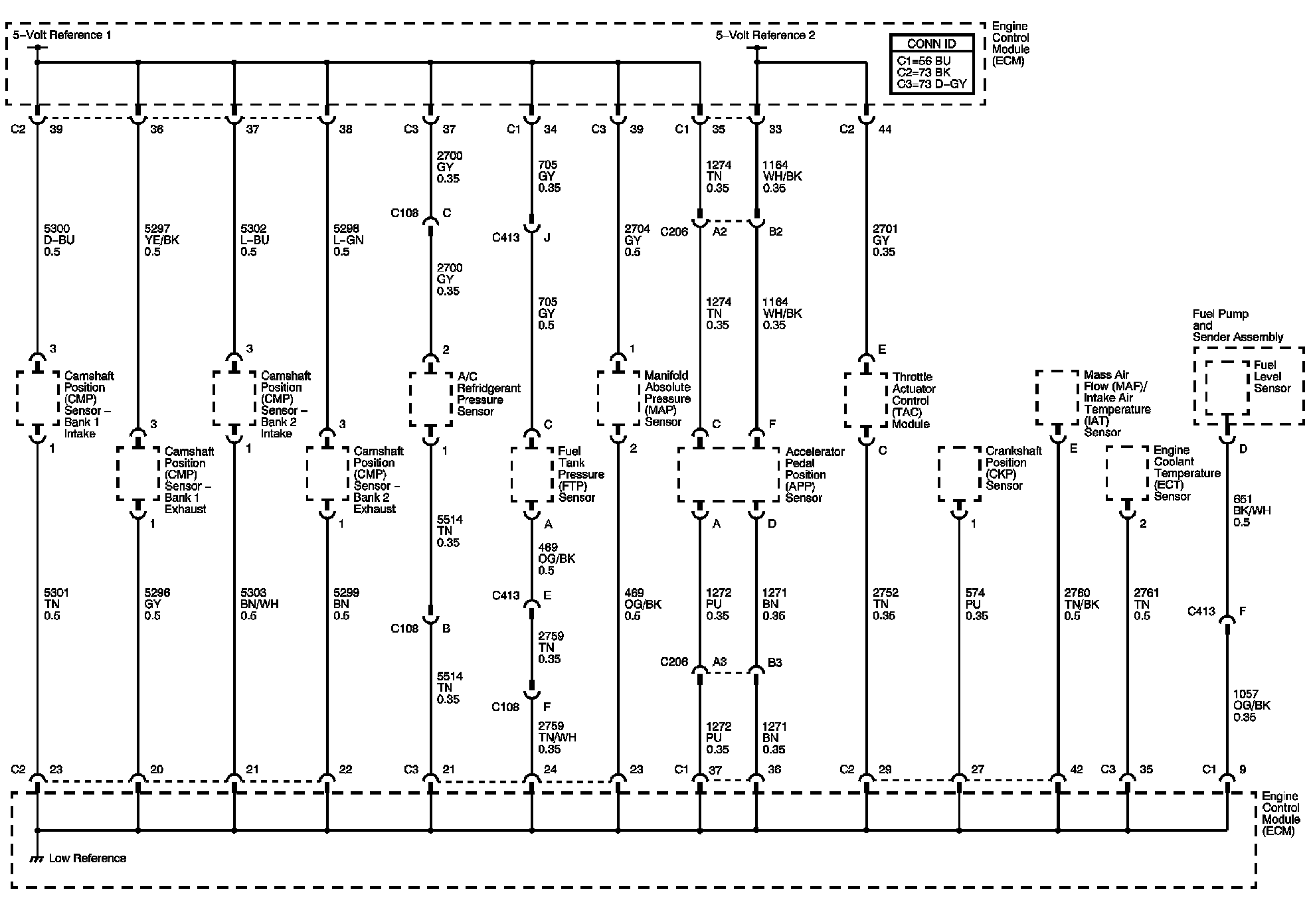

5-Volt and Low References







ECT, MAF/IAT and MAP Sensors

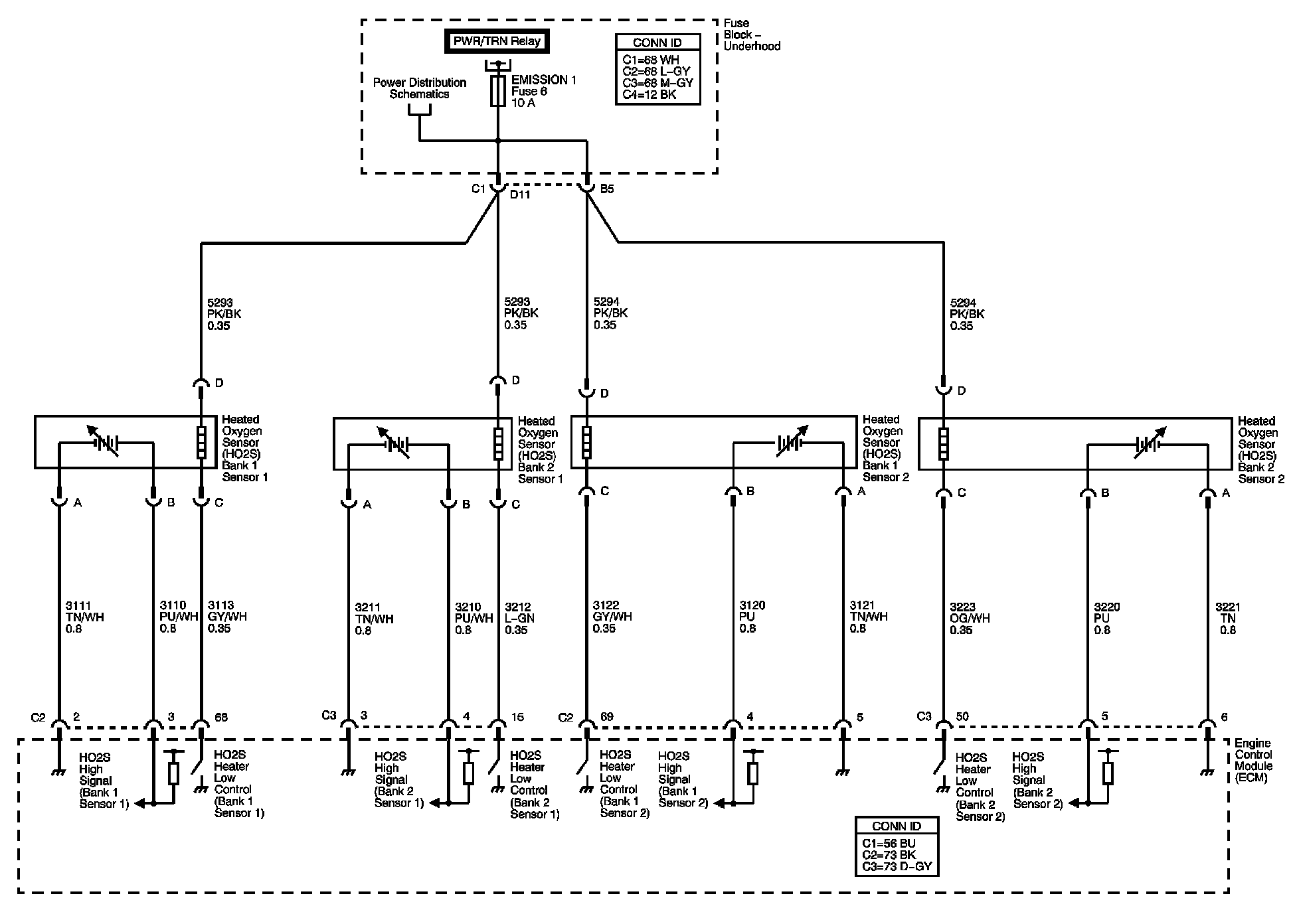

Heated Oxygen Sensors

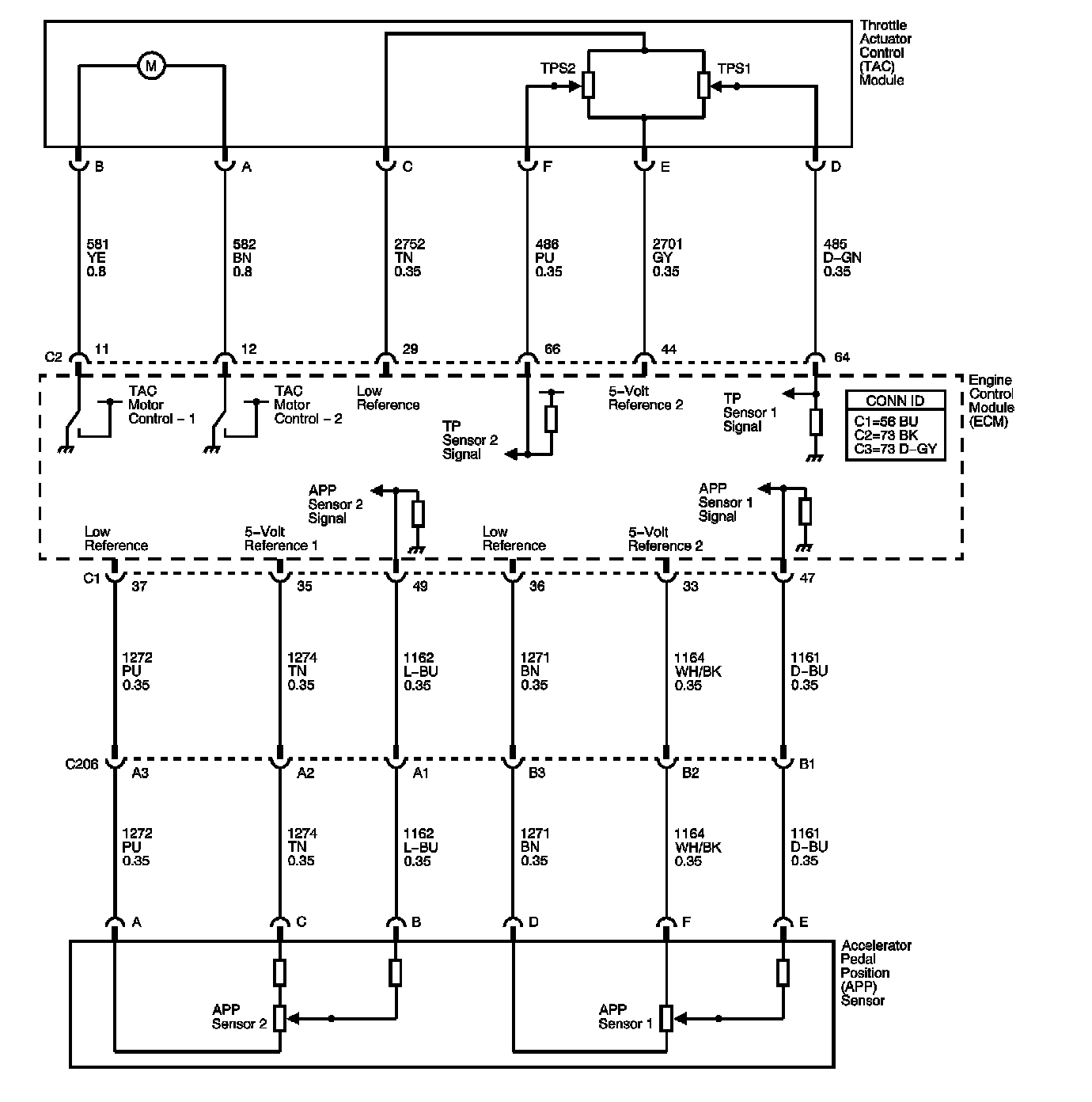

Electronic Throttle Controls







Ignition System

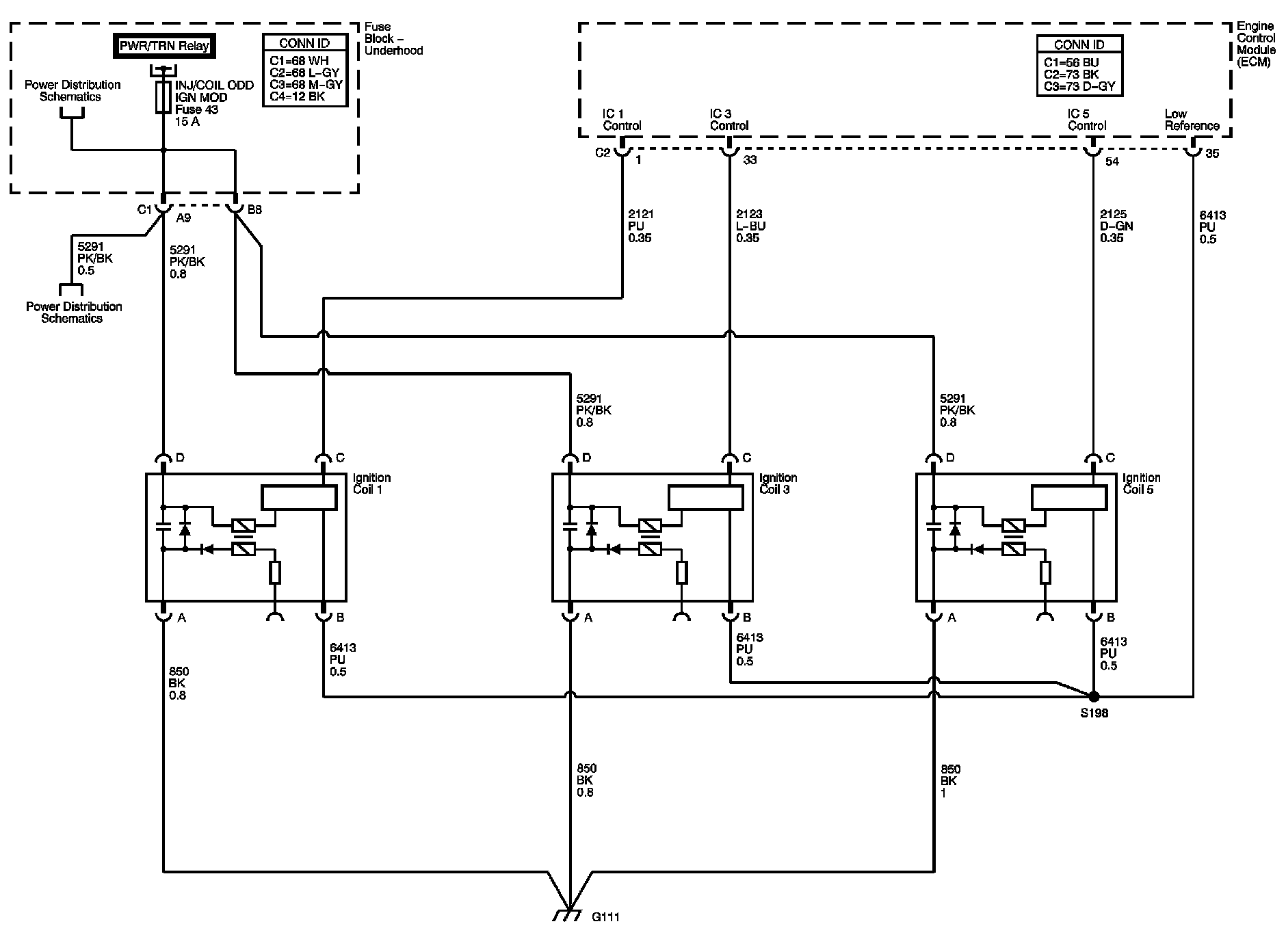

Bank 1 Ignition Coils

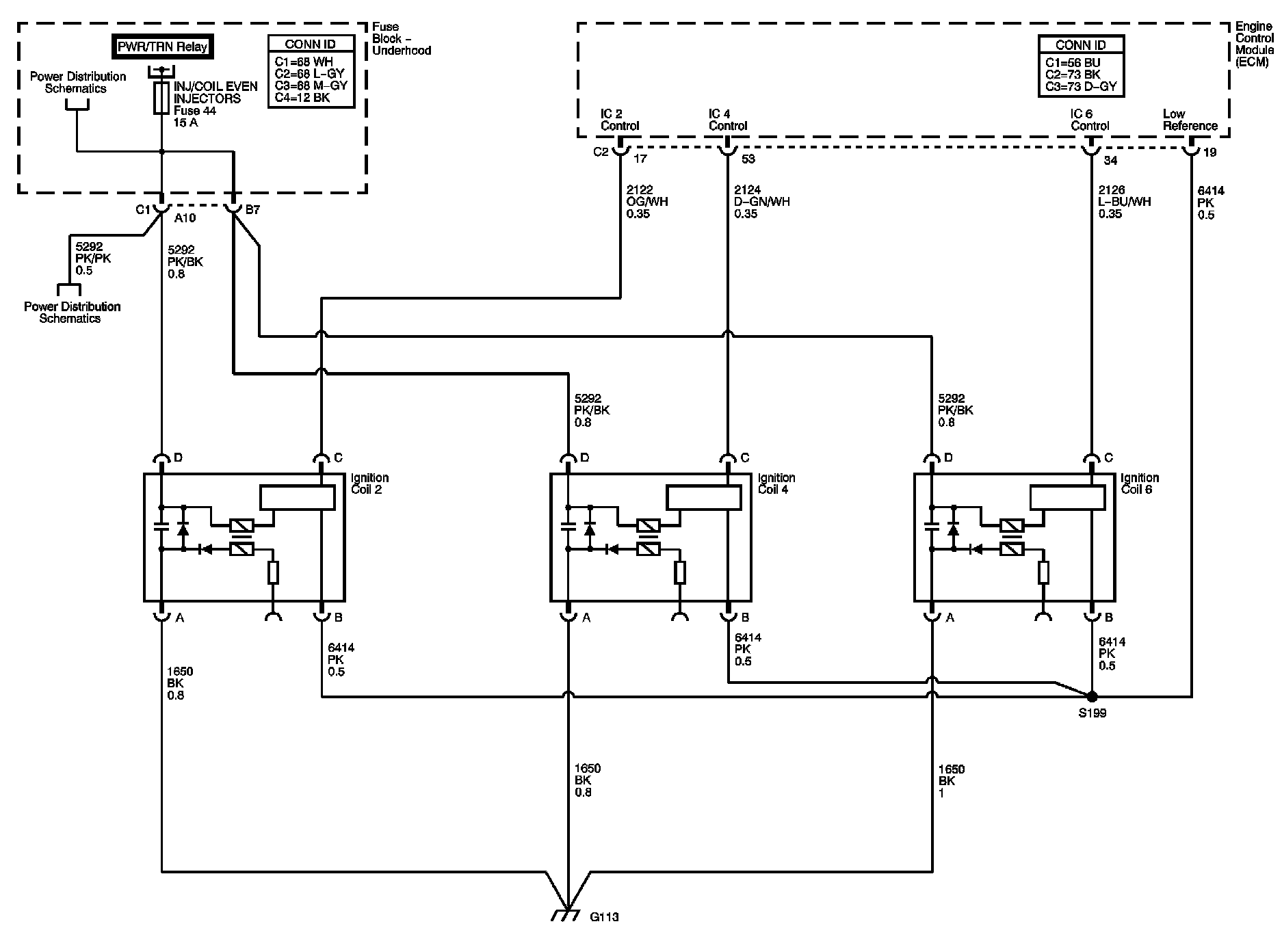

Bank 2 Ignition Coils

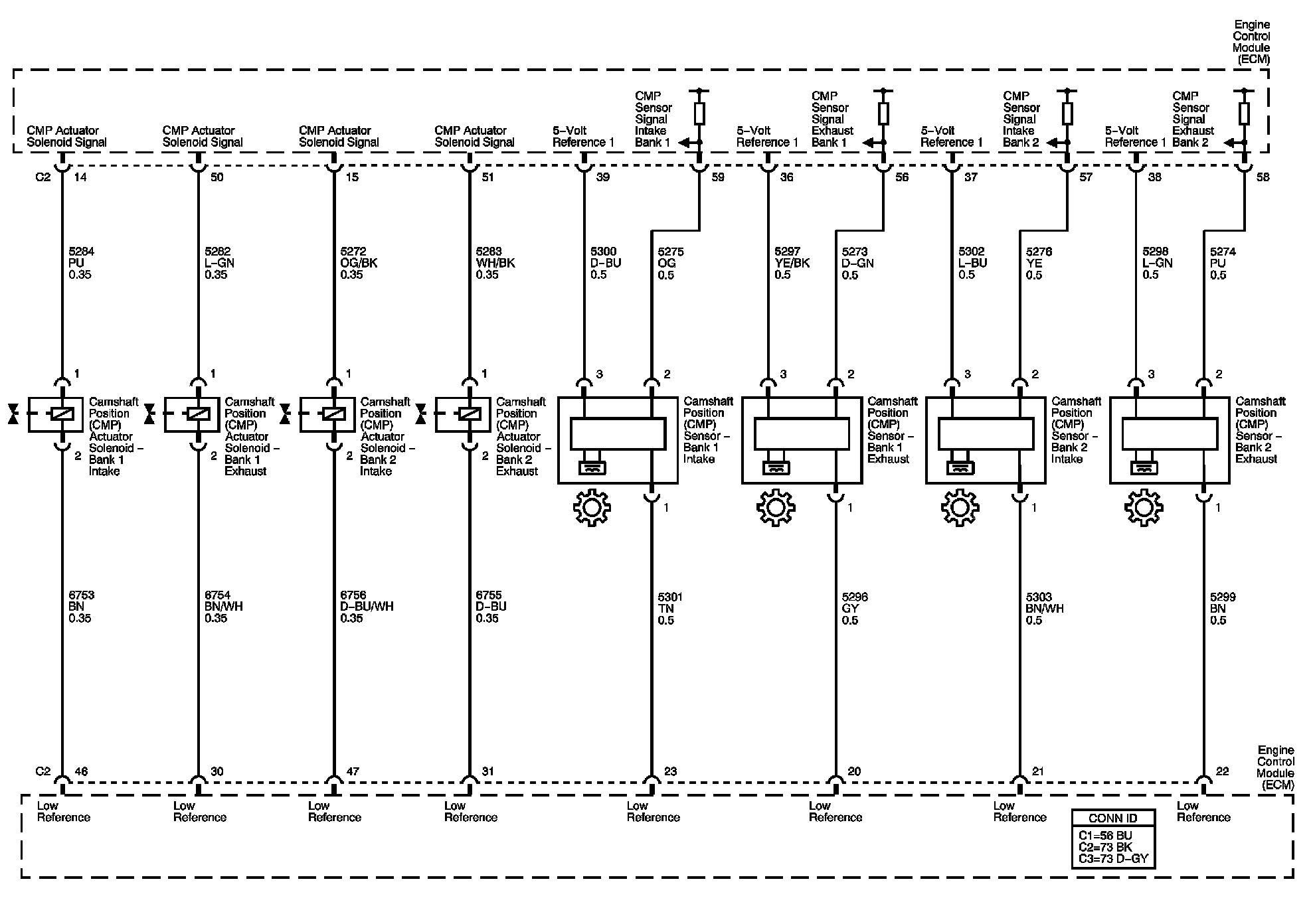

Camshaft Position (CMP) Sensors and Solenoids

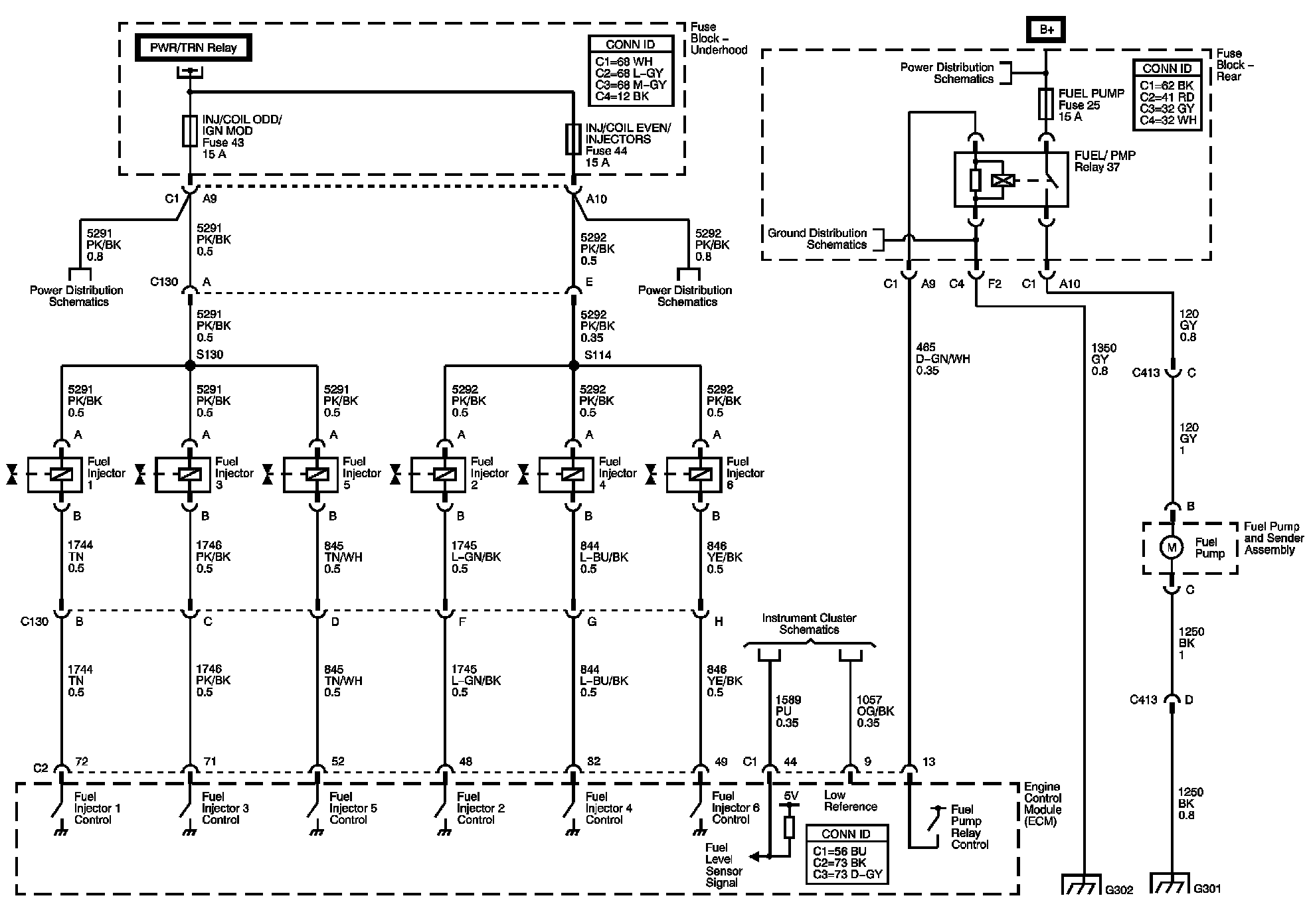

Fuel Pump Controls

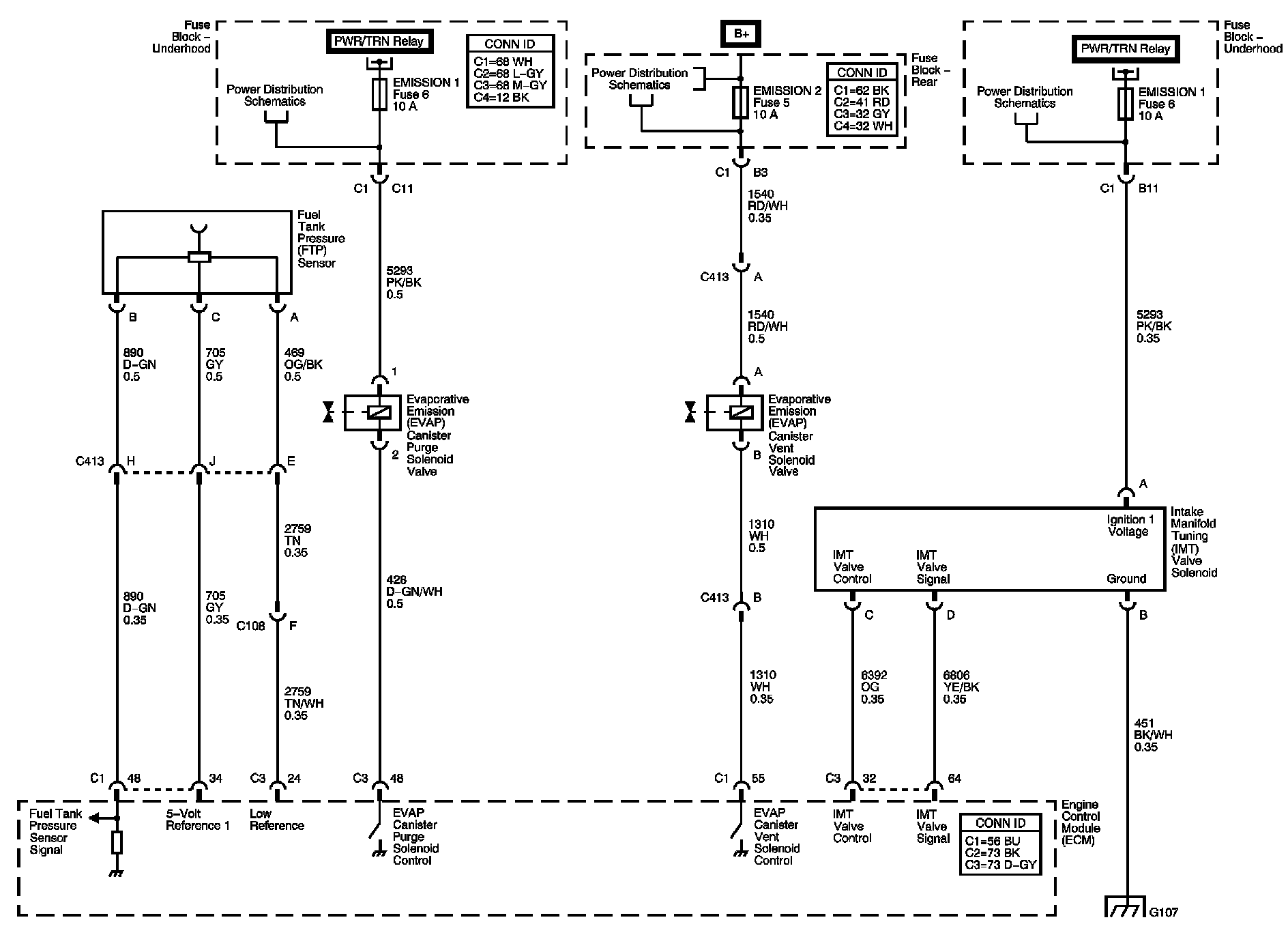

EVAP Controls and FTP Sensor

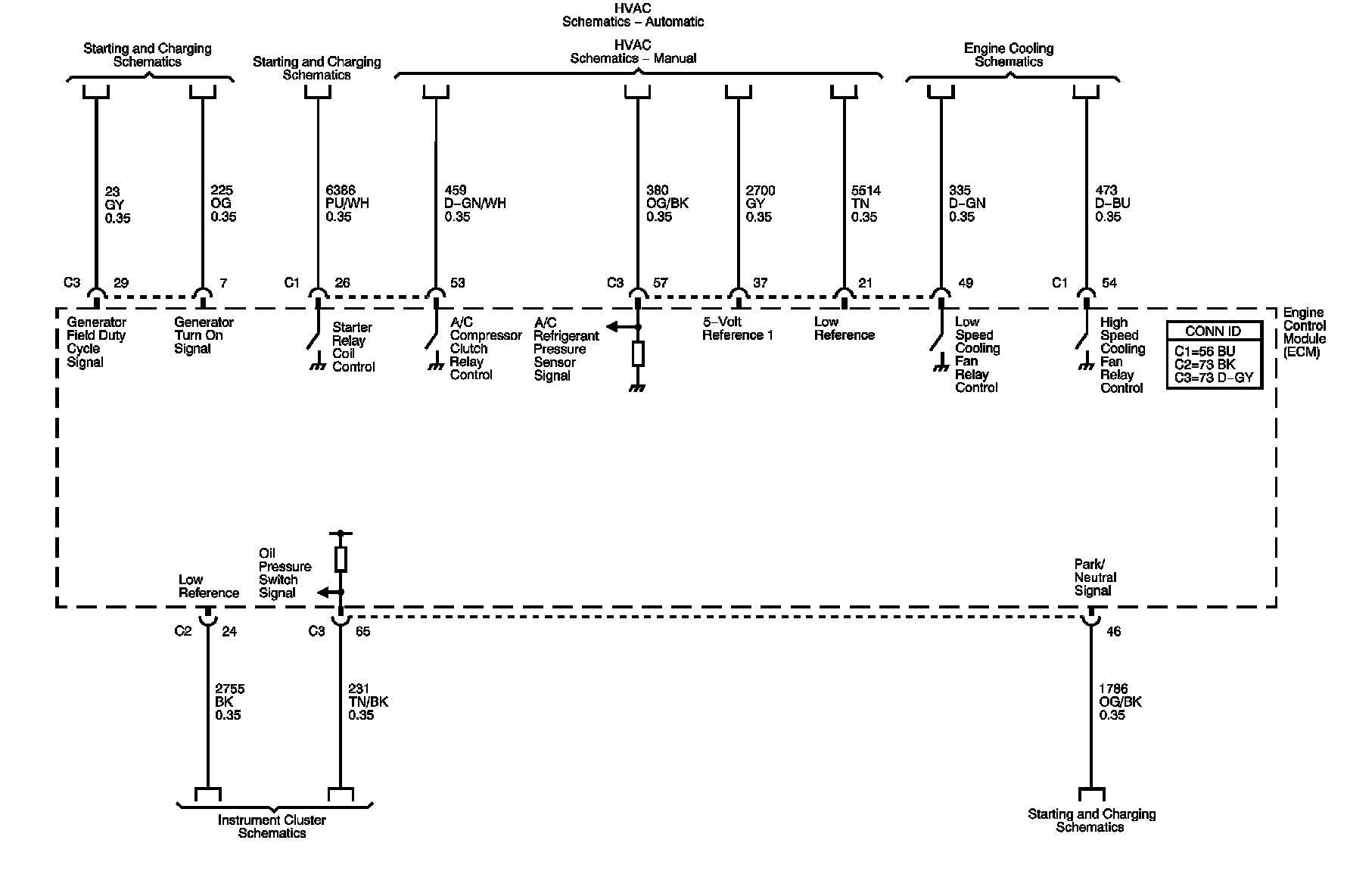

Controlled/Monitored Subsystem References








Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
