I/P Views



Power and Grounding Component Views

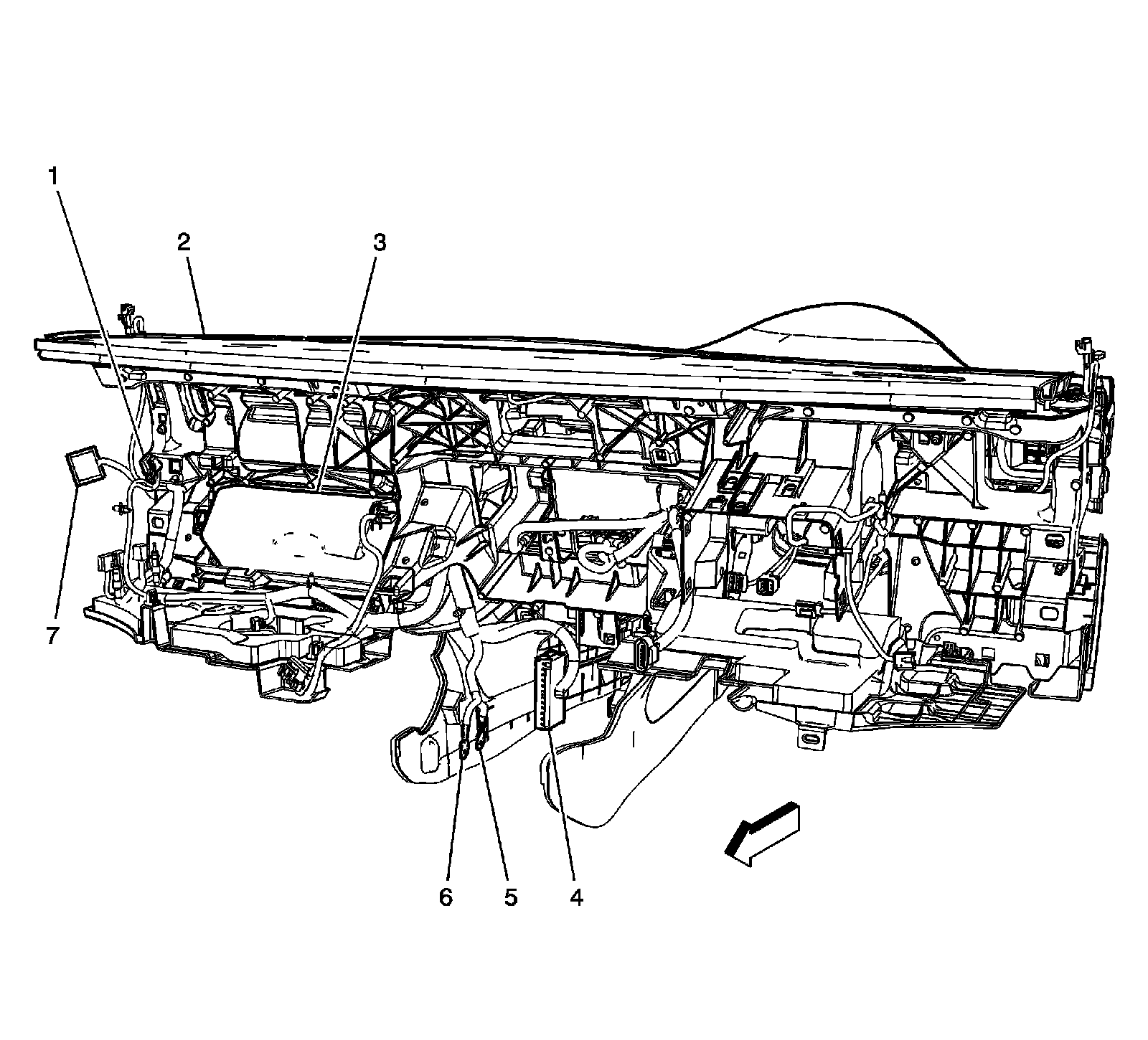

I/P Harness - Rear Of Carrier




1 - C291 (Coaxial) (UE1)
2 - I/P Upper Trim
3 - I/P Compartment
4 - Body Control Module (BCM) C4
5 - G201
6 - G203
7 - C207
