Digital Radio Antenna Replacement

Digital Radio Antenna Replacement

Removal Procedure

Notice: DO NOT apply paint or clear coat to the antenna. This will damage the function of the antenna, causing poor reception or loss of signal reception.

Notice: Use care when removing or installing the headliner. Excessive bending will damage the headliner.

1. Lower the headliner. Refer to Headlining Trim Panel Replacement (w/o Sunroof) Headlining Trim Panel Replacement (with Sunroof).

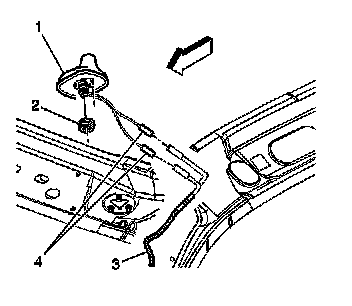

2. Disconnect the cables (4) from the antenna base (1).
3. Remove the retaining nut (2).
4. Remove the antenna base (1) from the top of the roof.

Installation Procedure




1. Place the antenna base (1) to the roof opening.

Notice: Refer to Fastener Notice.

2. Install the retaining nut (2).

Tighten the nut to 3.5 N.m (30 lb in).

3. Connect the antenna cables (4).
4. Install the headliner.
