Front Fender Bracket Replacement - Upper Rear

Fender Bracket Replacement - Upper Rear

Removal Procedure

1. Remove the front fender.

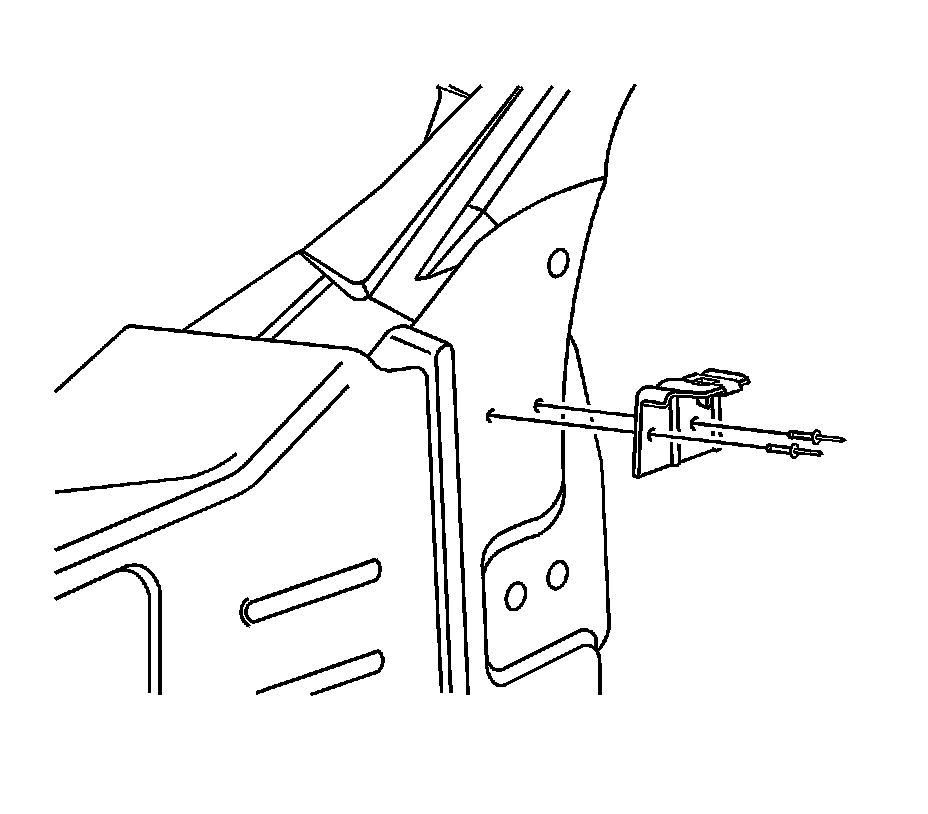

2. Remove the rivets attaching the upper bracket to the front hinge pillar.
3. Remove the upper bracket from the front hinge pillar.

Installation Procedure

1. Position the upper bracket to the front hinge pillar.
2. Install the rivets into the upper bracket and the front hinge pillar.
3. Install the front fender.
