Mirror Face Replacement

Mirror Face Replacement

Removal Procedure

Caution: Refer to Glass and Sheet Metal Handling Caution in Service Precautions.

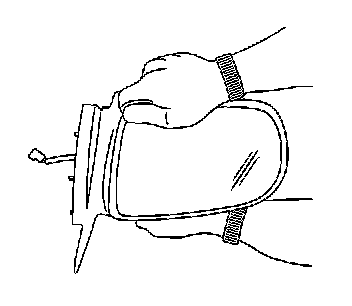

1. Use your fingers to grasp the inboard and outboard edgers of the mirror.
2. Carefully pull on the mirror face to disengage the attaching tabs from the housing.

Installation Procedure




1. Position the mirror face to the housing.
2. Snap the mirror face onto the housing.
