Front Seat Head Restraint Replacement

Front Seat Head Restraint Replacement

Removal Procedure




1. Press the head restraint guide button and raise the head restraint to the highest position.

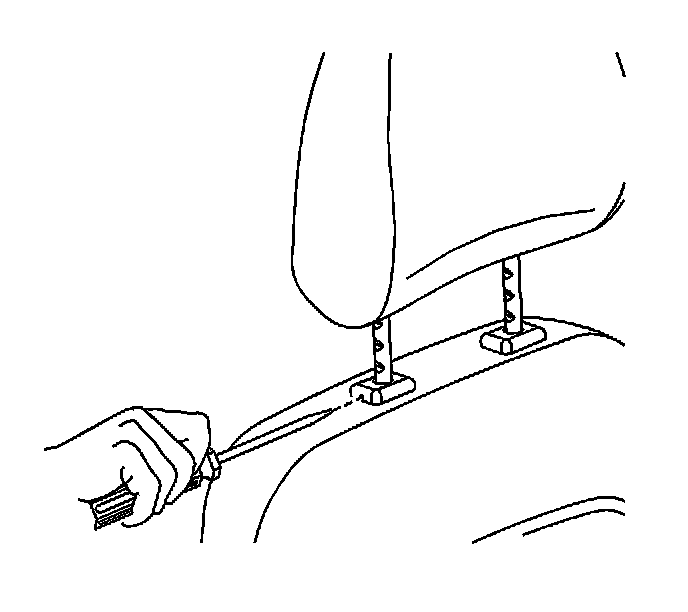

2. Remove the head restraint by inserting a small awl in the guide holes and lifting up on the restraint.

Installation Procedure

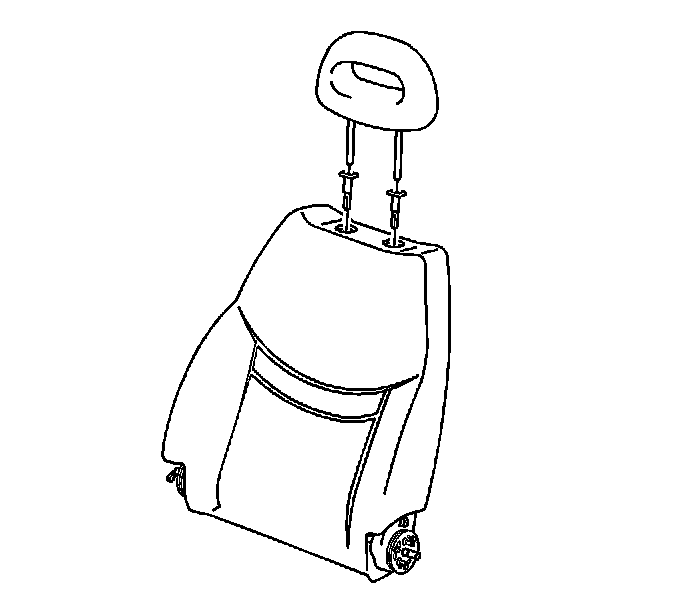

1. Position the head restraint above the seat back.
2. Push the restraint into the guide as far as the restraint will go.
3. Pull up on the restraint to ensure that the restraint is locked in the guide.
