Lumbar Replacement - Front Seat

Lumbar Replacement - Front Seat

Removal Procedure

1. Remove the seat back pad and cover.
2. Adjust the lumbar knob until the lumbar is at the position of the least support.




3. Remove the lumbar cable end from the lumbar unit by compressing the unit while lifting out the barrel end of the cable assembly.

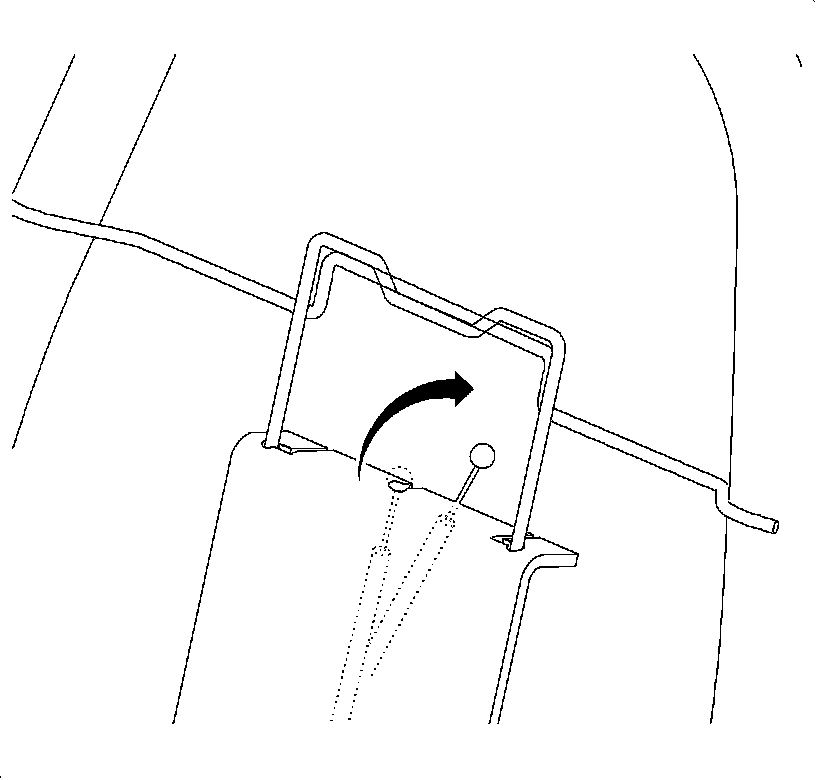

4. Using a flat-bladed tool, twist out the upper portion of the lumbar unit from the seat frame cross wire.




5. Remove the lower portion of the lumbar unit from the seat cross wire.
6. Remove the lumbar unit.

Installation Procedure




1. Install the lumbar unit to the lower portion of the seat back cross wire.




2. Position the lumbar unit to the upper portion of the cross wire. Using a flat-bladed tool, twist the lumbar unit over the cross wire assembly.




3. Compress the lumbar unit and connect the cable barrel end to the lumbar unit.
4. Adjust the lumbar unit to ensure proper operation.
5. Install the seat back pad and cover.
