Cruise Control Inoperative/Malfunctioning (non 2.0L)

Cruise Control Inoperative/Malfunctioning (non 2.0L)

Diagnostic Aids

Caution: Refer to SIR Caution.

Disable the inflatable restraint steering wheel module when performing this diagnostic table. Refer to SIR Disabling and Enabling.

* Ensure that the following cruise control switches are not stuck in the engaged position:

- On/off switch
- - SET switch
- + RES switch

* With a scan tool, observe the associated cruise control switch parameter in the Powertrain Cruise Control Data list, while rotating the steering wheel to both steering stops and separately activating each cruise control switch. This will help eliminate the possibility of an internally shorted inflatable restraint steering wheel module coil.
* For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test

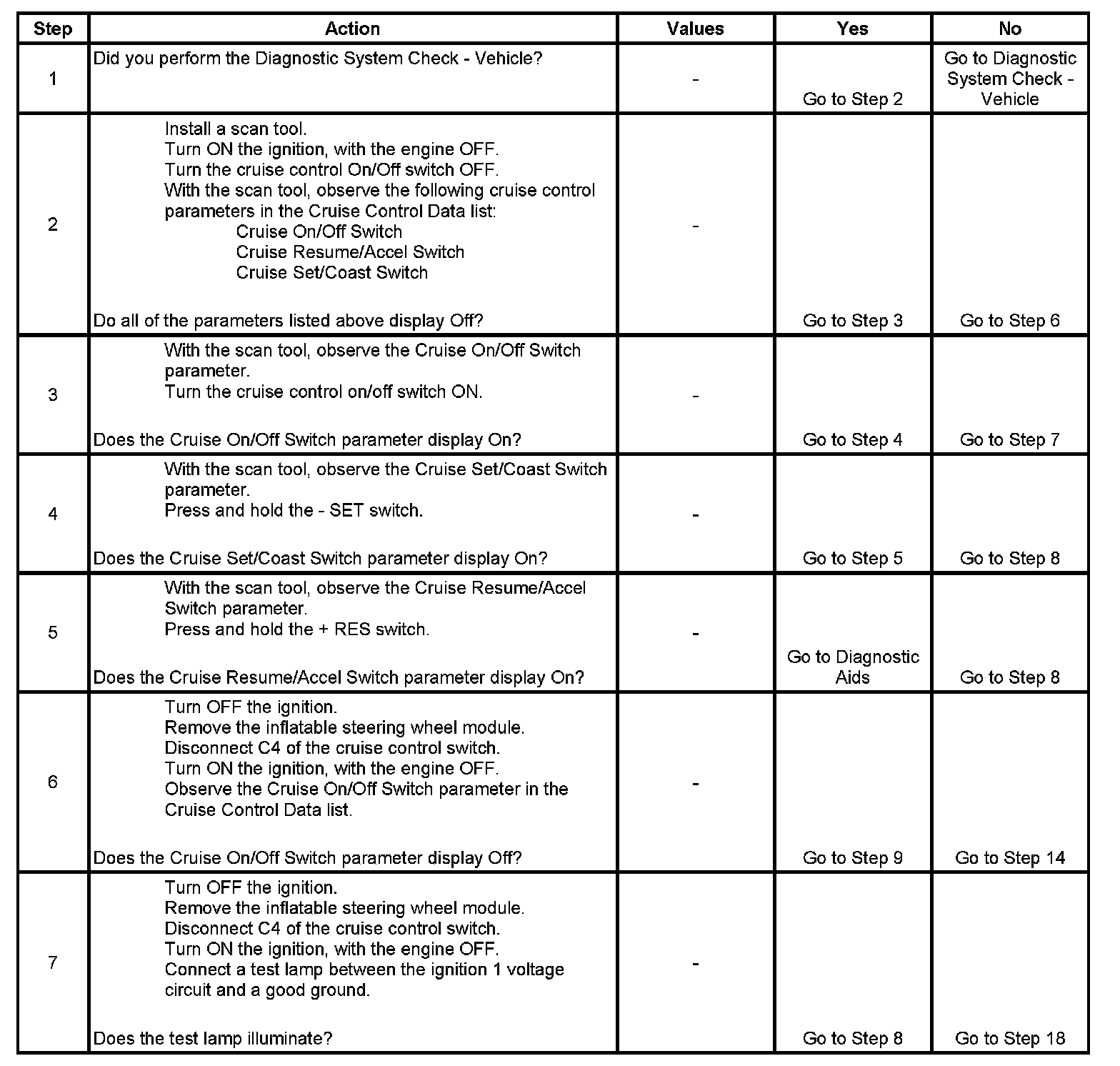

Step 1 - Step 7:

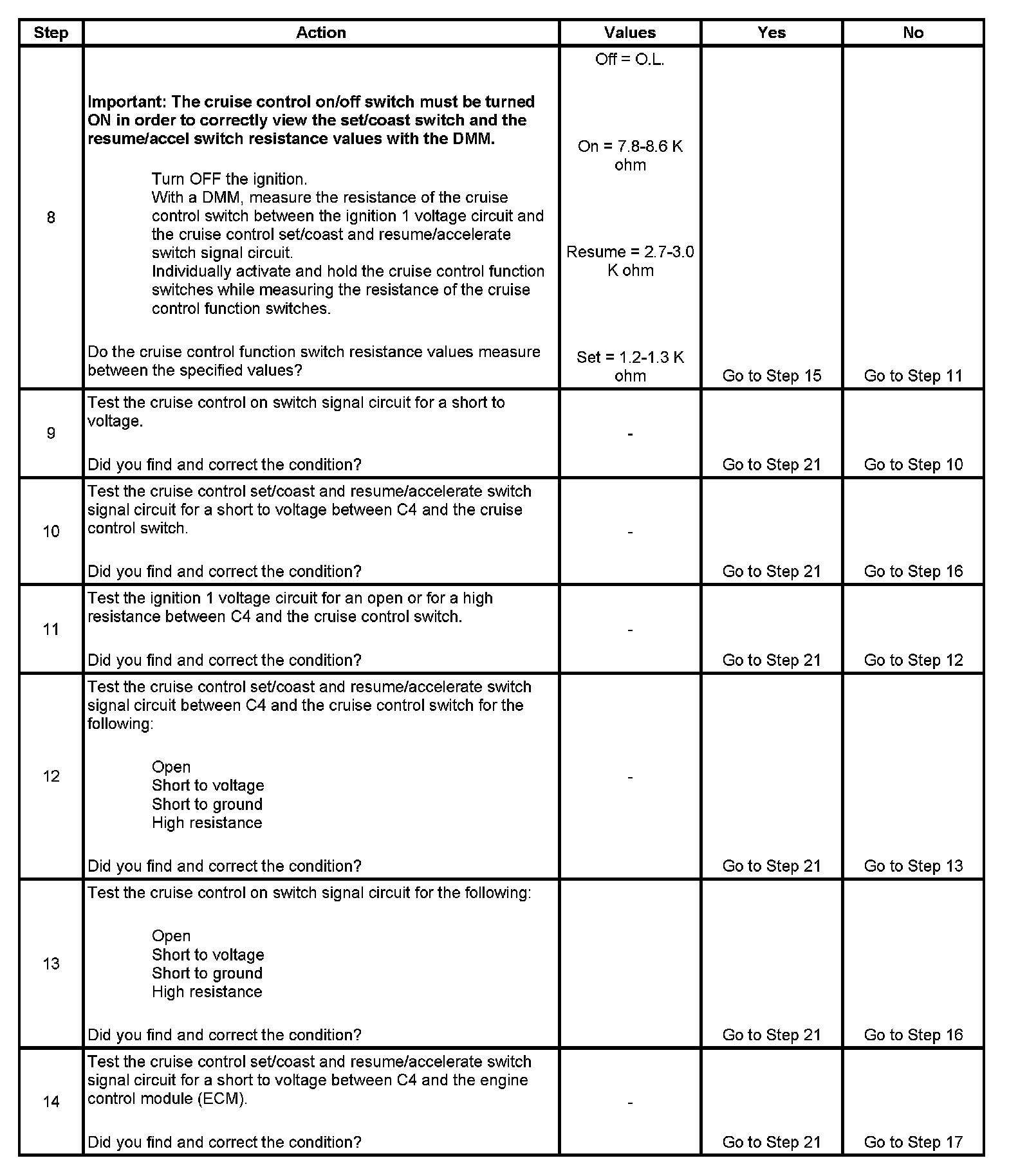

Step 8 - Step 14:

Step 15 - Step 21:
