Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

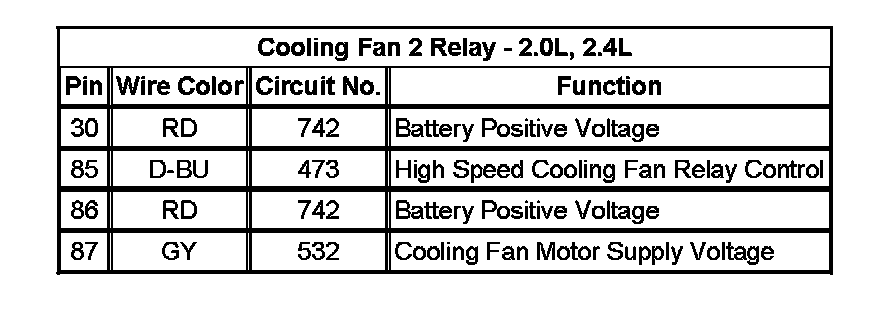

Cooling Fan 2 Relay - 2.0L, 2.4L
Cooling Fan 2 Relay - 2.0L, 2.4L:
