Information Bus

Data Communication Schematics

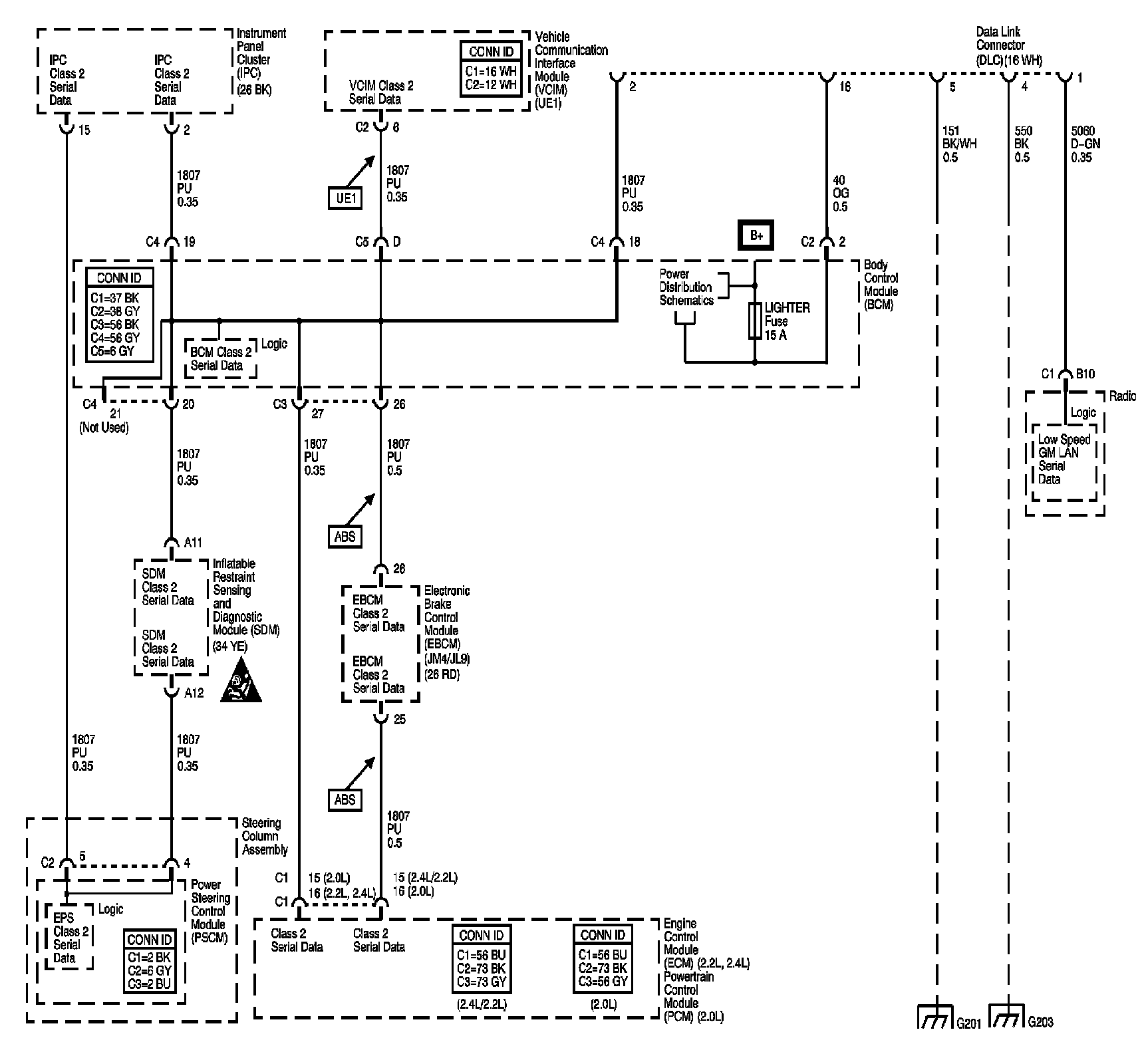

Power, Ground, Class 2, and Low Speed GM LAN

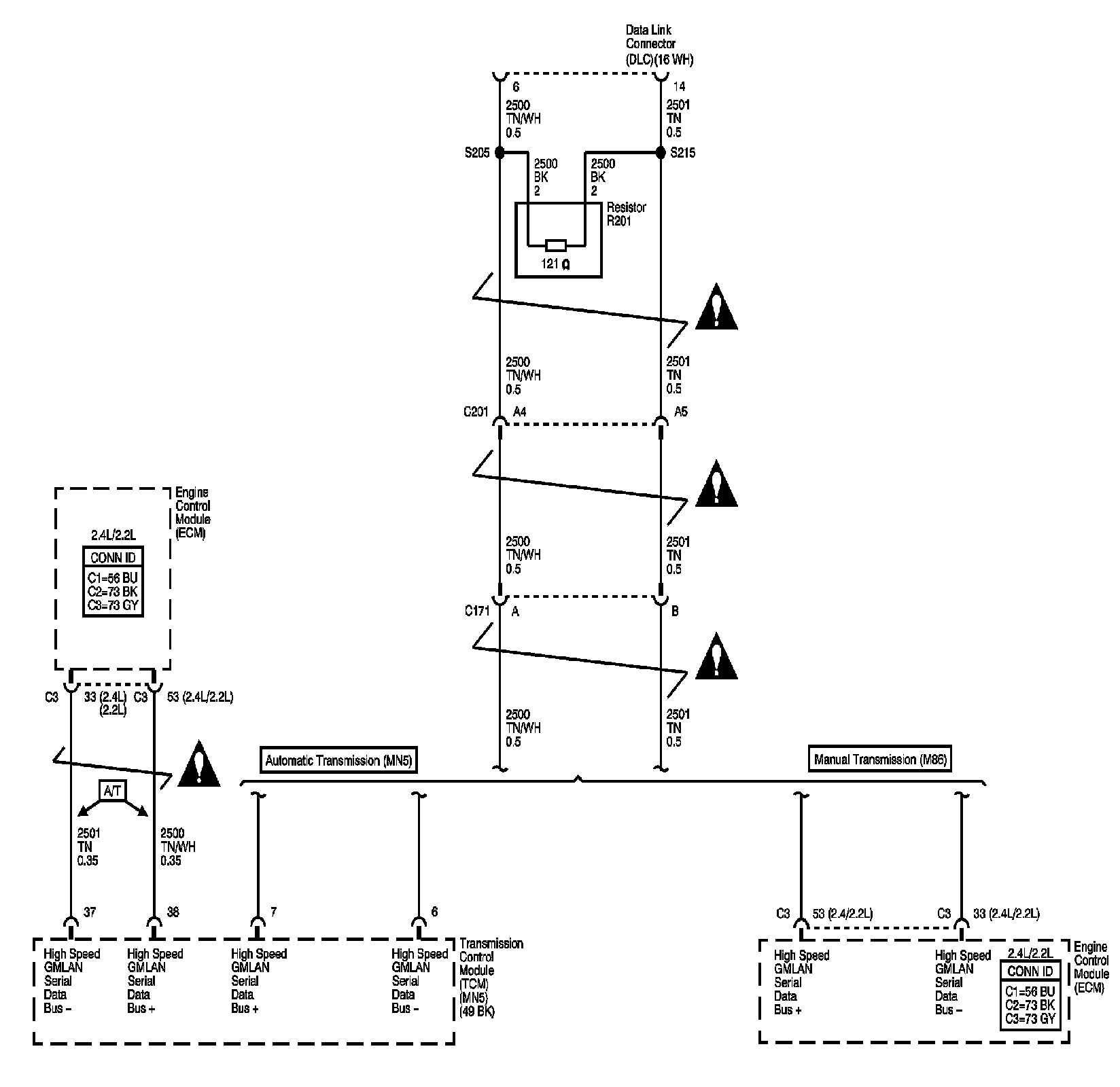

High Speed GM LAN - 2.2L, 2.4L






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
