Marker Lamp: Service and Repair

Marker Lamp Replacement - Front Side

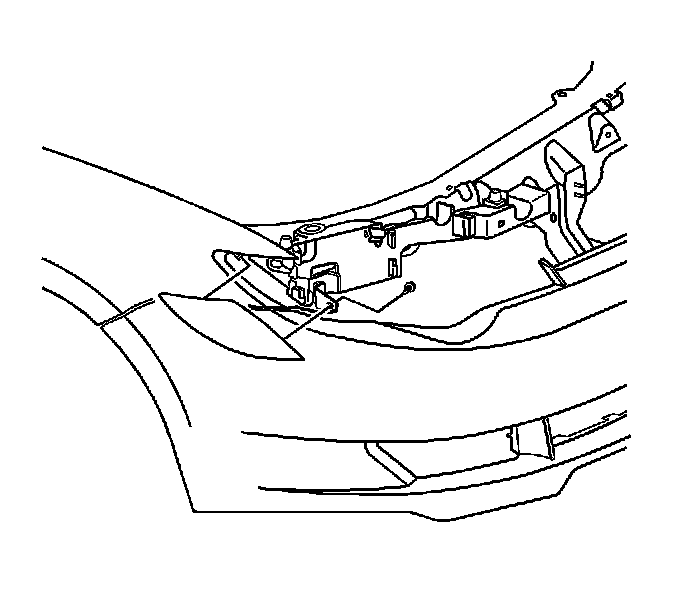

Removal Procedure

1. Open the hood.
2. Remove the headlamp assembly.




3. Remove the side marker bulb/socket from the housing by rotating the socket counterclockwise.
4. Remove the side marker retaining screw from the front of the lamp.
5. Slide the lamp forward. Remove the lamp from the fender.

Installation Procedure




1. Position the side marker lamp to the fender.

Notice: Refer to Fastener Notice.

2. Install the side marker lamp retaining screw.

Tighten the screw to 2.5 N.m (22 lb in).

3. Install the side marker bulb/socket into the lamp housing by rotating the socket clockwise.
4. Install the headlamp assembly.
5. Close the hood.
